10.1 inch 1920X1200 400nit VS101WUM-N20 IPS LCD Screen and Audio LVds Controller Board 45pin

LCD Controller Board: LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter: 12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <1WAudio Output: Speaker (4Pin PH1.25 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm10.1" VS101WUM-N20 1920X1200 LCD Screen:Display Mode AHVA, Normally Black, TransmissiveResolution 1920RGB)×1200Outline Size 229.45 × 149.2×5 (H×V×D)Display Area 216.81 × 135.5 (H×V) Brightness 400 cd/m² (Typ.)Contrast Ratio 900:1 (Typ.) (TM) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]Interface 45 pin LVDSBacklight WLEDInput Voltage 3.3V (Typ.)Packing list:1× LCD Controller Board VS-TY2660H-V6611× 10.1" VS101WUM-N20 1920X1200 LCD Screen1× Converter Board1× Cable1× Keyboard With Cable

• 【Screen parameters】IPS full viewing angle,Great resolution 1920x1200,outline size 229.45 × 149.2×5 (H×V×D)mm,display area 216.81 × 135.5(H×V)mm,400nit high brightness ,WLED backlight ,input voltage: 3.3 V .

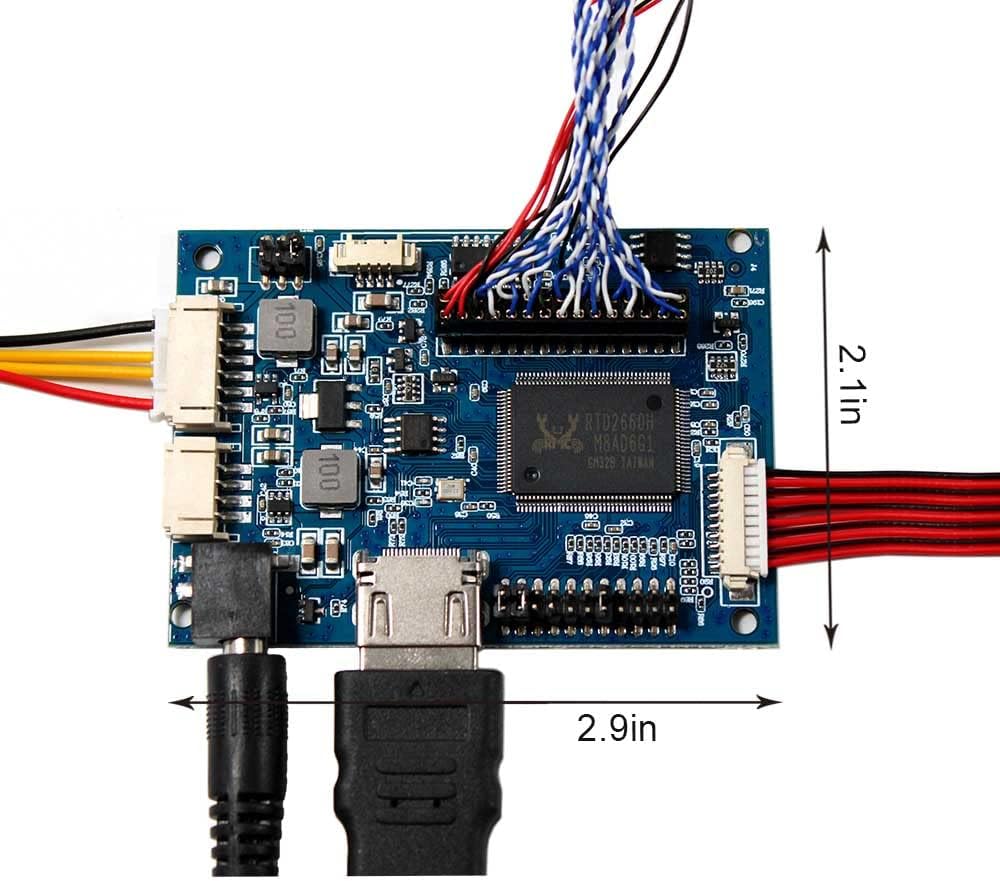

• 【LCD control board】Audio output :speaker (4Pin PH1.25 connector),board size: 74mm x 53mm x 12mm,pls use it in insulated environment.
• 【Input Power】12V DC 2A or more than 2A ,port size :5.5x2.1mm.Pls prepare the power adapter by yourself.

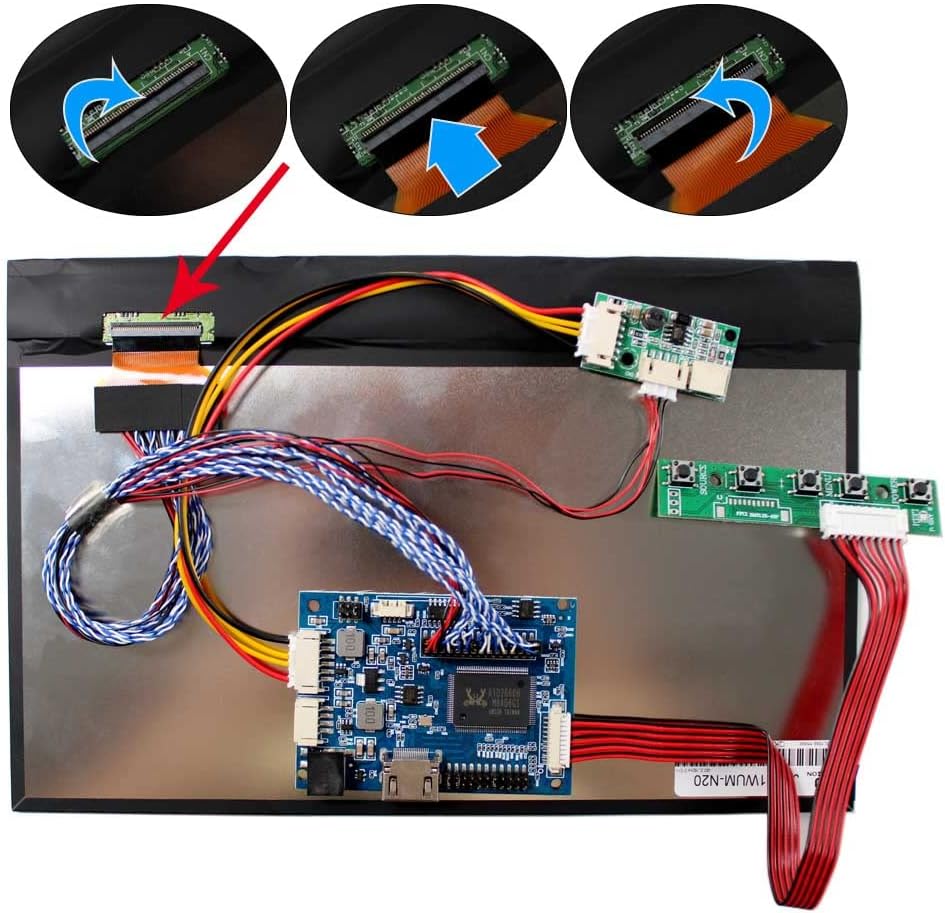

• 【Plug & Play】Connecting cables and ports according description pictures ,then power on and enter signal ,then the screen can show pictures well .
• 【Packing lists】1× LCD driver board VS-TY2660H-V661,1× 10.1" VS101WUM-N20 1920X1200 LCD Screen,1× converter board,1× signal cable,1× keyboard with cable
