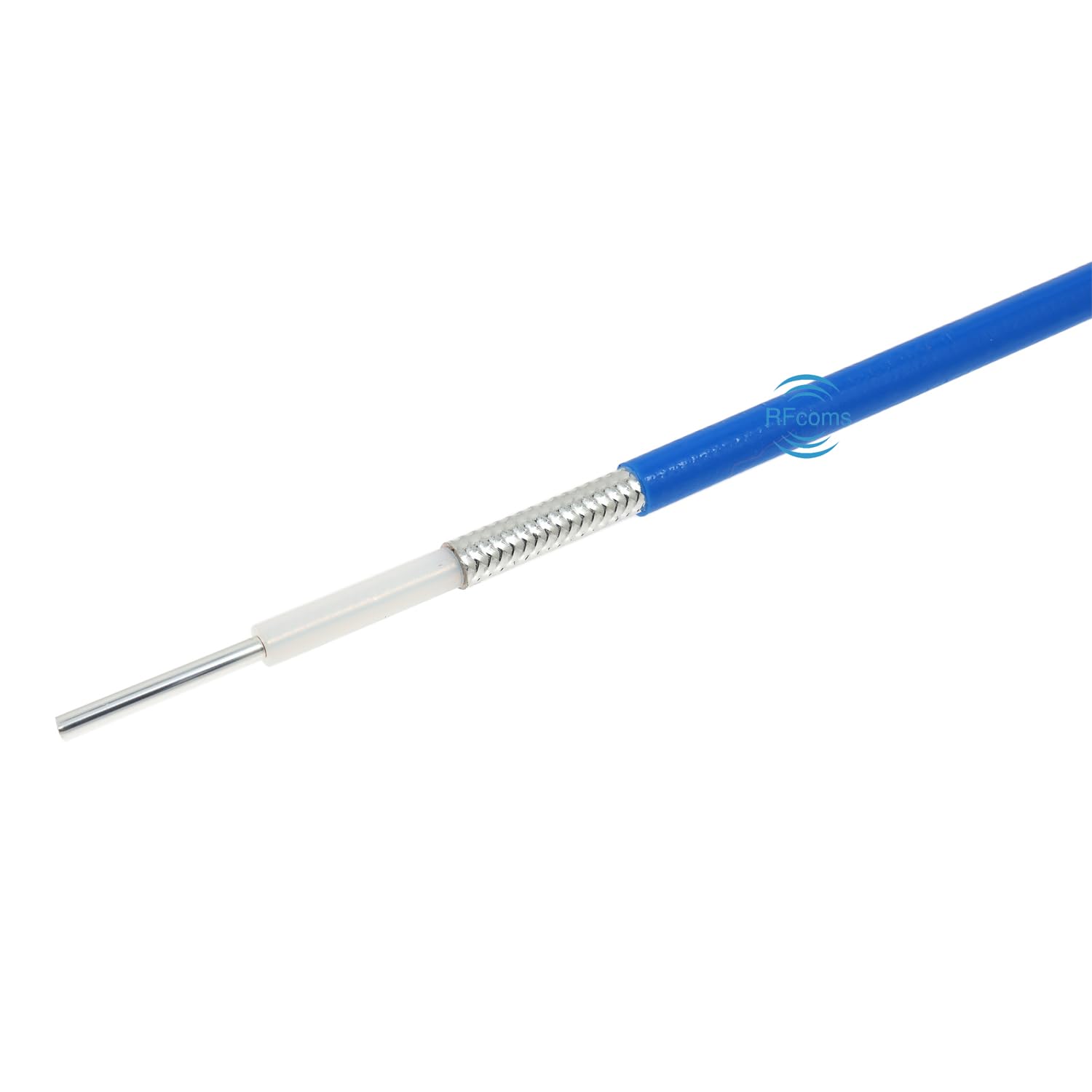

10FT 141-25 Semi Flexible Coaxial Cables MF402 RG402 .141'' 141 25 Ohm Semi-Flexible 0.141 inch 25ohm RF Coax Cable with FEP Blue Jacket in Coil

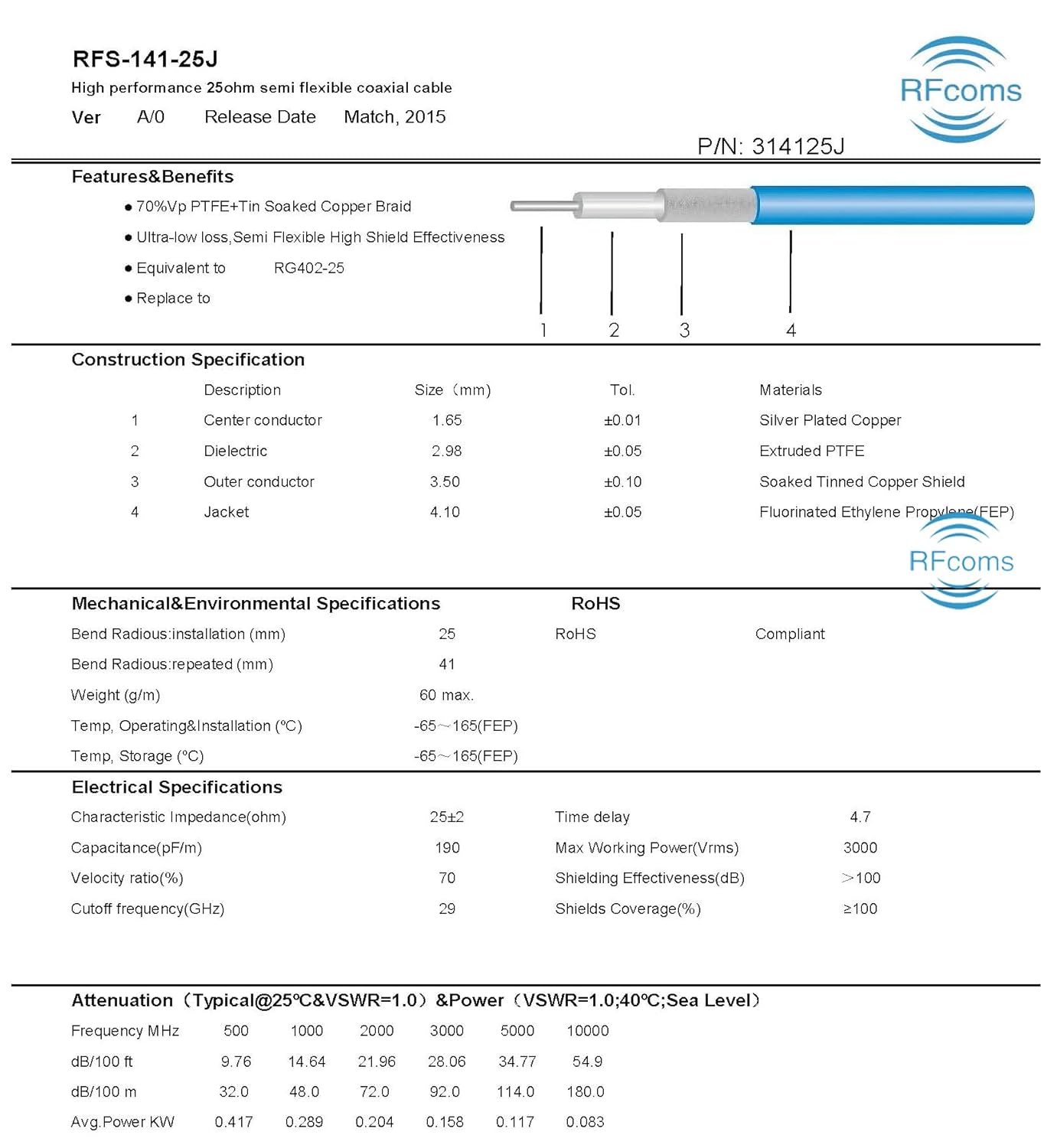

RFcoms 10FT 141-25 Semi flexible Coaxial Cables MF402 RG402 .141'' 25 Ohm Semi-Flexible 25ohm RF Coax Cable with FEP Blue Jacket -10feet in coil RFcoms (141-25) Semi-Flexible coaxial cable with FEP Blue jacket Inner Conductor Silver-plated Copper; Silver-plated Copper Clad Steel 1.65mm Insulation Layer Polytetrafluoroethylene(PTFE) 2.98mm Outer Conductor Tin overcoated Copper Wire Braiding 3.50mm Jacket Fluorinated Ethylene Propylene(FEP) 4.10mm Electrical Data Impedance, nominal 25 Ohm Velocity of propagation,nominal 70% Signal delay, nominal 4.7ns/m Capacitance, nominal 190pF/m Insluation Resistance,nominal 1500MΩ·km Mechanical Data Temperature Rating -65~150℃ Minimum Bending Radius(for bending once) 25mm Minimum Bending Radius(for bending repeat) 46mm Package included: 10Ft Semi flexible 141-25 Coaxial Cable in coil

• RFcoms 141-25 Semi flexible Coaxial Cables MF402 RG402 .141'' 25 Ohm Semi-Flexible 17ohm RF Coax Cable with Blue FEP Jacket, offer an excellent signal integrity and low signal attenuation, suitable for a wide range of wireless and microwave applications.
• The RF-141-25 is a 25-ohm coaxial cable with an outrer conductor diameter of 0.141 inches and a voltage rating of up to 3000 Vrms/min. It has an internal silver-coated copper-clad steel (SCCS) conductor (carrying the electrical signal), which is enclosed by an insulation layer made of Polytetrafluoroethylene (PTFE).
• RF Cable exhibits capacitance of approximately 190 pF/m.
• The velocity of propagation of 70%. signal delay: 4.7ns/ms, an ideal for use in radio frequency communications in the gigahertz range, microwave circuits, and radar etc.
• Operating temperature of -65˚C to + 150˚C.
• Package included: 10Ft Semi flexible RG402 .141" 25Ohm cable in coil
