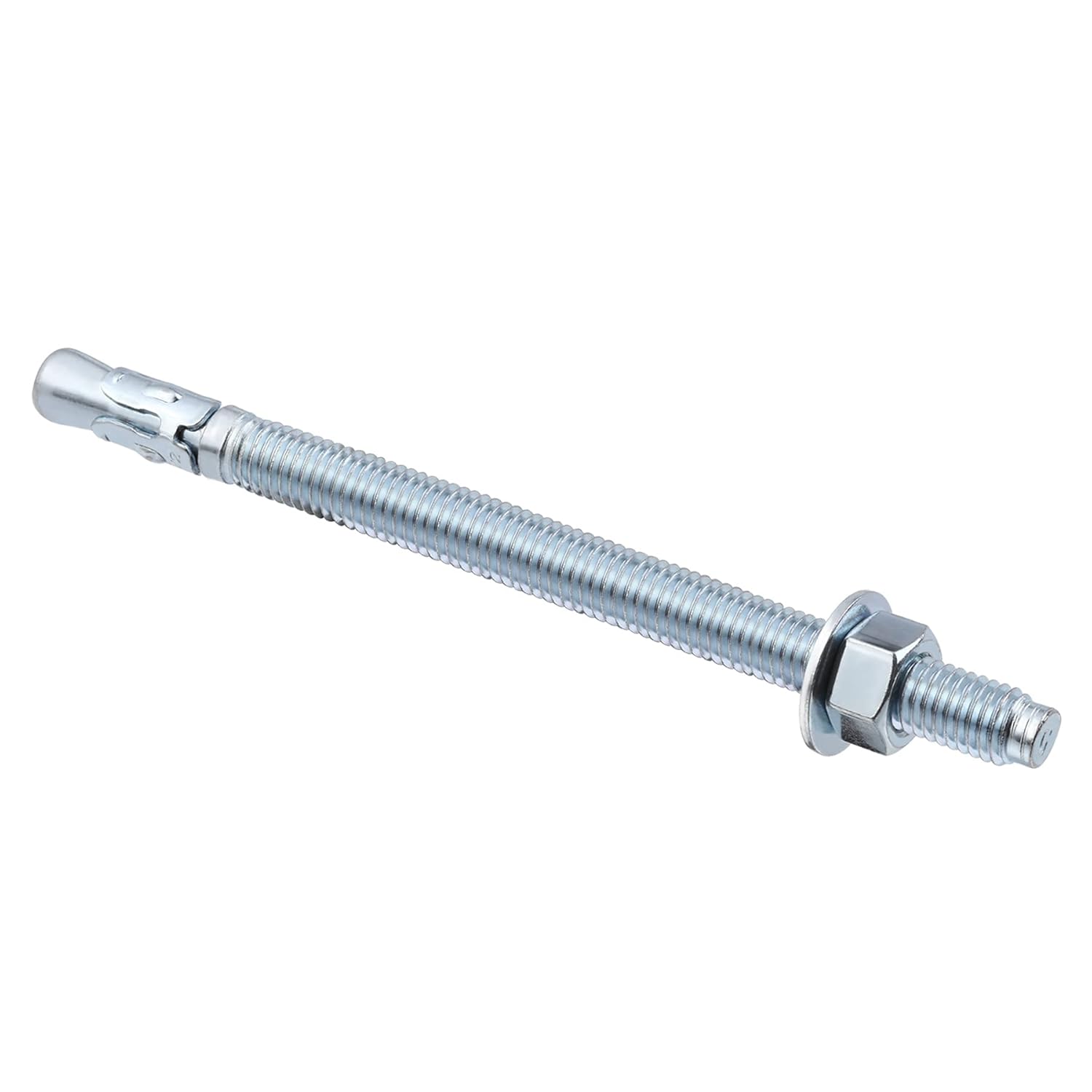

1/2 inch x 5-1/2 inch - 40 Pieces Wedge Anchor Zinc Plated Heavy Duty Fastener for Concrete

ApplicationThe Anrik wedge anchor is made from high quality carbon steel, and is zinc plated. The concrete anchor is a torque-controlled, wedge expansion anchor for heavy duty fastening applications where high pull out values in concrete are needed. It is for Concrete only, not for block or brick base materialDiameter of AnchorThe diameter of the anchor is 1/2"Length AnchorThe length of the anchor is 5-1/2"Quantity: 40 piecesDrill Bit Diameter/Hole DiameterDrill bit diameter is the same as anchor diameter. Use a 1/2" drill bit to drill a hole in the base material (Concrete only) Thread LengthThe length of the threads on the anchor is 3-3/4" in lengthMinimum Embedment DepthThe minimum embedment depth into the concrete is 2-1/4"Torque ValueThe required installation torque of the anchor is 40 ft/lbsMaximum fixture thicknessThe maximum fixture thickness or the maximum thickness of the material being fastened for the anchor is 3-1/4". This will ensure that the minimum embedment depth of 2-1/4" will be met

• Wedge anchor diameter: 1/2" | Length: 5-1/2" | Qty: 40 pieces. Our wedge anchor is made from high quality carbon steel, and is zinc plated to prevent rust
• Drill bit diameter/Hole diameter is the same as anchor diameter. Use a 1/2" drill bit to drill a hole in the base material (Concrete only)
• The wedge anchor is a torque-controlled, wedge expansion anchor. The required installation torque of the anchor is 40 ft/lbs.
• The concrete anchor is for heavy duty fastening applications where high pull out values in concrete are needed. It is for concrete only, not for block or brick base material
• The wedge anchor is used in fastening sheet metal, steel and aluminum angles, or wood to concrete. The wedge anchor is ideal for structural anchorage, storage racking anchorage, machinery and hand rails installation
