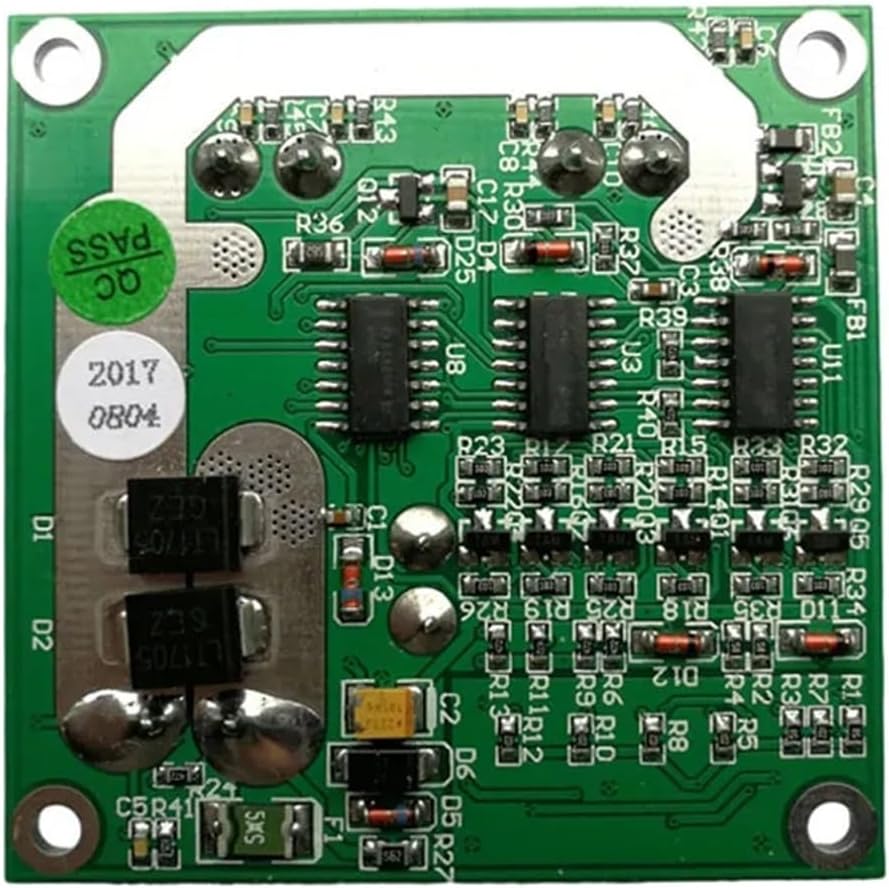

12V 24V Motor Drive Board H-bridge Motor Speed Controller Module Forward Reverse Rotation Motor Controller for Smart Car

Generators12V 24V Motor Drive Board H-bridge Motor Speed Controller Module Forward Reverse Rotation Motor Controller for Smart CarThe H-bridge module uses gate circuit and MOS tube to realize positive and negative motor rotation, braking and speed control. It has both large output current and flexible control signal logic similar to L298.Features:Tiny size, only 5.5cmx 5.5cm.Support voltage 6.5V~27V, undervoltage protection, power supply transient interference suppression.Dual motor interface, each rated output current 7A.Similar to the L298 control logic, each support three-wire control enable, reverse and brake.The enable signal can be connected to PWM externally, and the forward and reverse control signal can be connected to the limit switch in series.The control signal uses the irrigation current drive mode, which supports the majority of single-chip microcomputer direct drive.All control signals are isolated by optical coupling.There's an electrostatic discharge loop.Specifications:Power supply voltage range: 6.5V~27VRated input voltage: 12V/24VNumber of output channels: 2 wayRated output current per channel: 7APeak current per channel: 50AMaximum adaptive motor: 12V~40W 24V~120WControl signal voltage range: 3~6.5VEach control signal current: 3~ 11mASupported PWM range: 0~Support PIM frequency range: 0~10kHzOperating temperature: -25~80Overall dimensions: 5.5cmx5.5cmx1.4cmNote: 1. Due to the light and screen difference, the item's color may be slightly different from the pictures.2. Please allow 1-3cm differences due to manual measurement.Package Included:1x Motor Drive Board==========Motor Type : Motor
