12V DC Worm Gear Motor 24V High Torque Motor Permanent Magnet Reversing Gear Box Door DC Motor(470 RPM,DC 24V)

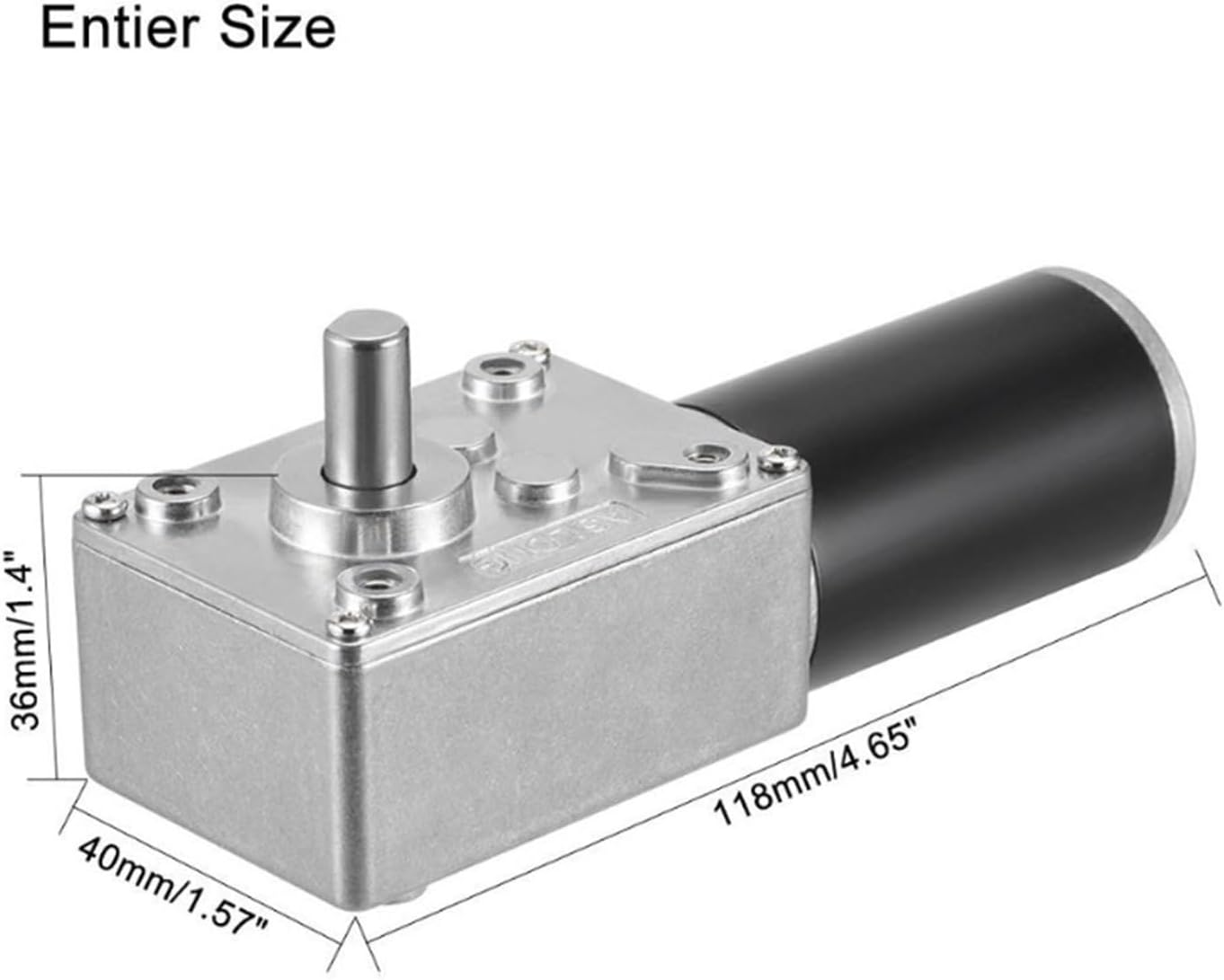

MotorsBrief introduction of motor specifications:1. Motor name: A58SW31ZY powerful high worm gear torque motor2. The rated voltage is DC 12V and DC 24V3. DC 12V; 24V; no-load speed can be selectedVoltage: DC12V DC24VNo-load speed: 7/10/12/16/27/40/80/160/260/470RPM4. It is recommended that your engineering load should not exceed the rated torque; Select the no-load speed under DC 12V and 24V, there will be corresponding rated torque and stall torque, please refer to the parameters in the table below.5. Motor rotation direction: CW or CCW, support reverse;Control the clockwise or counterclockwise rotation of the motor by changing the connection mode of the positive and negative poles6. Gear material: metal gear, so that the life of the motor is longer7. Motor shaft shape: threaded shaft, please refer to the size table below for each size of the motor.8. The motor is suitable for various automation equipment. As long as you confirm that the motor voltage and torque you choose are suitable for the voltage and load of your project before purchasing, there is no limit to the range of use of this motor.For example, curtains; billboard motors; household appliances, etc.9. The noise standard when the motor is working.
