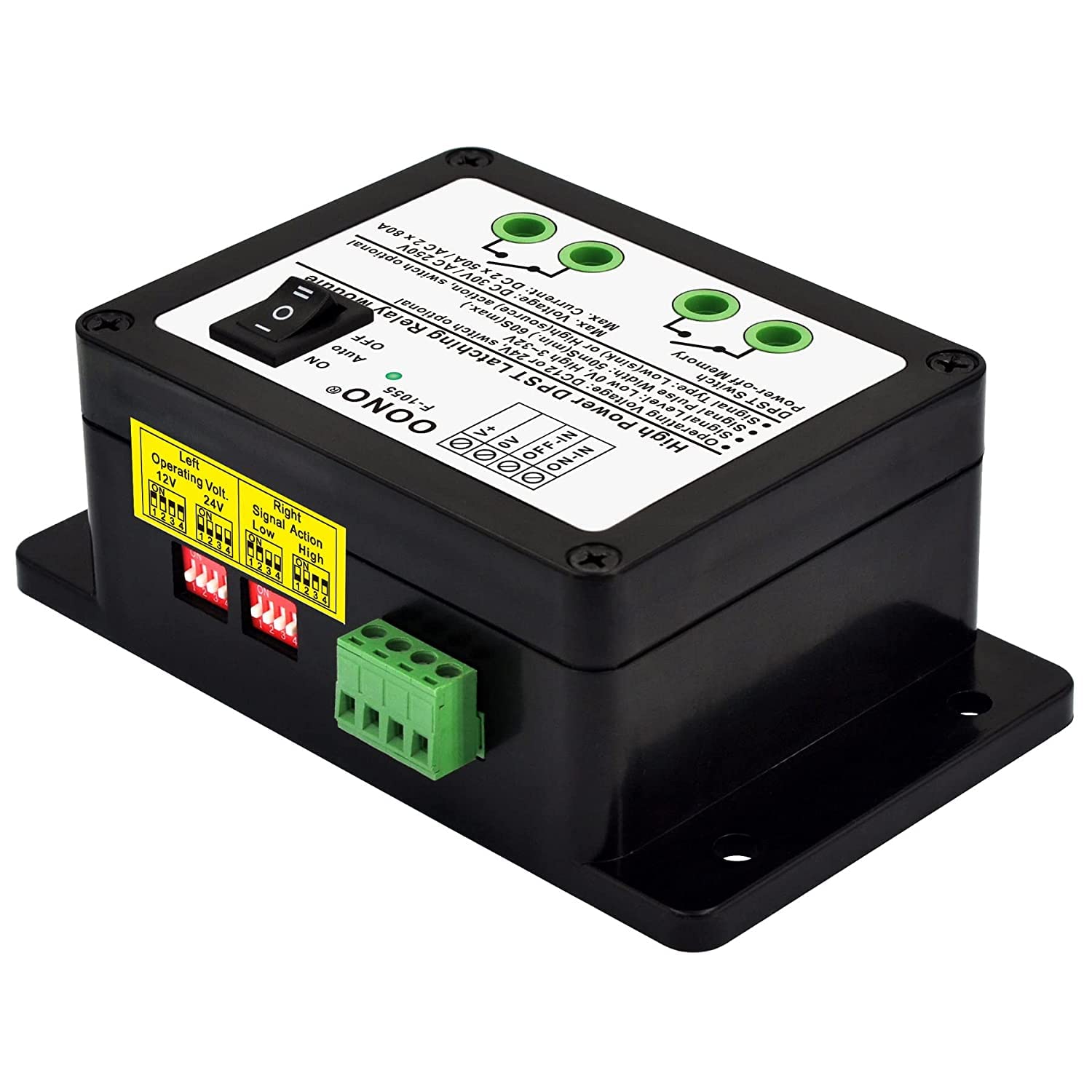

12V/24V DPST 80A/250VAC 50A/30VDC Latching Relay Module
5.0 (38 items)
Limited Time Sale$35.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211059289 | Release Date | 2026/04/04 | List Price | $23.60 | Model Number | 211059289 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: 1, If you are looking for a latching relay with power-off memory, then this module will be very suitable for you. Even if the operating power is turned off, the status of the output switch will not be affected in any way, it will remain in the state before the power was turned off. 2, Output switch DPST (Double Pole Single Throw). Rated current/voltage AC 80A/250V or DC 50A/30V (each switch channel). 3, Operating voltage support DC 12V / 24V, the red DIP switch on the side can be set. 4, Support signal High or Low action, the red DIP switch on the side can be set. Can support multiple types of controllers, Raspberry Pi / Arduino / ESP32 / BeagleBone / PLC / MCU / DSP etc, of course you can also directly connect two momentary switches. With override switch function, override switch setting to ON or OFF, external control signals will be invalid. 5, Screw-type terminal blocks facilitate the connection of cables. The ABS plastic shell ensures better electrical insulation. Specifications: Operating Voltage: DC 10 - 16V(at 12V mode), DC 20 - 32V(at 24V mode), switch optional. Operating Current: 0.3mA Quiescent, override switch set to AUTO. 0.6mA Quiescent, override switch set to ON or OFF. 350mA, when the control signal pulse action. duration is the same as the control pulse signal width time. Control Signal Voltage: Low level 0 ~ 0.5V, High level 3 ~ 32V Control Signal Current (Low action mode): 0.5mA Control Signal Current (High action mode): 0.25mA/3.3V, 0.43mA/5V, 1.2mA/12V, 2.3mA/24V Control Signal Type: High or Low action, switch optional. Control Signal Pulse Width: 50mS / min, 60S / max. Switch Rated Voltage: AC 250V, DC 30V Switch Rated Current: AC 80A, DC 50A (each switch)
- If you are looking for a latching relay with power-off memory, then this module will be very suitable for you. Even if the operating power is turned off, the status of the output switch will not be affected in any way, it will remain in the state before the power was turned off.
- Output switch DPST (Double Pole Single Throw). Rated current/voltage AC 80A/250V or DC 50A/30V (each switch channel).
- Operating voltage support DC 12V / 24V, the red DIP switch on the side can be set.

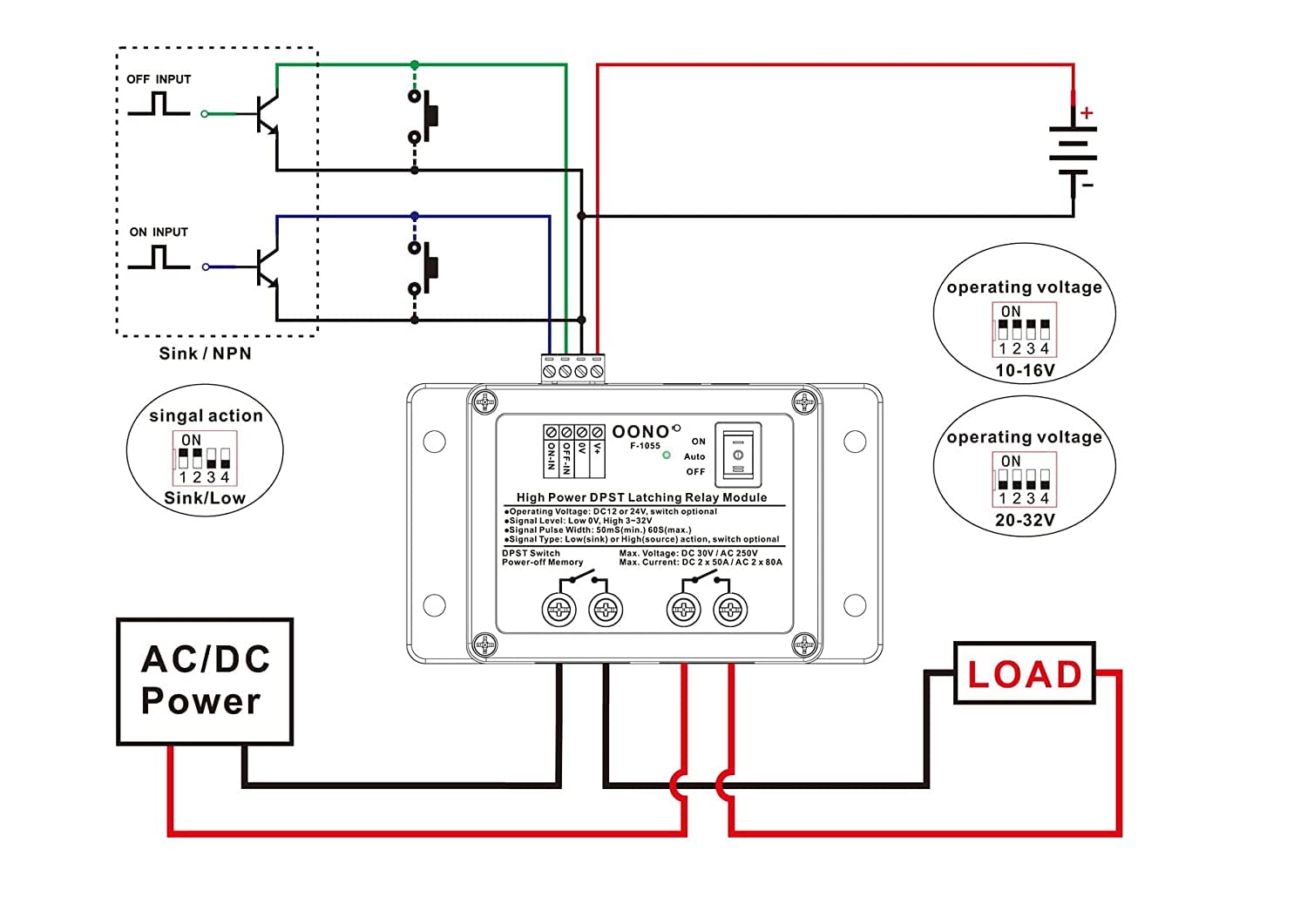

- Support signal High or Low action, the red DIP switch on the side can be set. Can support multiple types of controllers, Raspberry Pi / Arduino / ESP32 / BeagleBone / PLC / MCU / DSP etc, of course you can also directly connect two momentary switches. With override switch function, override switch setting to ON or OFF, external control signals will be invalid.
- Screw-type terminal blocks facilitate the connection of cables. The ABS plastic shell ensures better electrical insulation.
| Model | F-1055 |
|---|---|
| Brand Name | OONO |
| Part Number | F-1055 |
| Coil Voltage | 24 Volts |
| Contact Type | Dpst-dt (Double Pole Single Throw) |
| Manufacturer | CZH-LABS |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Current Rating | 80 Amps |
| Operation Mode | Off |
| Contact Material | Silver |
| Specification Met | Ma |
| Contact Current Rating | 50 Amps |
| Maximum Switching Current | 80 Amps |
| Minimum Switching Voltage | 0.5 Volts (DC) |
