14 Inch TFT LED IP65 Industrial Panel PC, 10-Point Projected Capacitive Touch Screen, Intel J1900, PW09, VGA, 4 x USB, LAN, 3 x COM, 0 RAM, 0 Storage, Barebone No System
4.5 (44 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212363054 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212363054 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system Model Number: HUNSN PW09 Panel: 14" TFT LED panel, front panel protection IP65 CPU: Intel Celeron Processor J1900 2M Cache, up to 2.42 GHz Memory: 1 x SODIMM DDR3L 1333, max. to 8GB RAM Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD I/O: 12V DC, VGA, 3 x COM, USB3.0, 3 x USB2.0, LAN, AUDIO-IN&OUT, POWER_SW Expansion: Mini PCIE slot for WiFi/4G, with sim slot Watchdog Timer: 255 Cooling System: Aluminum alloy, fanless Dimension: 346.3 x 231.3 x 42.7mm Weight: 2.55kgs Opening Hole: 340.3 x 225.3mm Resolution: 1600 x 900 Perspective: 45L, 45R, 15T, 35B Brightness: 200cd/m2 Contrast: 400 Backlight Life: 10,000 hours min. Touch Screen: 10-point projected capacitive touch screen Transmittance: 86±5% at 550 nm wavelength Durability Touch Count: 200 million times Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD Storage Temperature: -20 ℃ ~ 60 ℃ Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation EMC/Safety: CCC Power Supply: DC100-240V AC/50-60Hz, 12V Packing List: HUNSN PW09 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card System Support: Windows 10/11, Linux Ubuntu etc
- 14 inch tft led industrial grade touch panel pc, front panel protection IP65, 10-point projected capacitive touch screen, typical 1600 x 900 resolution, powered by intel celeron quad core j1900 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Aluminum alloy fanless passive cooling design, silent solution that’s ultra energy-efficient

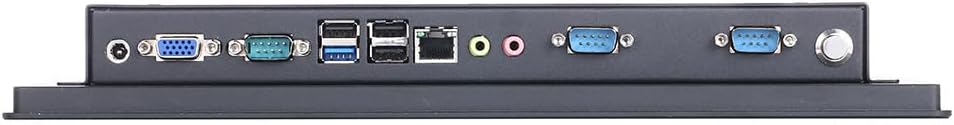

- HUNSN PW09 designed with 12v dc, vga, 3 x com, usb3.0, 3 x usb2.0, lan, audio-in&out, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
- Size at 346.3 x 231.3 x 42.7mm, 2.55kgs, 12v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance
| Brand | ANDAQI |
|---|---|
| Color | black |
| RAM Type | SODIMM |
| Model Name | PW |
| Resolution | 1600 x 900 |
| Style Name | Celeron J1900 |
| Item Weight | 2.55 Kilograms |
| Screen Size | 14 Inches |
| Aspect Ratio | 16:9 |
| Display Type | LCD |
| Manufacturer | Shen Zhen Shi An Da Qi Ke Ji You Xian Gong Si |
| Model Number | PW09 |
| BuiltIn Media | Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card |
| Cooling Method | Fanless |
| Item Type Name | HMI |
| Processor Brand | Intel |
| Processor Count | 4 |
| Processor Speed | 2 GHz |
| Total Usb Ports | 4 |
| Video Processor | Intel |
| CPU Model Number | Celeron J1900 |
| Processor Series | Celeron |
| Processor Socket | FCBGA1170 |
| Native Resolution | 1600 x 900 |
| Compatible Devices | Camera,Desktop,Gaming Console,Laptop,Smartphone,Speaker,Tablet |
| Hardware Interface | Ethernet |
| Hard Disk Interface | Solid State |
| Graphics Coprocessor | Intel HD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Touch Pad |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR3L |
| Memory Slots Available | 1 |
| Connectivity Technology | Powerline |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 8 GB |
| Ram Memory Maximum Size | 8 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 1600x900 Pixels |
