15 inch 1024x768 LQ150X1LW73 IPS LCD Screen and VGA DVI Controller Board,for Industrial Monitor Display,with Location Holes

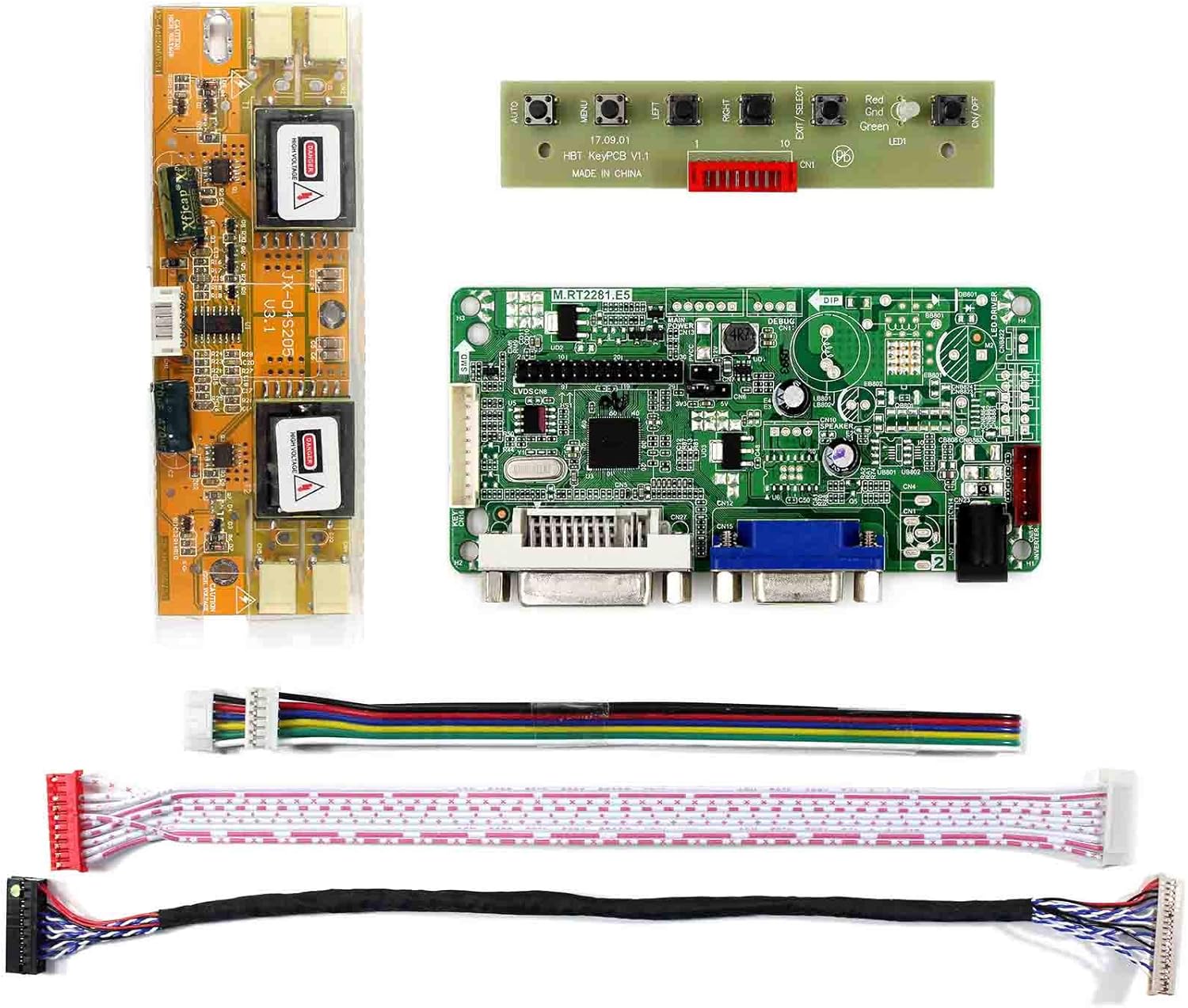

LCD Controller Board: DVI VGA LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter: 12Vdc More than 2A,port size : 5.5x2.1mmCome In Standby Model When Not Input SignalStandby Model <1WVideo Input: DVI VGAOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 125mm x 58mm x 17mm15" LQ150X1LW73 1024X768 LCD Screen:Display Mode ASV, Normally Black, TransmissiveResolution 1024RGB)×768Outline Size 331.6× 254.7×13(H×V×D)Display Area 304.1 × 228.1 (H×V)Brightness 350 cd/m² (Typ.)Contrast Ratio 600:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]Interface LVDS (1 ch, 8-bit) , 20 pins , ConnectorBacklight 4CCFLInput Voltage 3.3V (Typ.)Packing list:1× VGA+DVI LCD Controller Board 1× 15inch LQ150X1LW73 1024X768 LCD Screen1× 4 CCFL Inverter Board1× LVDS Cable1× Keyboard With Cable(Pls prepare the power supply by yourself)

• 12.5" 1080P WLED backlight square display ,Transmissive,full viewing angle with good color effect,display area 276.48× 155.52 (H×V)mm,brightness 300nit,Contrast Ratio 700:1,,eDP 30pin interface.
• Video input:H/D,Audio Output: Earphone ,The function for this board is to light up the screen. Please use in insulated environment.
• Input power supply:12V DC more than 2A ,port size :5.5x2.1mm (power adapter not included in package,pls prepared by yourself).
• Connecting cables and ports according to link picture,the screen can work well after powering.If there is any problem,Pls provide some connecting pictures, we will give you best solution in 12 hours.
• Packing lists: 1×LCD Controller Board VS-RTD2556H-V1,1× 12.5inch 1920X1080 LCD Screen,1× Cable,1× Keyboard With Cable
