150A MPPT Solar Charge Controller,12V/24V/36V/48V/96V Auto,Max Input 150V LCD Display Regulator Intelligent Regulator Charge Controller

Item:ICharger MPPT 10048Charging Mode: 3-stage: Constant Current(MPPT),Constant Voltage, FloatingSystem Voltage: 12/24/36/48/AutoMax PV Input Power:1500W/12V; 3000W/24V4500W/36V; 6000W/48VMax PV Input Voltage :150 VocBattery Voltage Automatic Recognition:12V System(DC8.7V-DC15.5V),24V System(DC16V -DC31V)36V System(DC33V -DC41V),48V System(DC42V -DC64V)Overcharging Protection Voltage: 12V System(16V),24V System(32V) 36V System(48V),48V System(64V)Limited Current Protection: 100AMax Efficiency ≥98.1%PV Utilization ≥99%Auto TemperatureCompensation -3mV/2V/ºCProtection FunctionTemperature Protection 80℃Fan-on Temperature >45℃Fan-off Temperature <40℃PropertiesSize(mm) 252*201*80.3Net Weight(Kg) 2.49ElectromagneticCompatibility Accord to EN61000, EN55022, EN55024Enclosure IP21Environmental Temperature -20℃~+55℃Storage Temperature -40℃~+75℃

• 150A MPPT charge controller: 4-level battery charging algorithm for fast, efficient, safe charging (bulk charging, boost charging, float charging and equalizing), 150 amp rate charging current.
• High efficiency: The solar controller adopts the latest optimized MPPT technology, which can quickly track the maximum power point of the photovoltaic array in any environment and obtain the maximum energy of the solar panel in real time. The photovoltaic utilization rate is ≥99% and the maximum efficiency is ≥98.1%. Can be used in a wide range of applications, such as solar RVs, solar household systems, etc.
• Multiple protection: The solar charge controller is compatible with 12V/24V/36V/48V/96V batteries and has short circuit protection, open circuit protection, reverse protection, and overload protection. Intelligent MPPT algorithm improves system efficiency, three-stage charging optimization and extends battery life.
• Wide battery compatibility: 150A solar controller is compatible with 12V, 24V, 36V, 48V,96V photovoltaic systems, and can automatically identify the system voltage, with a maximum charging current of up to 150A; supports a variety of lead-acid batteries, including flooded, AGM, GEL, lithium-ion battery

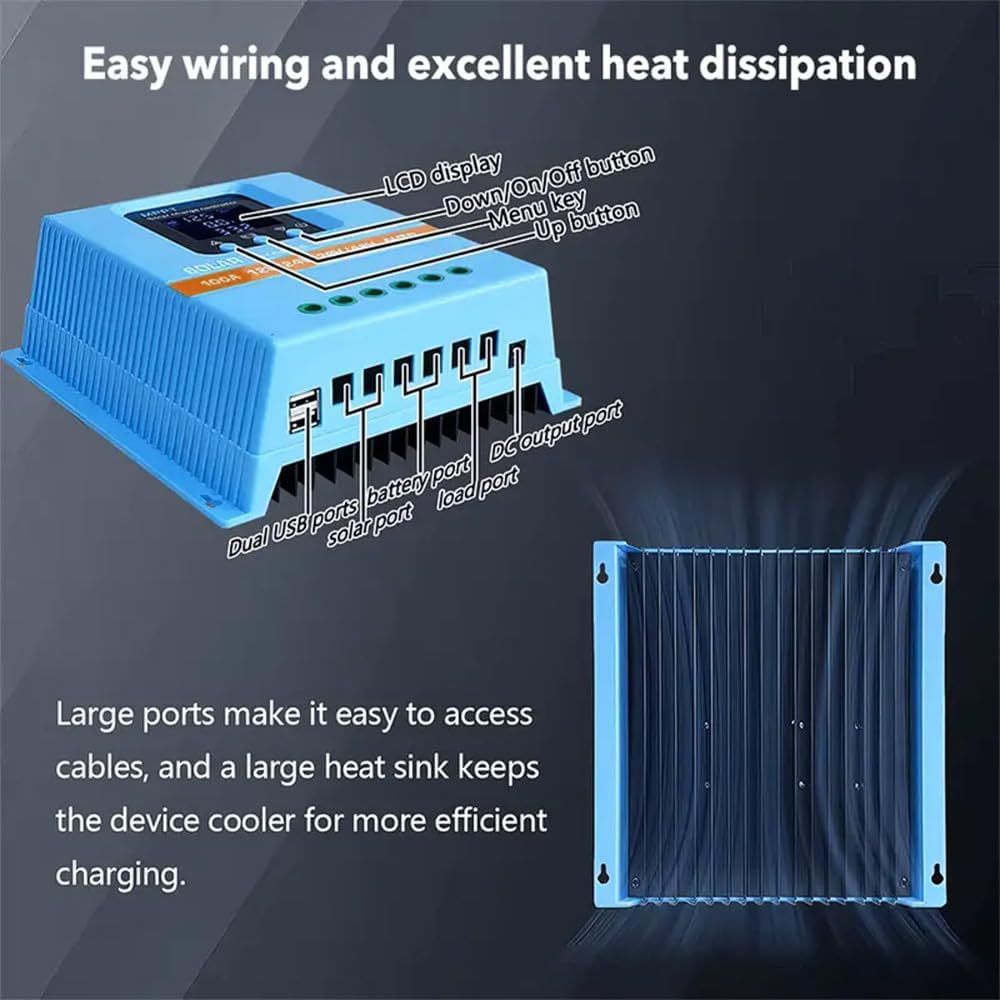

• LCD display: The display of the 150Amp solar controller can clearly see the operating data and working status. With LCD display and 4 buttons, it is convenient to dynamically display system data and operating status.
