220v 1200w Ceiling Mounted Microwave Radar Sensor Switch Detector for LED

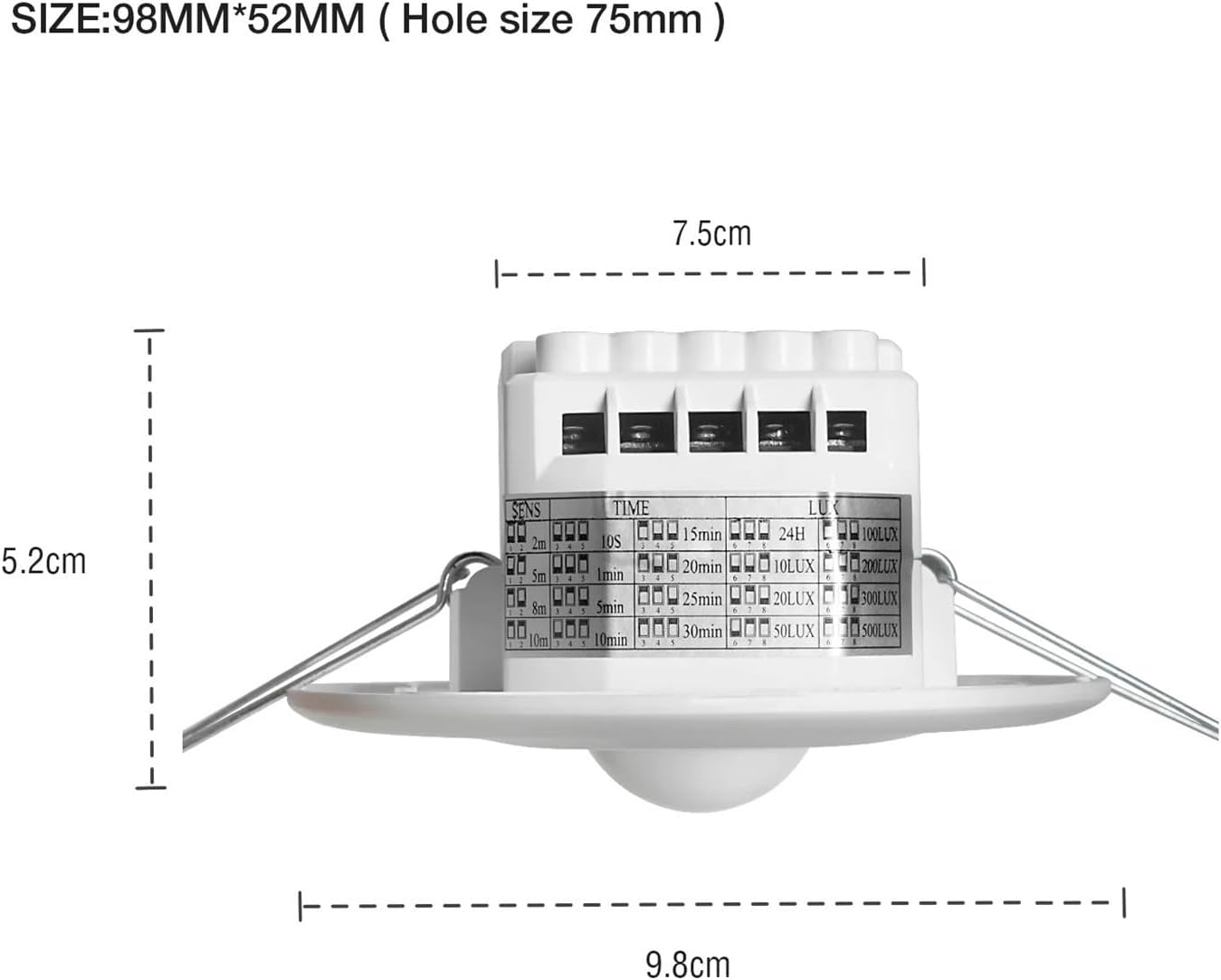

220-240V/AC Microwave Radar Sensor Motion Detector Light Switch For Led Microwave sensor instruction:The sensor is an active motion detector,it emits electro-magnetic wave(5.8Ghz) and receive their.The sensor detects the change in from even the slightest movement in its detection zone. A microprocessor then triggers the "switch light on" command. Detection is possible through doors,panes of glass or thin walls.Specifications:power source: 220-240 voltMax load: 1200W50/60HzTime delay: 10 seconds to 30 minutesDetection angle: 360 degreeWorking temperature: -15 to +70 CIdeal installation height: 2 - 4 metersPower consumption: 0.9 WLight control: 10-500LUXDetection distance :2-8m (radius) adjustableProduct size:Package size: 10*4.6*10CMPackage include:1 x Microwave Motion Sensor Switch,1 ManualFeatures:This microwave motion sensor reflects the latest development in interior technology andprovides close to zero energy wastage in terms of lights being on unnecessarily.Commonly used to control and extract ventilation.Power-saving by ensuring lights and fans are not left on.They will save energy by ensuring lights and fans not to be left on.The energy savings will be high with a short energy saving investment payback timeif connected to average energy level such as fluorescent tubes, or compact fluorescent lamps.Higher savings if controlling tungsten or halogen .The time of the light can last or adjust automatically when you enter and stay in the roomand the light will go out according to the time of your your setting when you leave the room.Pluggable type of the terminals which make easier and much convenient to install.Applicable to monitoring equipment,warning facility, LED lamp, fluorescent lamp, incandescent lamp,ventilator and magnetic valve and so on.Can be installed on wall, ceiling and anywhere of your house.Indoor use onlyNote:The 220V fire line should be connected with "L".The 220V zero line should be connected with "N".The loaded fire line should be connected with "L ".The loaded zero line should be connected with the 220V zero line of the power source.Material : PlasticSwitch Type : Sensor SwitchModel Number : 031Features : microwave sensor switchItem Type : SWITCHESIs Smart Device : NoOrigin : Mainland ChinaWorking Voltage : 220-240V/ACDetection Range : 360 degreeDetection Distance : 2-8m (radius) adjustableAmbient Light : 10-500LUX (Adjustable)Time Setting : 10sec to 30min (Adjustable)HF System : 5.8GHz CW radar , ISM bandPower : 50/60HzMounting Height : 2m~4mPower consumption : approx. 0.9WRated load : 1200WSize : 98MM*52MM ( Hole size 75mm)
