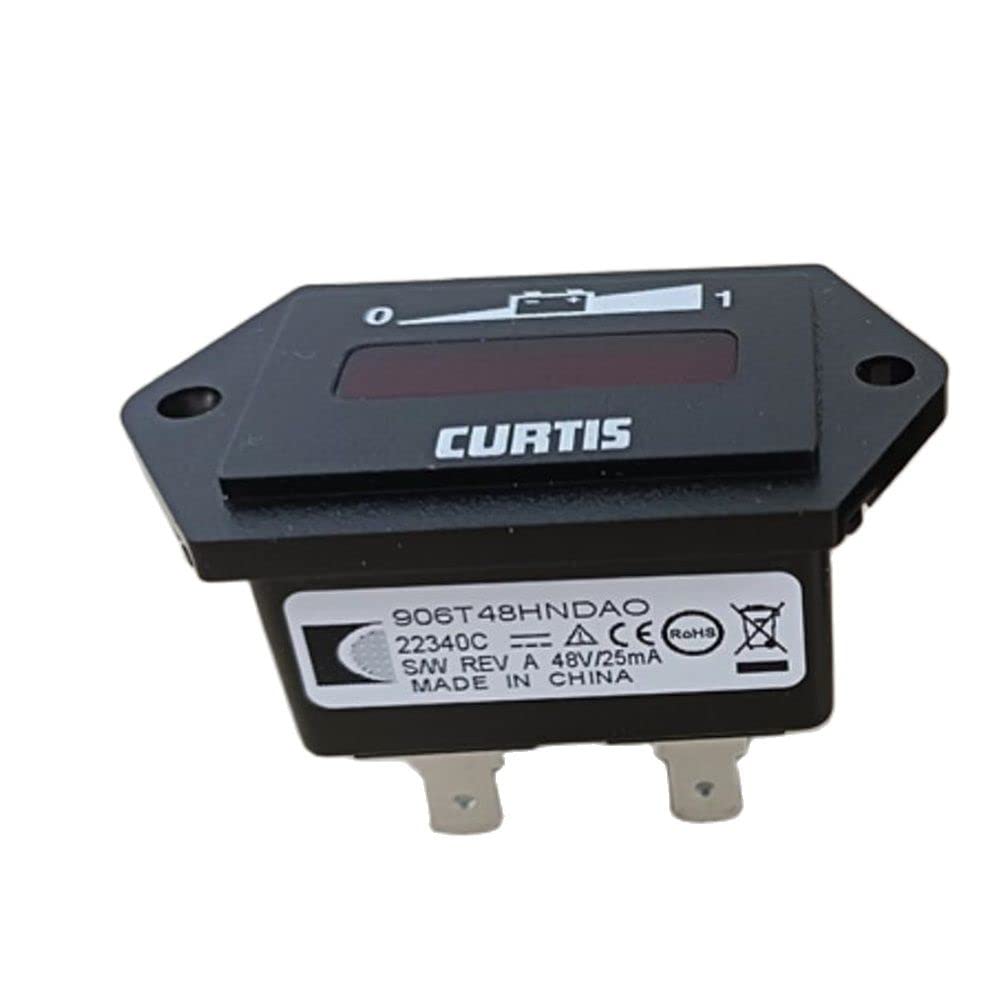

24V 48V Battery Gauge Inidcator Monitor for Curtis 906 906T 906T48HNDAO 906T24BNBAO 24 48 Volt Battery Voltage Meter (24V 906T)

24V 48V Battery Gauge Inidcator Monitor for Curtis 906 906T 906T48HNDAO 906T24BNBAO 24 48 Volt Battery Voltage Meter

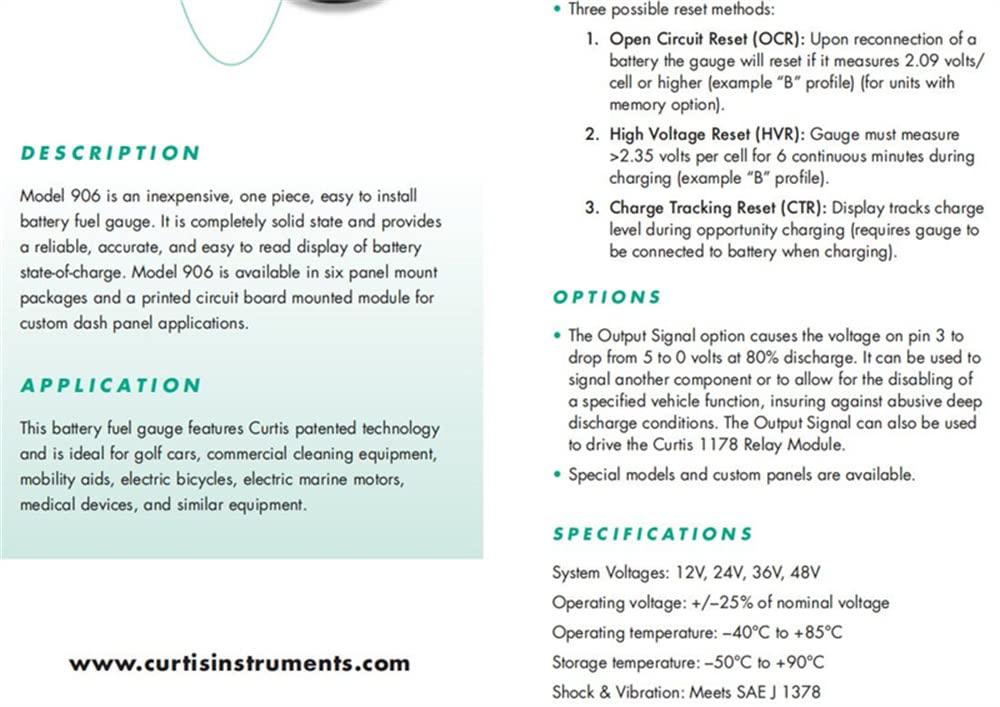

• All principal circuits are integrated in a single chip for long-life reliability. A 10-bar LED displays the state-of-charge successively, bar by bar, from full to empty. At 70% depth of discharge, a flashing LED signals an “energy reserve” alert. At 80%, alternately flashing LEDs provides an “empty” status warning.
• It is compact and easily installed in panel cutouts as small as 36.8 X 24.1 mm, with as little as 35 mm behind panel clearance needed, see dimensions of various case styles.
• Keyswitch activated LED display (state-of-charge is monitored as long as 906 is connected to battery). Memory allows gauge to recall state-of-charge whenever battery is disconnected.
• Applications: golf cars, commercial cleaning equipment, mobility aids, electric bicycles, electric marine motors, medical devices, and similar equipment.
• System Voltages: 12V, 24V, 36V, 48V Operating voltage: +/–25% of nominal voltage Operating temperature: –40°C to +85°C Storage temperature: –50°C to +90°C
