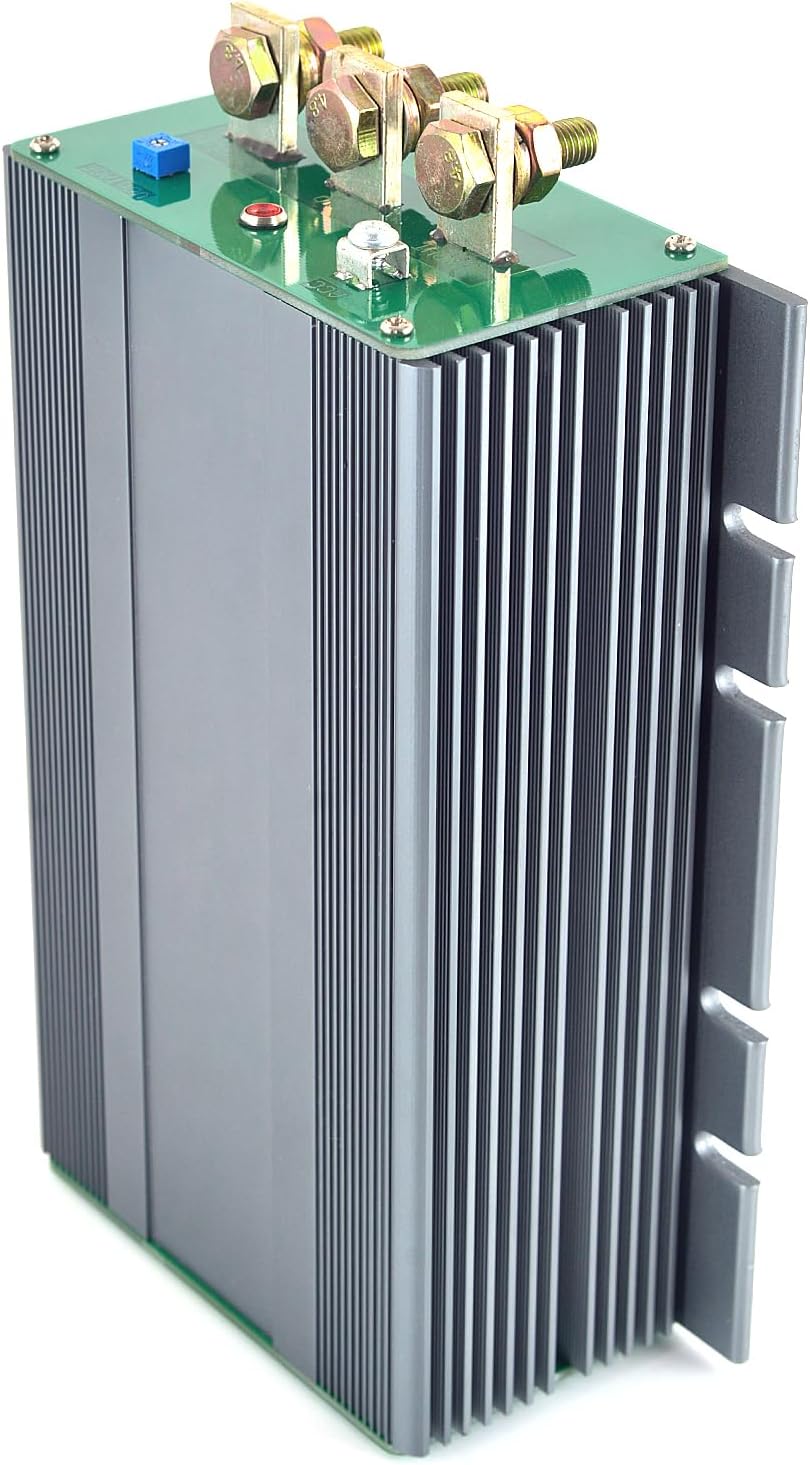

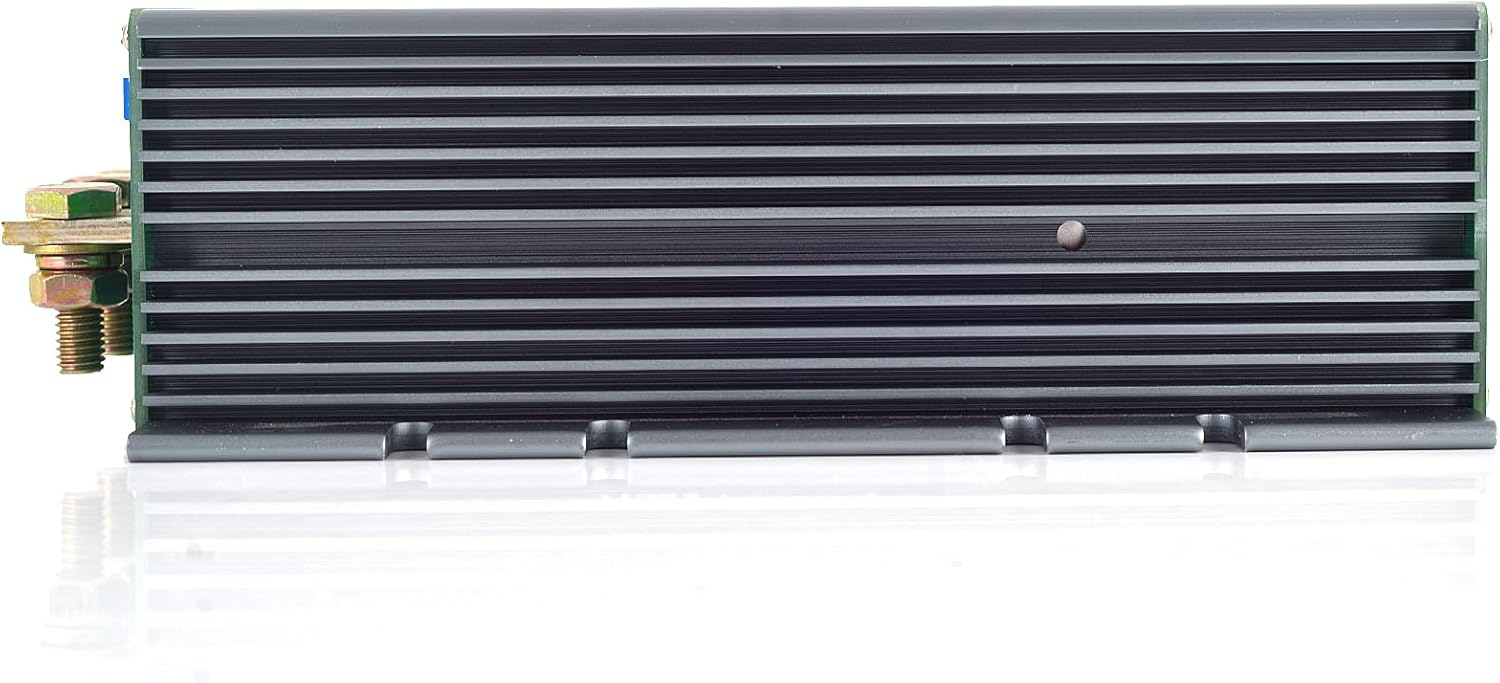

24V to 12V 13.8V Converter DC Adjustable Output Voltage (11V-14V) DC Buck Converter Step Down Waterproof Module Transformer (100A 1200W)
4.2 (28 items)
Limited Time Sale$53.33 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209115891 | Release Date | 2026/03/29 | List Price | $35.55 | Model Number | 209115891 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Parameters:Input voltage Range: DC 19V~32VOutput voltage: DC 11V-14VOutput Current: 100AOutput power: 1200W (MAX)Maximum working temperature: 80℃Size: 8 X 5.5 X 2.6 IN ,20 X 14.5 X 6.5 CMWaterproof : IP67Net weight: 2.68kg,5.9 LbCertificates：CEFeatures:Over-Voltage ProtectionOver-Current ProtectionOver-Temperature Protection 95℃Short-circuit ProtectionHigh conversion efficiency: Typical values 93%Voltage stability:1%Load stability:1%Storage temperature:-40℃ - 60℃Widely used in automotive,New energy vehicle,Golf cart,electric scooter,Electric motorcycle,Electric bicycle,electricity, surveillance systems, railway signals, instruments and meters,LED light,LED displays, cable TV, ectWiring:ACC ：Connect to Input +Input +GND: Input - And Output -Output +Package includes:1x 19V-32V to 12V 100A Step Down DC DC Converter
- The output voltage is adjustable, with an external voltage adjustment knob, using a small cross screwdriver and a multimeter. Output voltage range DC 11V-14V
- This converter product has KeyPin/ACC/Lock/Switch terminals, please connect them correctly. If the device does not support ACC function, please connect ACC to the Input terminal.
- Input Voltage: DC 19V-32V / Output Parameters: DC 11V-14V, 100A, 1200W Max.
- High conversion efficiency: Synchronous Rectification Technology, multiple intelligent protection functions, conversion efficiency up to 93%, good stability and easy installation.
- Protection: High quality aluminum shell, Fast heat dissipation. Built in Overload, Overcurrent, Overvoltage, Overtemperature and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation.
- Application: Widely used in golf cart, photovoltaic, electric power, monitoring system, automobile, electric bicycle motorcycle scooter, led, instrument, etc
- Precision manufacturing, excellent performance, one-year warranty, worry free after-sales and rapid response
- Weight 5.9 pounds,2.68 KGs,Size : 8 X 5.5 X 2.6 IN ,20 X 14.5 X 6.5 CM
| Model | 5-100A |
|---|---|
| Brand Name | WARMCONFORT |
| Part Number | 24TO12V |
| Manufacturer | Zhongshan Yuanxi Electronic Technology Co. , Ltd. |
| Power Source | Corded Electric |
| Current Rating | 100 Amps |
| Specification Met | CE |
