3 Axis Nema 34 Stepper Motor 1600 Oz.in & Driver Dm860a CNC Router

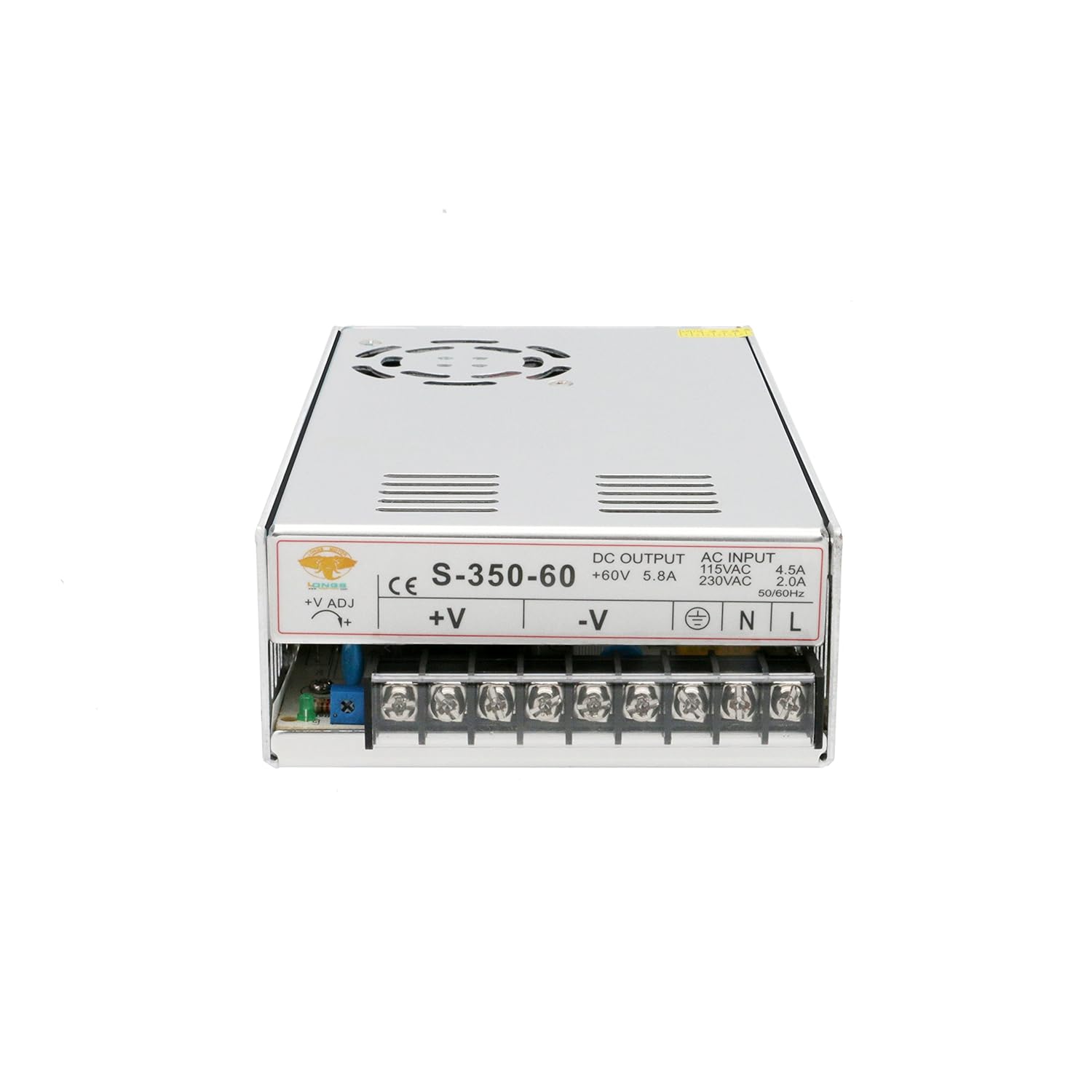

This item includes 3 pcs Nema 34 stepper motor 1600 oz.in 3 pcs Stepper motor driver DM860A 3 pcs Power supply 350W-60V 1 pc breakout board + 1 pc parallal cable Model 34HS5435C-37B2 Step angle ( ° ) 1.8 Motor Length L(mm) 151 Rate Voltage(V) 5.7 Rate Current (A) 3.5 Phase Resistance (Ω)1.9 Phase Inductance (mH)22 Holding Torque (oz.in) 1600 Lead Wire (NO.) 4 Rotor Inertia(kg. cm2) 3.6 Motor Weight (kg) 5DM860A: Input voltage：24-80VDC Input current：<6A Output current：2.8A～7.8A Consumption：80W； Internal Insurance：10A Temperature：Working Temperature -10～45℃； Stocking temperature -40℃～70℃ Humidity：Not condensation, no water droplets Gas：Prohibition of combustible gases and conductive dust Weight：500G

• <p>2. TORQUE: 10.5N.m Min Holding Torque. 24.5N.cm Max. 3600g.cm2 Rotor Torque.</p>
• <p>3. OTHER PARAMETORS: 2 Phase. 1.8±5%°/ Step. 5.6 Voltage. 3.5A/Phase Current. 1.6±10% Ω/Phase Resistance. 22±20% mH/Phase Inductance. B level Insulation Class. </p>
• <p>1. USAGE: 3D printer. CNC machine. Carver Machine. Dispenser. Automation. Robotization.Stage lighting. Instrument. Laser equipment.Scanner.</p>
• <p>4. Warranty: 1 Year free return. 24hours- 7 days customer services</p>
• <p>2. Stepper Motor Driver: DM860A Stepper Motor Driver 2 Phase 2.8A-7.8A Voltage 24-80VDC</p>
