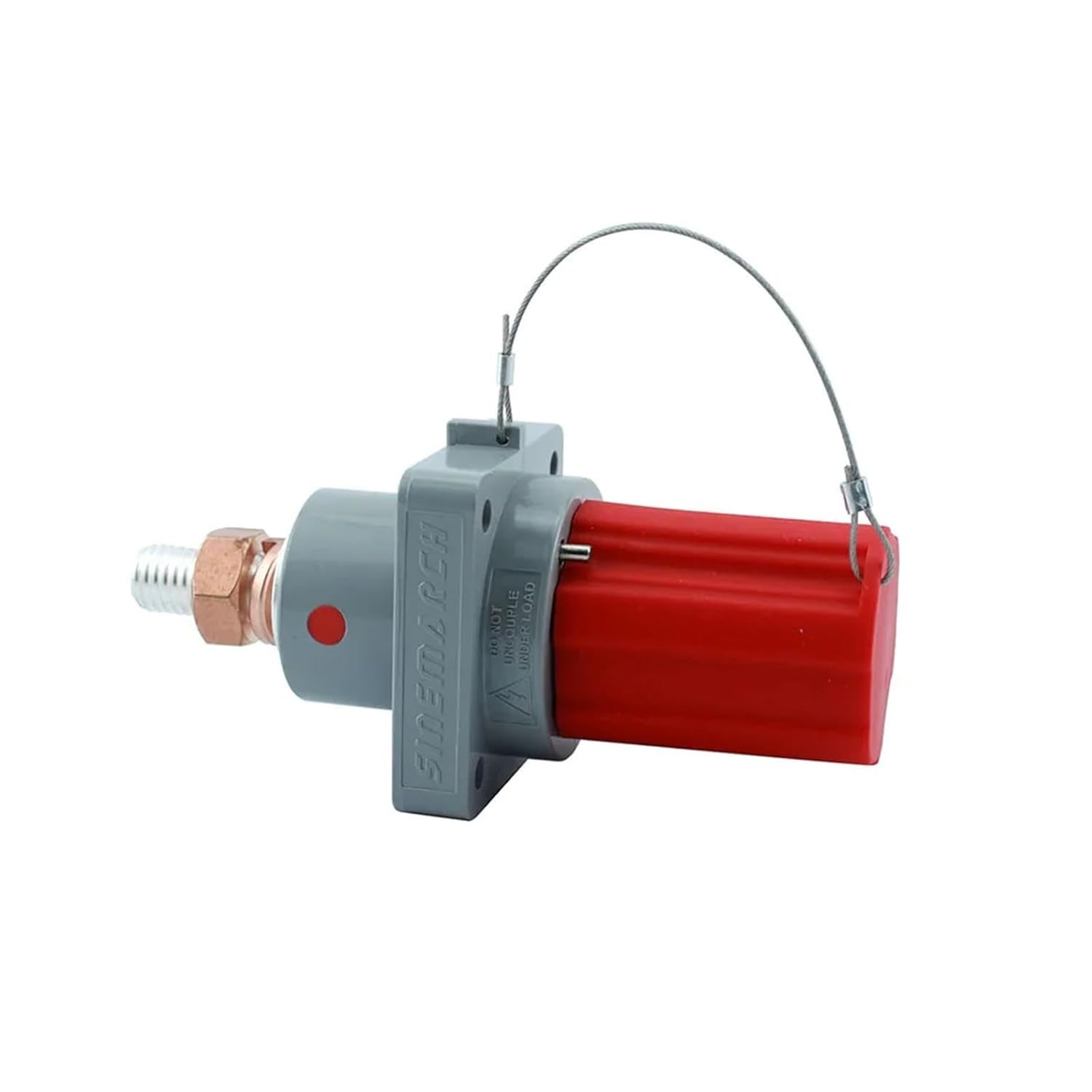

400 Amp Male Female Socket Single Pole Power Connector Dust Proof Covers Compatible with Powerlock

Electrical Connector400 Amp Male Female Socket Single Pole Power Connector Dust Proof Covers Compatible with PowerlockPackage Content:1 x brown 400A male 1 x black400A male 1 x grey400A male 1 x blue400A male 1 x green400A male 1 x brown 400A female socket1 x black400A female socket1 x grey400A female socket1 x blue400A female socket1 x green400A female socket5 x dust proof covers for 400A male 5 x dust proof covers for 400A femalesocketOverview:1. Invented patent key releasing button delivers great safety and convenience without additional tool while un-mating2. The contact is made of brass with silver plated for superior conductivity3. The connector housing is made of shock proof and high temperature resistance thermoplastic4. POM locating pin for excellent insulation5. Ergonomic plastic grip offers comfort and easier handling6. Comes with two rubber sleeves (I.D. 18mm and 26mm) to fit different size of cables7. The housing has 5 different colors and phases to prevent mating errors, different color and phase cannot be mated8. Contacts fitted with a plastic end cap to prevent accidental touching of live parts9. IP 2X finger protection against electric shock10. M40 waterproof cable gland comes with two rubber sleeves (I.D. 18mm and 26mm) to fit cables from dia19mm to dia28mm11. The standard package includes R120 silver plated brass reduction sleeve: (I.D.) 16.5mm x (length) 32mm, suitable for dia120MM² cables. Other size can be according to customer requirements.Please note that do not reuse locating pin. Reusing Locating pin might expose the operation to electrical danger.Female Socket1. The contact is made of brass with silver plated for superior conductivity2. The connector housing is made of shock proof and high temperature resistance thermoplastic3. POM locating pin for excellent insulation4. Supplied with M12 threaded post with brass nut and spring washer for cable attachment5. The housing has 5 different colors and phases to prevent mating errors, different color and phase cannot be mated6. Contacts fitted with a plastic end cap to prevent accidental touching of live parts7. IP 2X finger protection against electric shock8. 4 x dia. 5.5mm fixing holes on the flange9. Suitable for visible mounted10. The housing can be equipped with a dust cap, which can be removed and assembled according to the usagePlease note that do not reuse locating pin. Reusing Locating pin might expose the operation to electrical danger.Specifications:- Current Rating: 400A continuous with 120mmsq cable- Withstanding Voltage: 1000V- Test Voltage: 4500V (Max.)- Short Circuit Rating: Up to 35.5KA- Insulation Resistance: >5000M Ohms at 500 Vac<;0.1m Ohms- IP Rating While Mated: IP 67- Contact Material: Silver plated brass- Housing Material: High impact thermoplastic- Locating Pin Material: POM- Working Temperature: -45-85- Contact Type: Set screw- Set Screw on Brass Contact: 10.5N/meter (Min.)- Mating Cycle: >500- Flammability: UL94-V0- certificationModel no.TypePhaseColorCable size(Diameter)Waterproof cable gland sizeSMLS-400-1BN-120-MRLine (male )LINE1brown120mm²M40/19-28mmSMLS-400-2BK-120-MRLine (male )LINE2black120mm²M40/19-28mmSMLS-400-3GY-120-MRLine (male )LINE3grey120mm²M40/19-28mmSMLS-400-NBL-120-MRLine (male )NEUTRALblue120mm²M40/19-28mmSMLS-400-EGN-120-MRLine (male )GROUNDgreen120mm²M40/19-28mmModel no.TypePhaseColorCable size(Diameter)Thread & NutSMPD4001BN120MRPanel drain female socket)LINE1brown120mm²M12SMPD-400-2BK-120-MRPanel drain (female socket)LINE2black120mm²M12SMPD-400-3GY-120-MRPanel drain (female socket)LINE3grey120mm²M12SMPD-400-NBL-120-MRPanel drain (female socket)NEUTRALblue120mm²M12SMPD-400-EGN-120-MRPanel drain (female socket)GROUNDgreen120mm²M12==========High-concerned chemical : NoneModel Number : SMLSPD-400-20SDIY Supplies : ElectricalOutput Voltage : 400ACurrent Rating : 400A continuous with 120mmsq cableWithstanding Voltage : 1000VTest Voltage : 4500V Max.Short Circuit Rating : Up to 35.5KAContact Material : Silver plated brassHousing Material : High impact thermoplasticLocating Pin Material : POMWorking Temperature : -45-85Contact Type : Set screw
