4H230C/E-06/08 4HA230C/E-06/08 2 Position 5 Port Manual 5 Way Pneumatic Air Valve 1Pcs(4H230C-08)
4.0 (145 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210623130 | Release Date | 2026/04/02 | List Price | $36.00 | Model Number | 210623130 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

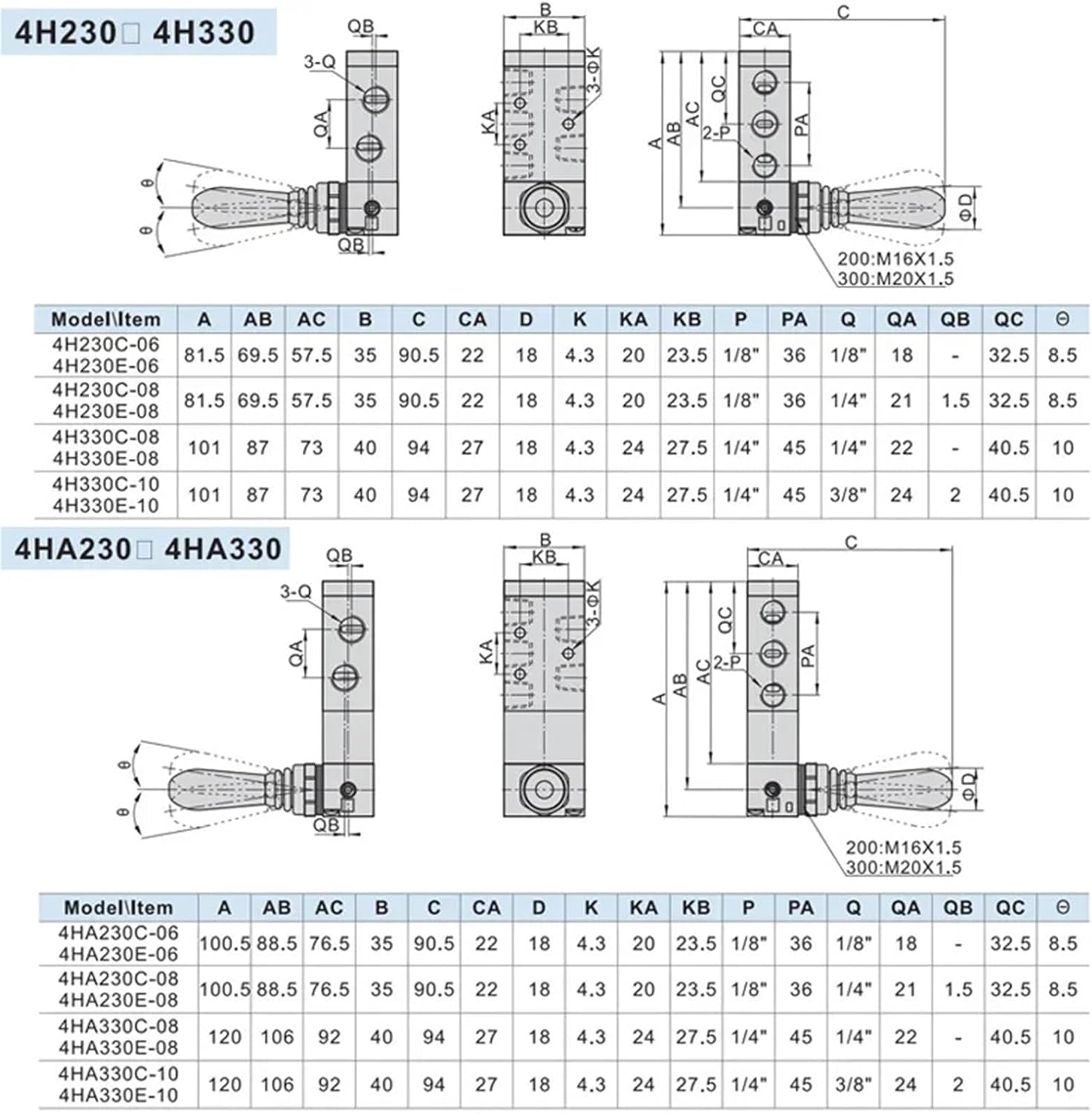

Control ValvesType : ValvesModel Number : 4H230C/E-06/08 4HA230C/E-06/08 Valve type : 5/2WayOrifice size : 14mm2(CV=0.78) or 16mm2(CV=0.89) etc.Port size : 1/8" and 1/4"Operating pressure : 0~0.8MPa(0~116psi)Max.proof pressure : 1.5MPa(215psi)Temperature : 5~50Material body : Aluminum alloyOperating : Manual control direct acting type
- Control Valves
| Size | One Size |
|---|---|
| Brand Name | GGKLVWMA |
| Manufacturer | GGKLVWMA |
| Model Number | GGKLVWMA |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Specification Met | UL |
