AT680 Leakage Current Tester with Insulation Resistance Measuring Function

Under the condition of without using of an external voltage source, AT680 has high-cost performance Build-in 1V- 650V arbitrary voltage output. 7 ranges can test leakage current 1nA~20mA, max reading 9999, and speed can reach 55 times/second. It provides the best solution for automatic production. New revision AT6832 provides additional 1.5A precharging interface. Precharging source is available for sorting machine. SPECIFICATIONS AT680AT680SEAT6832 ParametersLeakage current and insulation resistanceLeakage current Accuracy1%2%1% Output VoltageNC 1V～650VDC10V～170VDC Measurement RangeI: 1nA~20mA R:1k~325GI:10nA~20mAI: 0.1uA~20mA unaged current: 160 mA Max Reading999919999999 RangeAutomatic and ManualManualAutomatic and Manual Charging Current200mA（MAX）500Ma(MAX)/1.5A（MAX） Speed55t/s, 15t/s, 3t/s3t/s20t/s Result DisplayShow, current, resistance, peak value, and sorting resultShow Charging Timer999.9s Comparator30 sets record，GD/NG1 set record，GD/NG BeepGD、NG、OFF setting and volume settingNone InterfaceRS-232C and Handler InterfaceNoneRS-232C and Handler GENERAL FEATURES Power SupplyVoltage：198VAC～240VAC Frequency：50Hz Power：Max 50VAVoltage：198VAC～240VAC Frequency：50Hz Power：200VA SizeAT680 AT680SE(mm): 264 (Width)x107(Height)x350 (Depth) 5kg AT6832(mm):445 (Width)x129 (Height)x351 (Depth) 8kg ORDERING INFORMATION AccessoriesATL507: Test clip ATL603: Test fixture ATL108: RS232 interface cableATL507: Test clip ATL603: Test fixture ATL507: Test clip ATL108: RS232 interface cable

• Leakage current tester with insulation resistance measuring function;display direct reading, current, resistance, peak and sorting results
• Test scope leakage current 1nA~20mA，minimum resolution：1pA , Resistance 1kΩ~325GΩ;output voltage CNC 1V DC~650V
• Charging current 200mA（MAX）;Speed fast 60 t/s ；medium25t/s ；slow3t/s

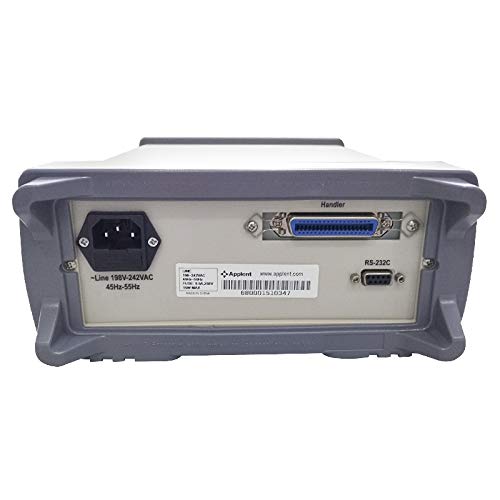

• Interface:RS-232 ，Handler;comparator 30 sets of records，OK/NG;carging timer 999.9s
• Beep GD、NG、Turn off settings and volume level settings;maximum reading slow：9999,medium&fast：1999
