Baomain 4 Station Solenoid Valve Manifold, 12V DC 5 Way 2 Position Pneumatic Air Valve, Four Solenoid, 1/4" PT Port, Includes Manifold Base & Mufflers, 4V210-08
5.0 (70 items)
Limited Time Sale$39,595.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211088563 | Release Date | 2026/04/04 | List Price | $26,397.20 | Model Number | 211088563 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

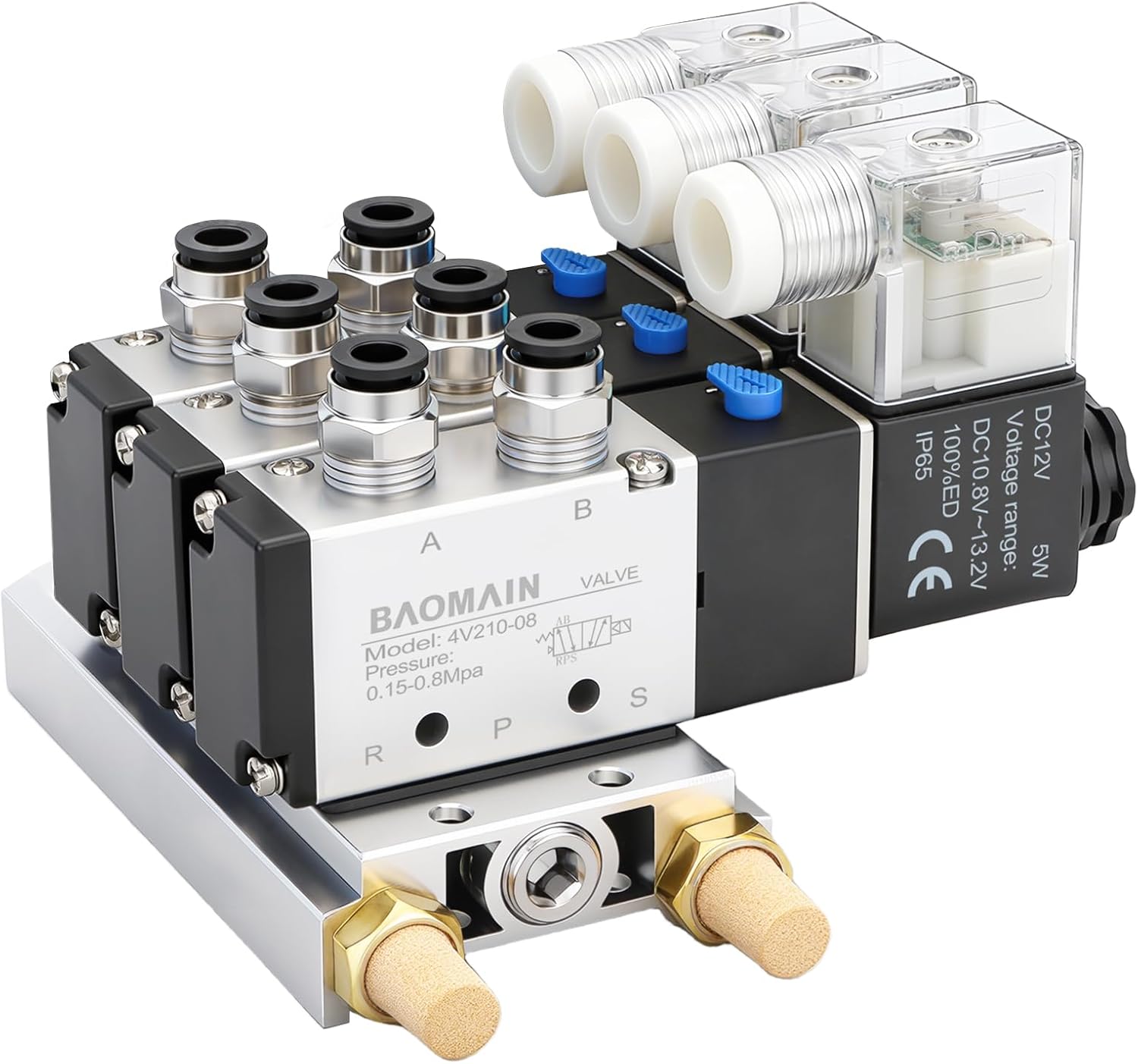

- 【4-Station Integrated Manifold】 This product is an 4-station solenoid valve manifold that integrates 4 individual valves onto a single, sturdy base. This integrated design simplifies installation and saves space

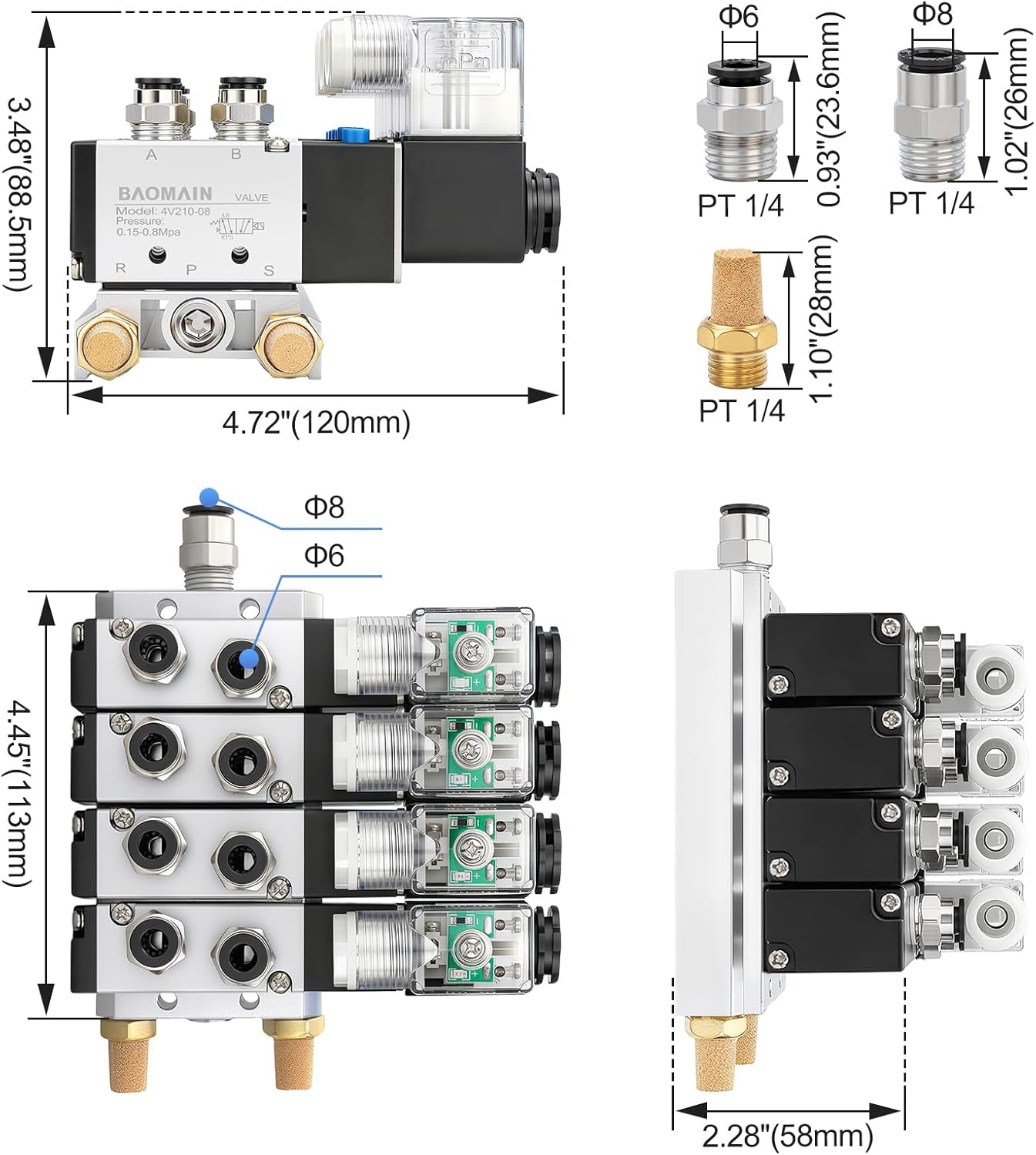

- 【Quick-Connect Fittings】 Equipped with 8mm base ports and 6mm exhaust ports for simplified tool-free installation, reducing assembly time and effort
- 【2-Position, 5-Way Pneumatic Design】 Offers essential control for double-acting cylinders, making it a fundamental component for a wide range of automated machinery
- 【12V DC Operation with Stable Performance】 Features energy-efficient pure copper coils that reduce heat build-up. The wear-resistant construction ensures a long service life and reliable operation, even with frequent use
- 【Durable Aluminum Body】 Constructed from aluminum alloy for a lightweight yet strong valve body that resists corrosion
| UPC | 711811447594 |
|---|---|
| Size | 4-Station Valve Kit |
| Brand Name | Baomain |
| Unit Count | 1 Count |
| Valve Type | solenoid valve |
| Item Weight | 2.38 Pounds |
| Thread Size | 0.6 inches |
| Thread Type | PT |
| Manufacturer | Baomain |
| Model Number | 4V210-08-4P-12VDC |
| Material Type | Aluminum |
| Connector Type | Compression |
| Exterior Finish | Textile |
| Item Dimensions | 4.6 x 5.9 x 3.6 inches |
| Number of Ports | 5 |
| Maximum Pressure | 800 Kilopascal |
| Number of Pieces | 1 |
| Included Components | Solenoid Valve |
| Inlet Connection Type | Quick-Connect |
| Outlet Connection Size | 0.2 Inches |
| Outlet Connection Type | PT |
