BSIDE Thermal Imaging Camera 240×240 Resolution 15 Color Palettes Infrared Thermal Camera -4°F to 1022°F 25Hz Rechargeable Handheld Thermal Imager with Laser Pointer 50°FOV for Home Inspection HVAC

Features: 240×240 resolution Thermal Imaging Camera 320 x 240 TFT full view color screen With 15 kinds of pseudo-colors, you can flexibly choose the right color palette ℃/℉/K selectable: -20~550℃/-4~1022℉ Sufficient memory capacity, capable of storing 30,000 images With rechargeable Li-ion battery, longer battery life Specification: Display: 2.4 inch TFT LCD Sensor Type: Vanadium Oxide (VOx) Microbolometer Response band:8-14pm Thermal image resolution:240*240 resolution Noise Equivalent Temperature Difference (NETD):≤60mK(@25℃,F#1.0) Spatial resolution (IFOV): 8.89mrad Frame rate:25Hz Imaging lens focal length:1.35mm Temperature measurement resolution: 0.1℃ Temperature measurement focal length: 0.3m-3m adjustable Temperature range: -20℃-550℃ Temperature measurement accuracy: ± 2 ℃ Temperature measurement unit: degrees Celsius, degrees Fahrenheit, Kelvin color palettes: white heat, black heat, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, sepia, color 1, color 2, ice and fire, rain, green heat, red heat, dark blue Display resolution: 320*240 Image storage: 30000 Size: 193.4*59.4*77.4mm Weight: 277g Package Contents: HX3 Infrared thermal imager EVA storage bag USB charging cable Instruction manual

• 240×240 Resolution: Thermal imaging cameras feature 240×240 resolution for clearer real-time viewing and high-definition images. 50mk thermal sensitivity allows for visualization of temperature differences, helping you to detect problems early and diagnose them reliably.
• Accurate temperature measurement: The camera measures temperatures from -20°C to 550°C (-4°F to 1022°F). 25Hz high frame rate ensures a smooth on-screen viewing experience during anomaly detection.
• 15 color palettes: The security camera has 15 color palettes, giving you the flexibility to choose the most appropriate palette for different inspection scenarios and purposes.
• Adjustable emissivity: Industrial thermal imaging cameras can adjust the distance to the object and fine-tune the emissivity settings to ensure more accurate temperature measurements for a variety of materials, such as cement and bricks.

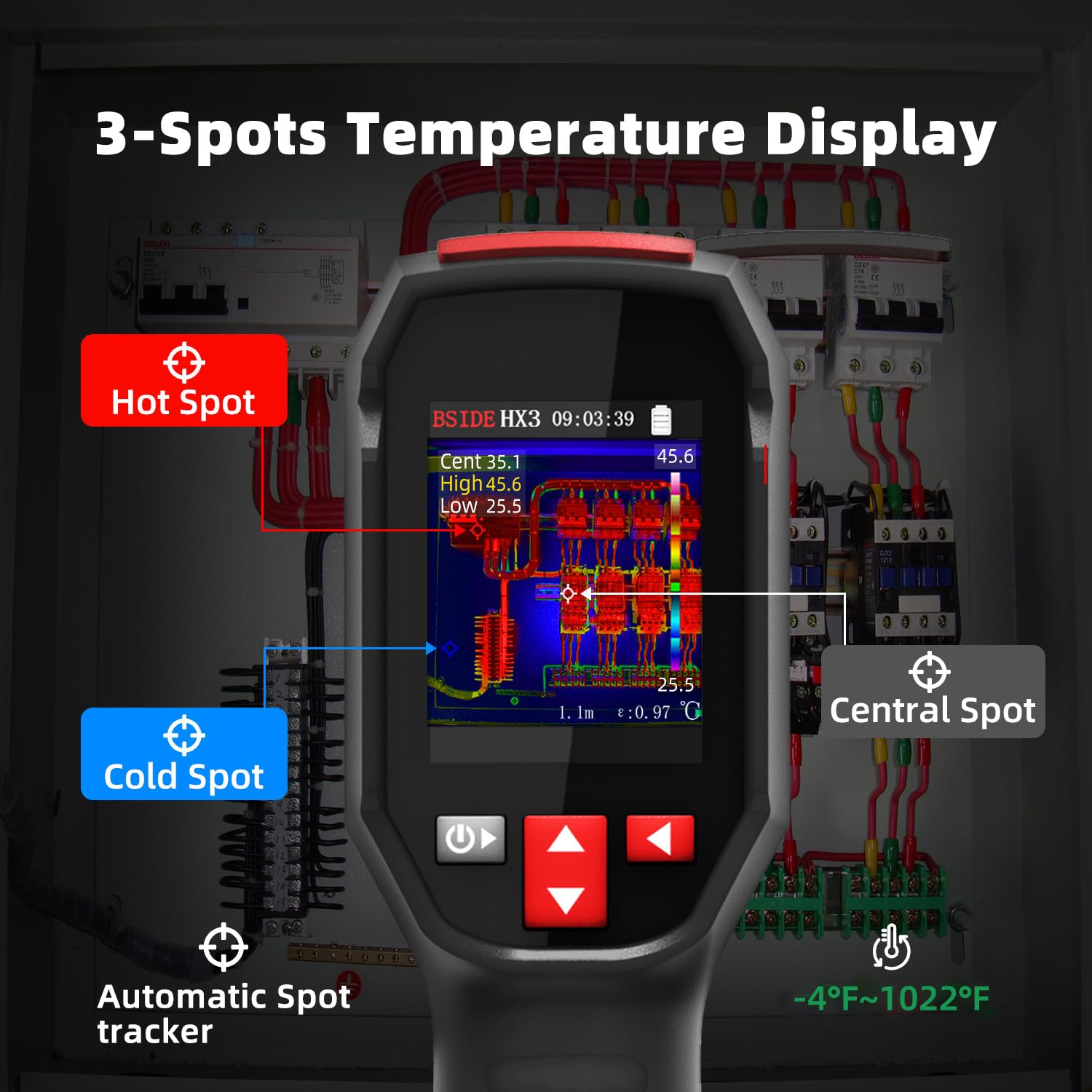

• 2.4-inch Full View Color Screen: The thermal imaging camera features a 2.4-inch 320 x 240 TFT full view color screen for clearer viewing of results. It automatically recognizes the maximum, minimum and center temperatures and displays them in the upper left corner of the screen. This makes it easy to view 3 pieces of data at once.
• High/Low Temperature Alarm: The camera has a high/low temperature alarm that Font Color Alarm when the temperature exceeds or falls below the set data.
• Dual Injection Molding: This thermal imaging camera is made of dual injection molding for high accuracy and durability, and is resistant to wear and tear, scratches and drops. It is also designed with a standard tripod hole to support the use of a tripod to assist in inspection work.
