CALANDIS™ NFC MFRC-522 RC522 RFID 13.56MHz Card Reader Transponder Module for | Development Kits & Boards | Semiconductors & Actives | Electronic Components

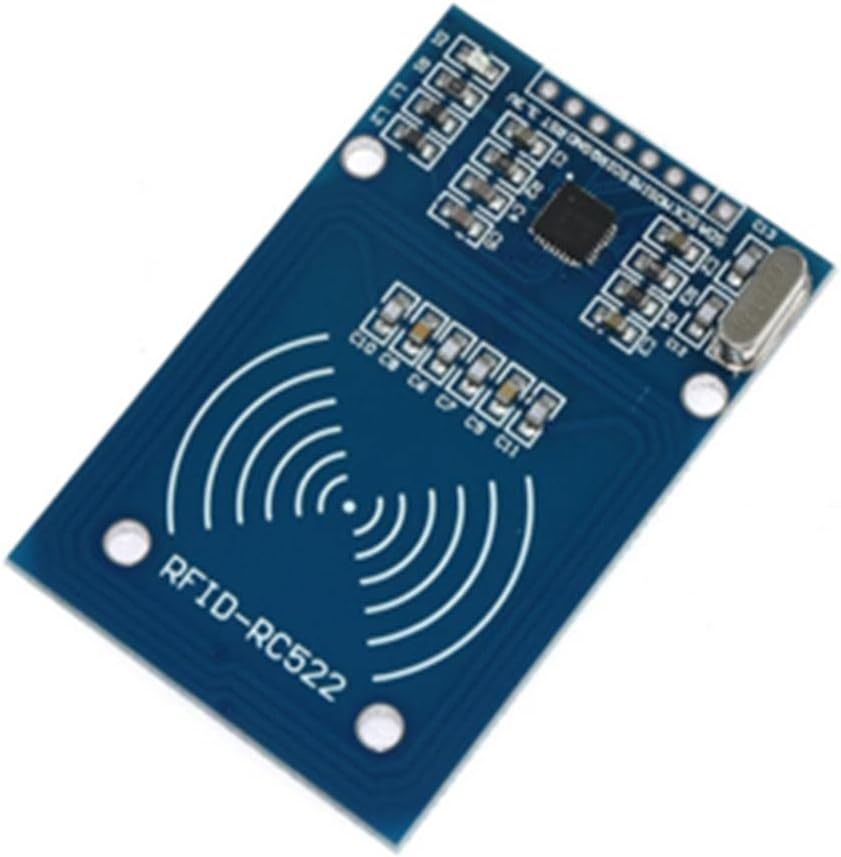

Product description Description:The RF IC Card module design the circuit of card read by using MFRC522 chip, with pin header. The module can be loaded into the various reader molds.Applicable for the user who need to design or manufacture the RF card terminal.Module Interface: SPIData transfer rate: Maximum 10Mbit/s.Power Voltage : 3.3V,Operating frequency: 13.56MHz.Specification:Operating current :13-26mA/DC 3.3VIdle current :10-13mA/DC 3.3VSleep current: <80uAPeak current: <30mAOperating Frequency: 13.56MHzEnvironmental Operating temperature: -20-80 degrees CelsiusEnvironmental Storage Temperature: -40-85 degrees CelsiusRelative humidity: relative humidity 5% -95%Module interfaces SPI ParameterData transfer rate: maximum 10Mbit/sProduct physical characteristics: size: 40mm x 60mm/1.57 x 2.36inchPackage Includes:1 x RFID RC522 module1 x RFID Key Fob1 x RFID Card2 x Pin Header Manufacturer Contact Information PMDL Decor,[email protected], 7840053996

• The Rf Ic Card Module Design The Circuit Of Card Read By Using Mfrc522 Chip
• With Pin Header. The Module Can Be Loaded Into The Various Reader Molds.
• Applicable For The User Who Need To Design Or Manufacture The Rf Card Terminal.
• Module Interface: Spidata Transfer Rate: Maximum 10Mbit/S.

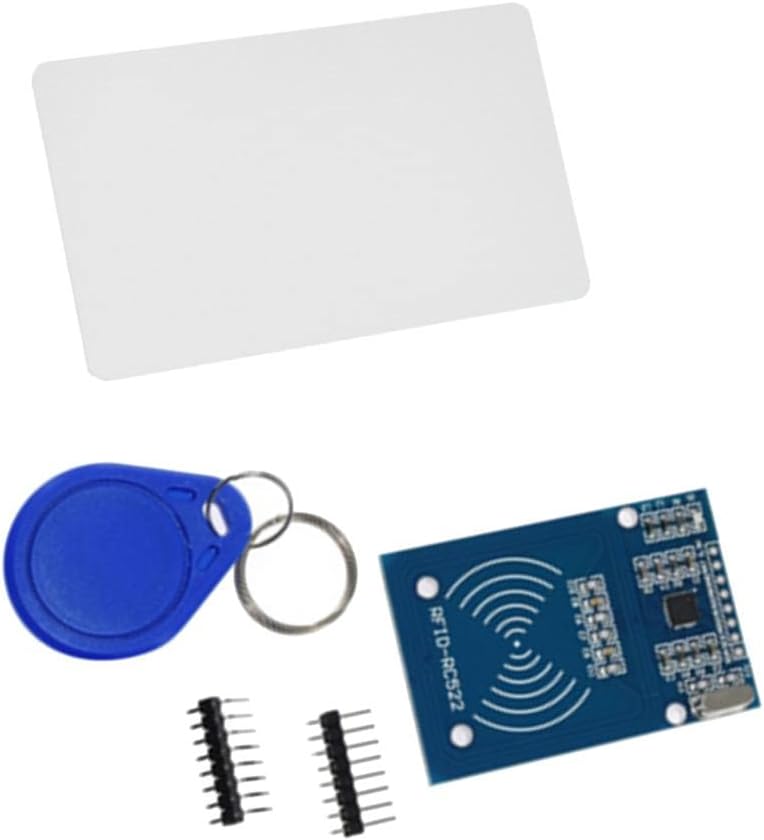

• Package Includes: 1 X Rfid Rc522 Module 1 X Rfid Key Fob 1 X Rfid Card 2 X Pin Header
