CHRISK 12000W 3 Phase Permanent Alternator,Permanent Magnet Electric Motor Generator DIY AC Alternator Permanent Magnet Motor

➤Product Details:- Tem Type: Permanent Magnet Generator- Color: white- Rating power: 12000W- Speed：600r/m- Starting torque：0.42N*m- Rated torque：8N*m- Output current: AC- Efficiency: 90%- Working temperature rise: 70℃- Operating temperature: -40℃-120℃- Insulation class:H- Generator: 3 phase permanent magnet synchronous generator- Shaft material: stainless steel- Generator Shell Material: Aluminum alloy- Permanent magnet material: rare earth NdFeB➤Packing list:- Motor with base x 1- Rectifier x 1➤product features：- Low start up speed & Low torque- Gear-less, direct drive, low RPM generator.- High quality bearing and magnet, easy to send out quantity of heat and keep magnetic property.- With the best NdFeB Permanent Magnet, high-grade pure copper winding, the generator can product power stably and high efficiently.

• ✔ [3 phase permanent alternator]:The permanent magnet material is made of rare earth NdFeB iron boron material, which is called the king of magnets. It is wound with high quality pure copper wire.

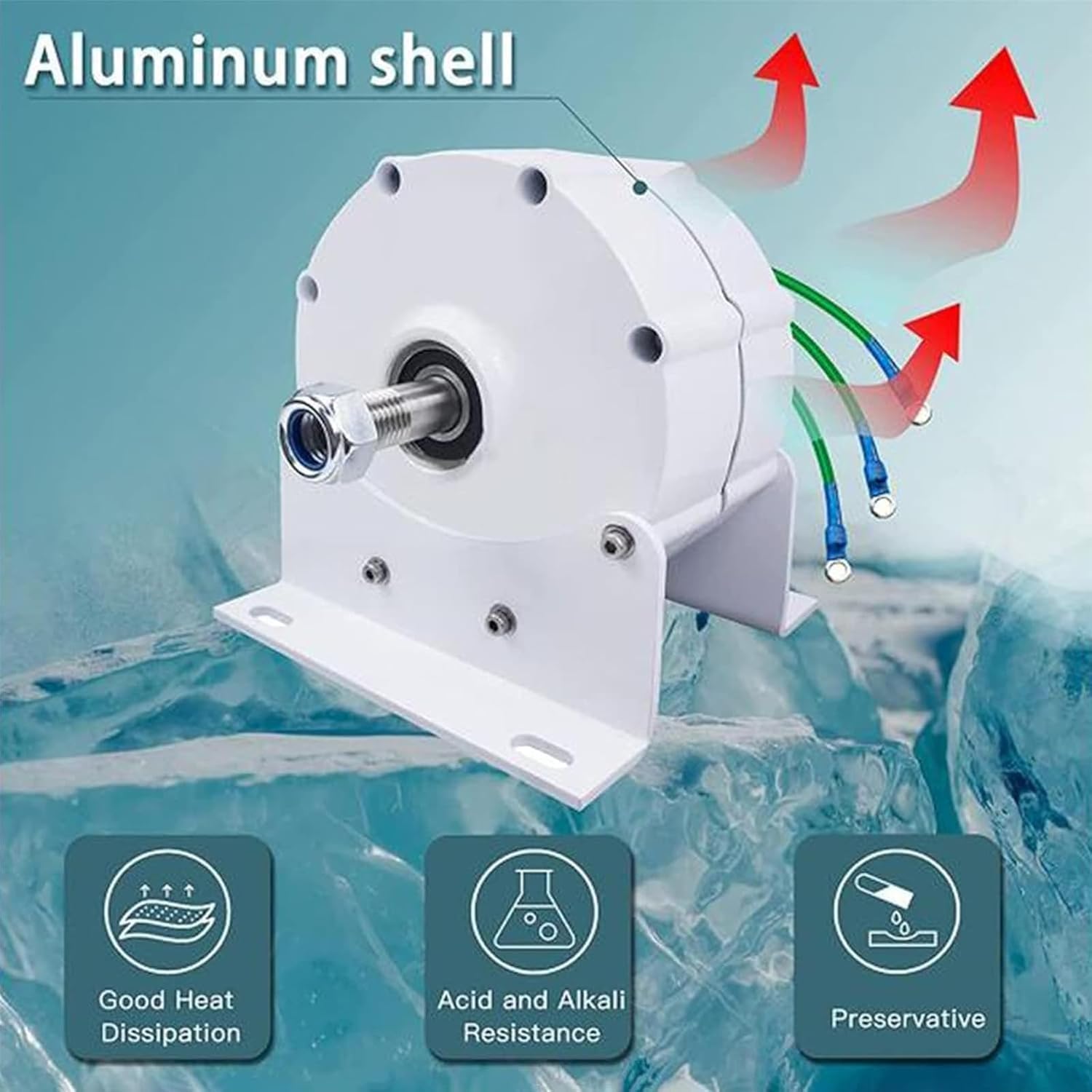

• ✔ [Die-cast aluminum cover]:The three-phase AC generator adopts aluminum alloy shell, stronger typhoon resistance, safe and reliable operating. anti-corrosion treatment, acid, alkali and salt resistance, and longer service life.
• ✔ [Good heat dissipation performance]:The three-phase generator adopts special stator and rotor design, low starting resistance torque and good heat dissipation performance, stable operatiing and high safety factor.

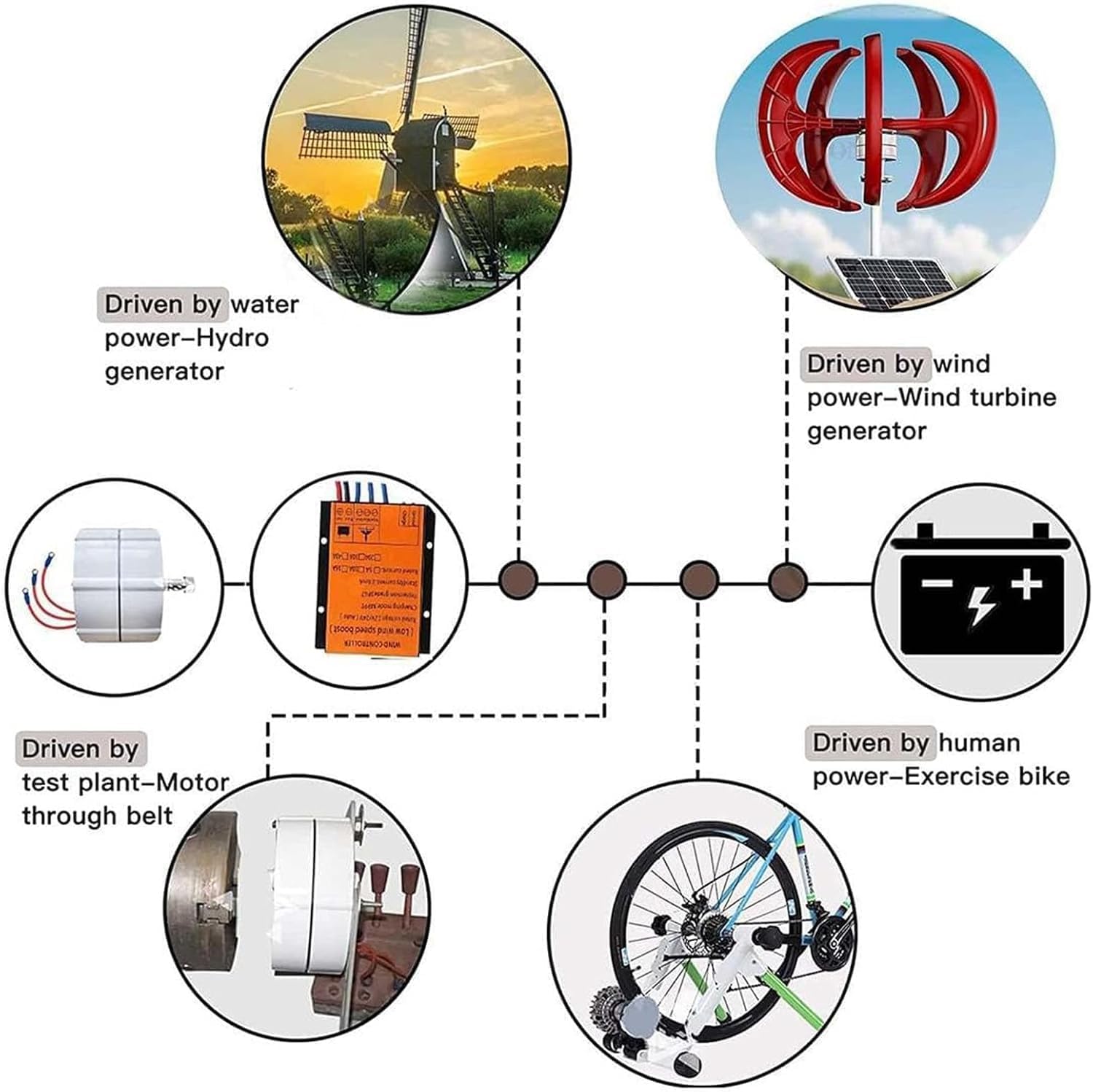

• ✔ [Easy To Operate]:The slow running rare earth permanent magnet generator is very easy to use, and the three-phase AC permanent magnet generator is safe, easy to maintain, gearless and can be driven directly.
• ✔[Automatic protection function]:When the three-phase permanent magnet synchronous motor is subjected to excessive thermal load, external force or other abnormal operating conditions.
