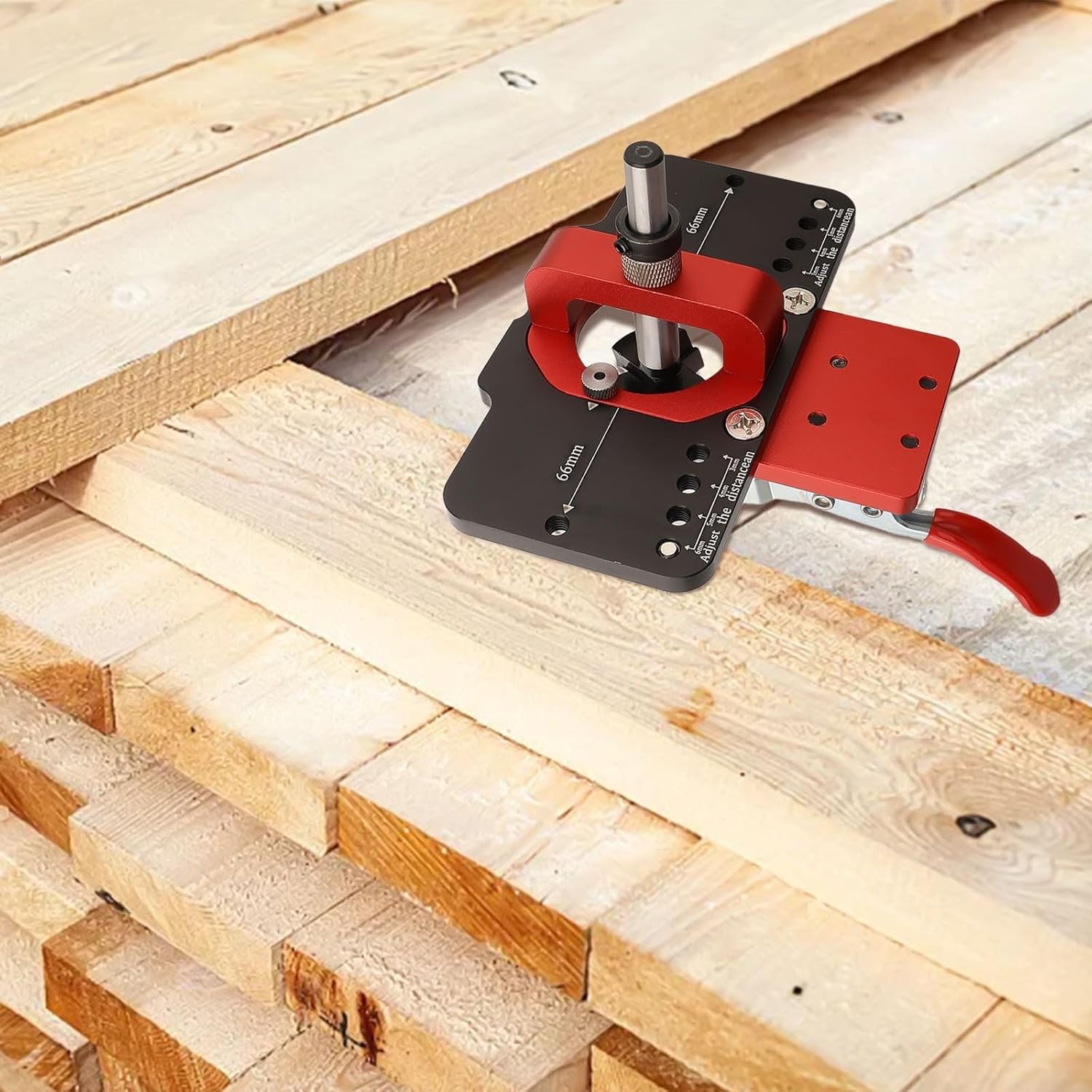

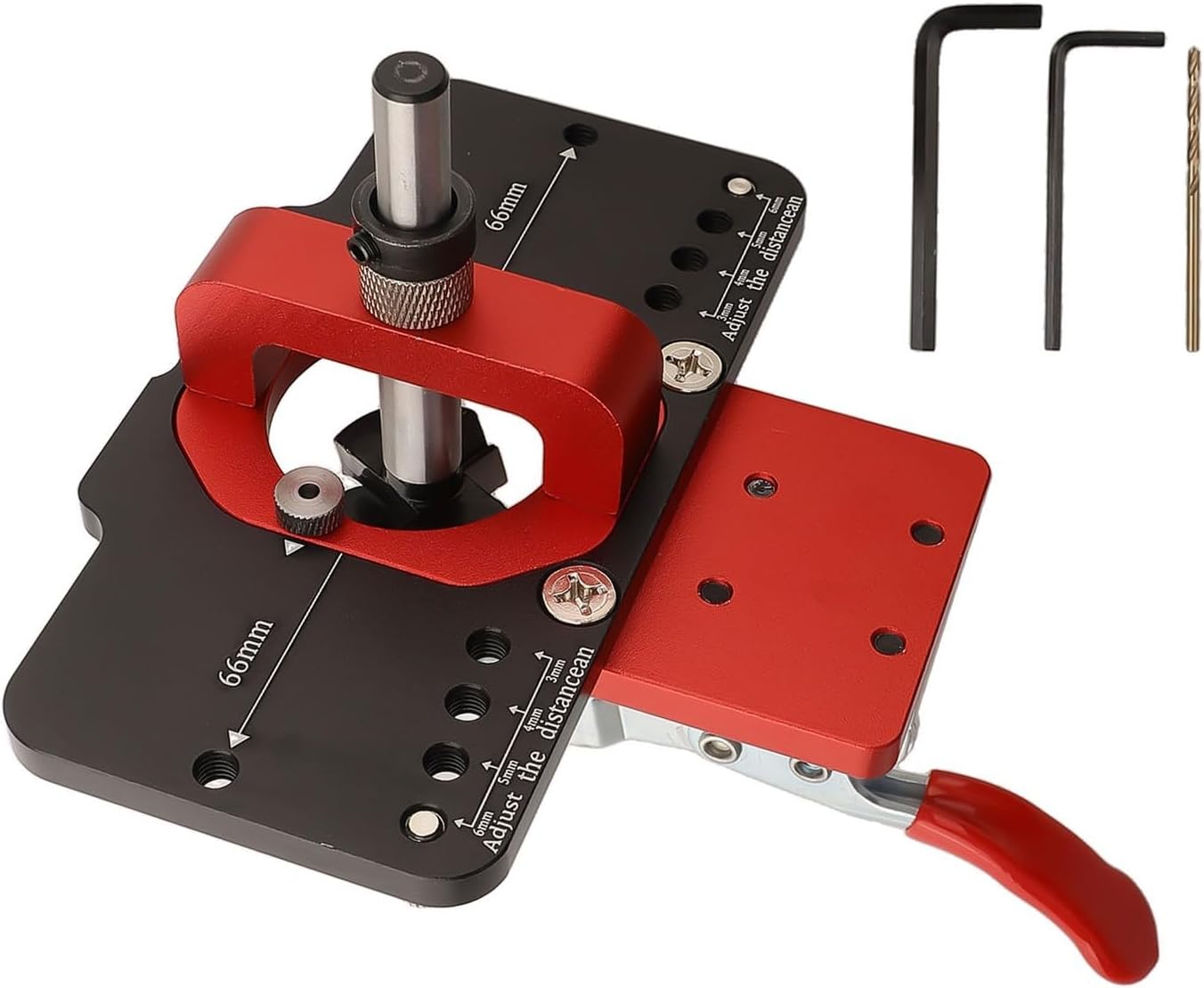

Concealed Hinge Jig, Cabinet Door Hinge JigAdequate Assistance Offered by The Aluminum Alloy Construction of The 35mm Hinge Drill Tool

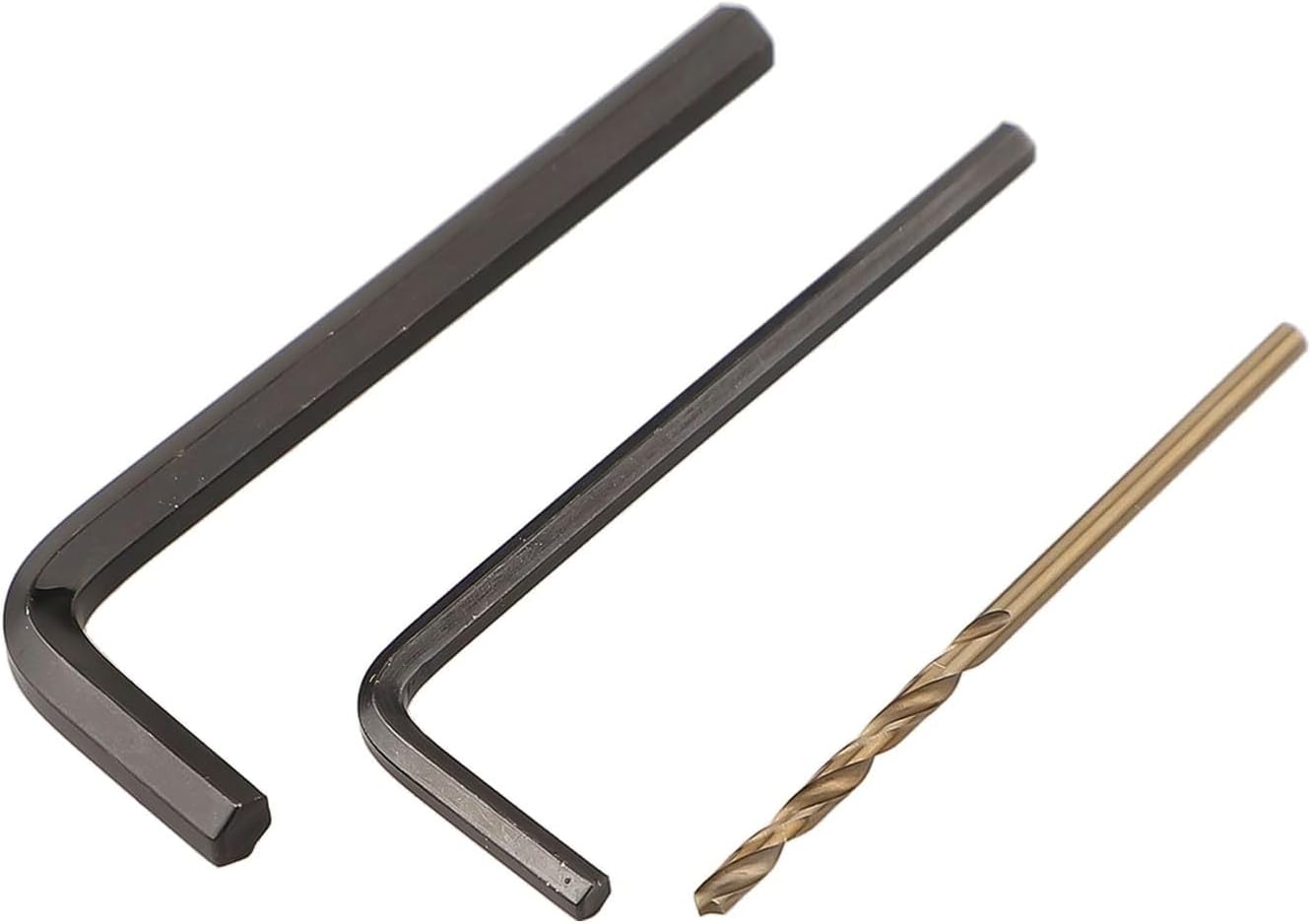

Features:*High-Quality Aluminum Alloy: 35mm hinge drilling jig set is made of high-quality aluminum alloy, precision manufacturing, precise positioning, and durability. *Easy to Operate: The 35mm hinge drilling jig makes drilling simple. The adjustable dials with 3mm, 4mm, 5mm, and 6mm hinge offsets provide flexibility in choosing the drilling location. Using the drill, attach the jig for a fast and convenient drilling experience. Additionally, auxiliary positioning holes on both sides facilitate easy screw insertion into the plank.*Wide Applications: The 35mm hinge drilling jig is suitable for hinge installation, door hinge drilling and positioning, and carpentry opening aid. With a 35mm opening to 5mm edge distance, it adapts to most common hinges, making the installation of multiple cabinet doors effortless.*How to Use: 1. Install the 35mm drill bit and secure the limit ring. 2. Adjust the black fixing tool on the light fixture to fit the fixing plate size of 15-25mm. 3. Install the locator and drill into the designated position. 4. Tighten the drill handle and evenly press the hole to a depth of 12-13mm. 5. Drill 2mm screw holes on the left and right sides.Specifications:*Product Name: Jig Drill Guide Locator*Material: Aluminum Alloy*Color: Red + Black(As shown)*Size: (Approx. ) 175*150mm/6.88*5.9''*Hole Opener Size:35mm*Drill Bit:2mm*Clamping board thickness:15-25mm*Hinge offsets:3/4/5/6mm*Suitable for: Most common hinges, allowing you to easily install Cabinet doors*Quantity: 1set

• EASY OPERATION Featuring adjustable dials with offsets of 3mm, 4mm, 5mm, and 6mm, this jig simplifies the drilling process. Auxiliary positioning holes on both sides allow for effortless screw insertion, making it a breeze to work with.
• ALUMINUM ALLOY CONSTRUCTION Crafted from aluminum alloy, this 35mm drilling jig ensures precision manufacturing and longevity. providing reliable performance for all your cabinet installation needs.
• USER-FRIENDLY INSTRUCTIONS Clear step-by-step instructions guide you through the installation process. Simply secure the limit ring and adjust the fixing tool to ensure accurate drilling every time.
• WIDE APPLICATIONS for door drilling, carpentry openings, and hinge installations, this jig accommodates most common hinges. Its design makes it suitable for various projects around the house or workshop.
• it accelerates the process of installing doors and frames, enhancing time efficiency to enable swift and efficient installation.
