DA-VIP04 Digital Adjustable Overcurrent Ammeter(0.1-999A)(with Alarm)(CT 100A)

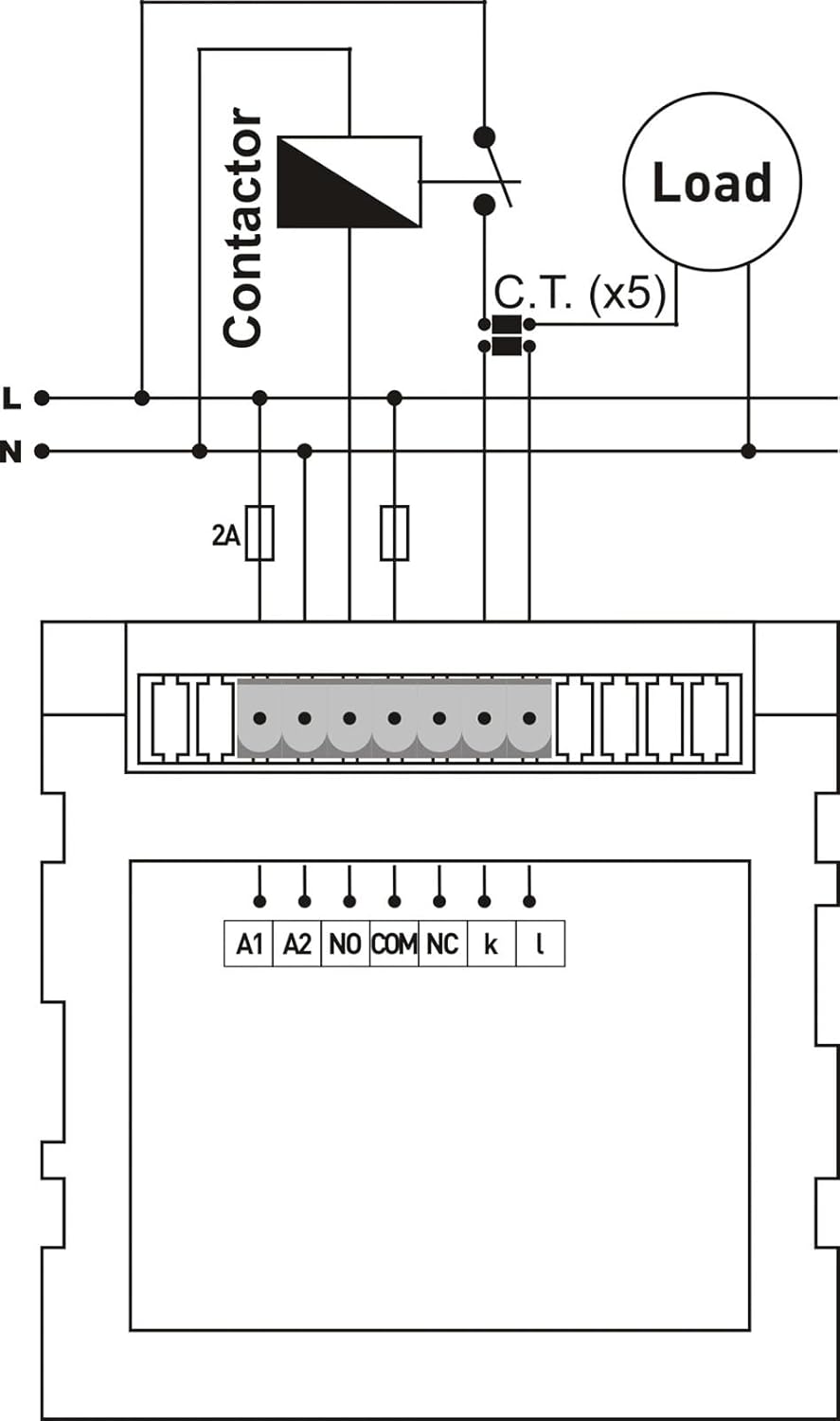

RelaysGeneralThe device is designed to prevent damage to the system by controlling the overcurrent in the system. The device can control the system according to the connection pattern or can only warning.Usage of device and working principleMake the connections according to the diagram.To enter the current value: Press the up and down buttons for about 3 sec. And enter the current value in the system. 3 seconds after entering the value. The device will record the current value and to the normal operation screen.To enter the high current value: Returning to the normal operation screenthen use the Up or Down button to enter the high current value. After entering the value, the device stores the value entered as high current set value.When the current rises above the set current value, the relay immediately stops, the relay LED (RLY) goes off and the fault LED [ERR] turns on, contact output is in NC position. When the current drops below 0.5A of the set value, the relay is triggered, the error LED goes off and the relay LED is turned on, contact output is in NO position.WarningsPlease use the device according to the manual.Don't use the device in wet.Include a switch and circuit breaker in the assembly.Put the switch and circuit breaker nearby the device, operator can easily.Mark the switch and circuit breaker as releasing connection for device.SpecificationsOperating Voltage(Un)....: 150V - 270V ACOperating Frequency.......: 50/60 Hz.<;4VAOperating Temperature..: -20°C.....+55°CMeasuring Range............: 100mA - 5.5AMeasurement Precision..: ±%2Display............: 3 x 20mm and 3 x 14mm displayConnection Type..............: Plug-in terminalCable Diameter.................: 1,5mm²Weight................................: Max. 300gr.Panel Hole Sizes................: 91x91mmMounting...........................: Panel front mounted<;2000meterDimensionsConnection diagram
