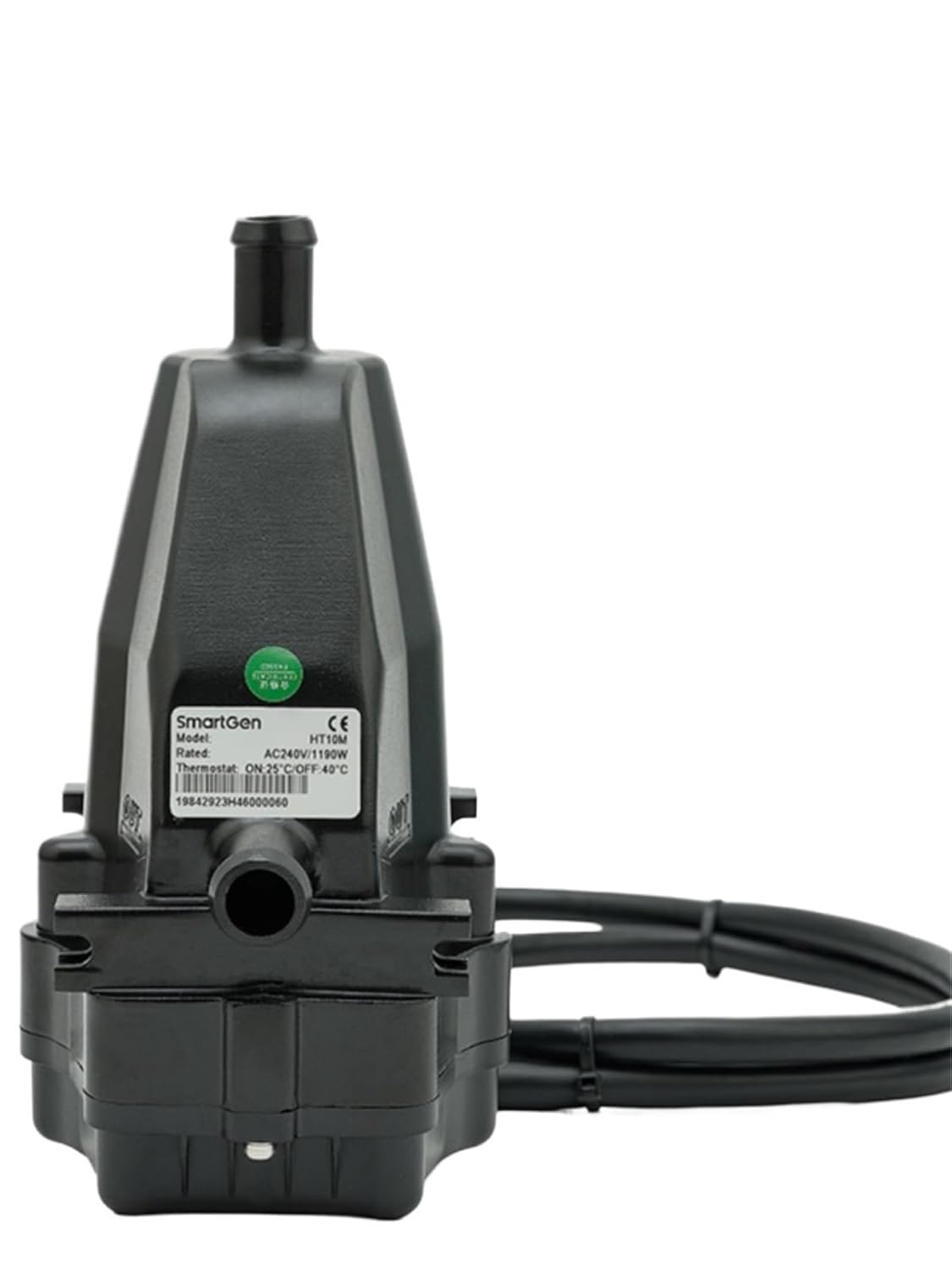

Diesel Generator Universal HT Series Water Jacket Heater HT10M Engine coolant preheating HT22M(HT22M)

Engine Water HeaterHT series water heaters adopt precision cast aluminum housing and flame retardant engineering plastic end caps. They are suitable for preheating coolant of various types of engines. They have multiple installation methods and are simple and convenient to use.When the operating environment of the engine is lower than 4°C, the engine coolant and lubricating oil may solidify into a solid state during the starting phase, losing its lubricating or cooling function, thereby damaging the engine. Therefore, when the operating environment temperature is lower than 4°C, the engine should be equipped with a heater to ensure normal starting and operation of the engine.The heater's internal heating tube and sealing caps are made of stainless steel for superior corrosion resistance. A light indicator clearly indicates power-on and heating status. Three heating temperatures are available (the standard model is 40°C; 50°C and 60°C heaters are available upon request).This product is suitable for various engines with a displacement of (0~13)L.Performance and featuresThe heating body shell is made of precision die-cast aluminum with special surface treatment, which has strong corrosion resistance and high and low temperature resistance.The internal heating tube and sealing end cover are made of stainless steel, which has strong corrosion resistance;The coolant temperature is controlled by the temperature control switch inside the heater, with simple structure and reliable performance;The panel is equipped with power, heating and overheat protection indicator lights to facilitate observation of the heater's working status;There is a sealing ring type drain valve at the bottom of the heater, which can be used when needed;When the ambient temperature is too high, you can use the test button to perform a test operation;An overheating temperature control switch is installed inside to provide protection against dry burning and overheating;The heater provides a variety of installation methods to suit different installation occasions;This product can work normally in an environment of -25℃.Function item parametersRated power 2200WRated voltage AC240VRated current 9.2AApplicable engine displacement (L) 7-13Constant temperature point (40±3)℃Temperature control switch action temperature disconnection: (40±3)℃ Reset: (25±6)℃Overheat switch action temperature disconnection: (110±3)℃ Reset: Manual reset ≤95℃Electrical strength AC 1.5KV 1minInsulation resistance ≥50MΩInlet and outlet size 3/4″ (Φ19mm)Withstand maximum water pressure 0.5MPaProtection grade IP54Vibration resistance (5~8)Hz; amplitude ±7.5mm; three axes; (8~500)Hz; acceleration 2g; three axes;Shock resistance: half sine wave; peak acceleration 50g; three axes;Anti-dry burning manual resetManual testing hasDimensions (mm): 208*150*177Weight (kg) 1.2
