Digital Hi-Pot Tester RK2670AM, 110V 5KV AC Withstand Voltage Tester Hi-Pot Insulation Resistance Testing Tool with LED Digital Display

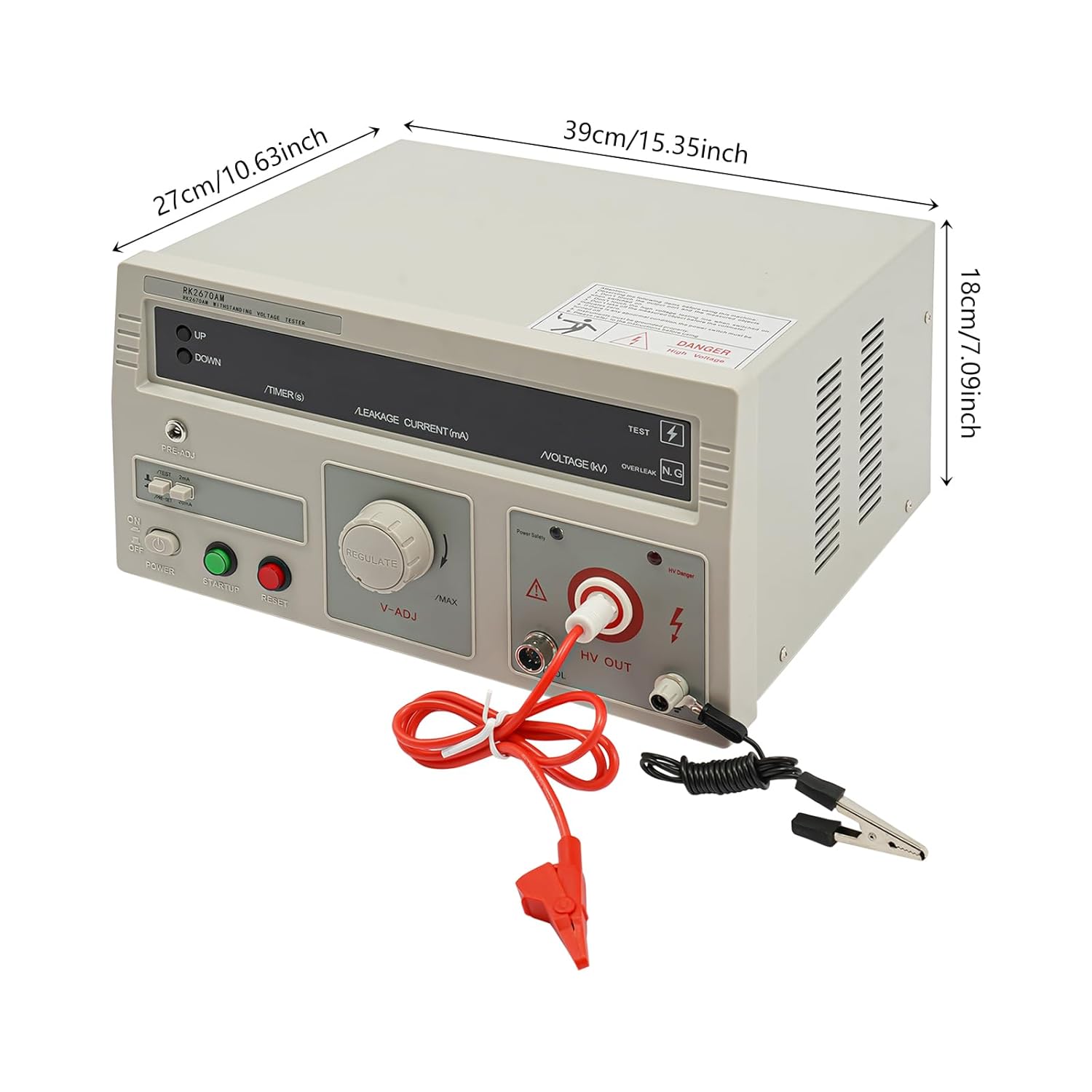

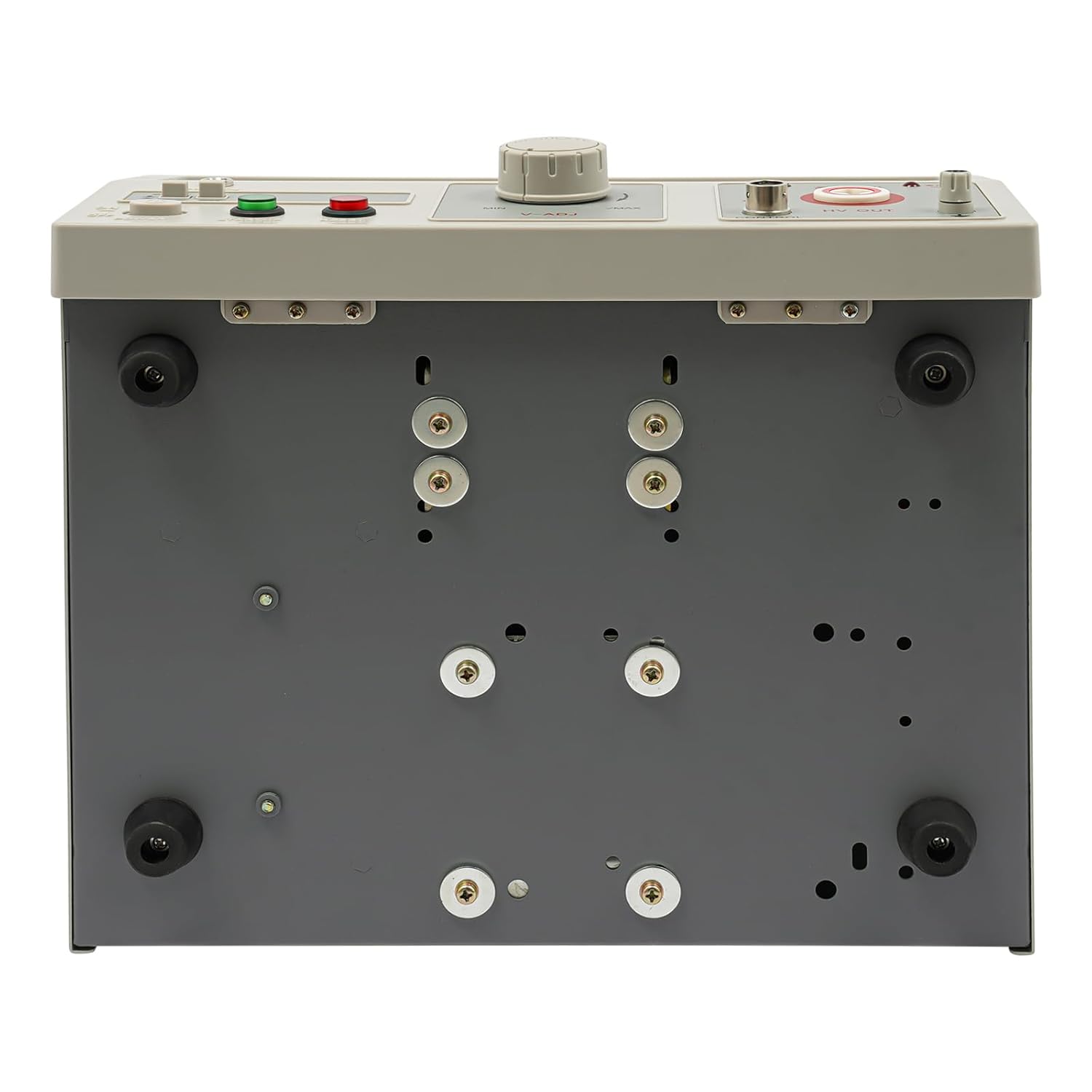

Details Four Rubber Anti-slip Feet:They effectively enhance the stability of the device and prevent slipping during testing,ensuring measurement accuracy and operational safety. Indicator Lights:They are used to visually display the working status and test results of the equipment to ensure that the operator can understand the test process in time and make appropriate judgments. LED Digital Tube Display:It adopts high-brightness LED digital tubes to display the timer,voltage,and leakage current value for convenient observation. Quick Reset Function:The red reset button is designed for a one-key reset,which quickly restores the initial state of the device and saves debugging time. High-voltage Test Rod:It is used to apply a high voltage to the equipment under test during testing to check its insulation and voltage withstand capability. Specifications Model:RK2670AM Material:Iron,Rubber Process:Painting Style:Modern Color:Grey Mount Type:Tabletop Shape:Rectangular Assembly Required:Yes Power Source:Corded Electric Plug Type:US Standard Display Type:High Brightness LED Digital Tube Display Adjustable Test Voltage(AC):0~5KV±(5%+3 Digits) Leakage Current(AC):0~2/20mA±(5%+3 Digits) Testing Time:0.0s~999s,0.0s=Continuous Testing Operating Ambient Temperature:0-40℃/32-104℉ Timing:0~999s;Manual Control Humidity:<75%RH Power:100VA Input Voltage:110 V Output Voltage:5KV Test Current:AC 20mA Transformer Capacity:100VA Power Cord Length:About 1 m/3.28ft Product Size:46*26*34cm/18.11*10.24*13.39in Package Size:40*37*27cm/15.75*14.57*10.63in Gross Weight:11.4kg/25.13 lbs Net Weight:10.83kg/23.87 lbs Package Included 1×Voltage Withstand Tester 1×High-voltage Test Rod 1×High-voltage Test Line 1×Ground Wire 1×Power Cord Notes 1.Please carefully check if the size is suitable before placing an order. 2.Please always make sure the tester is properly grounded before performing any tests.A good grounding will effectively prevent safety hazards caused by electrical leakage and protect the operator from electric shock. 3.The GND port and the power supply GND port should be connected well.The instrument must be placed on the worktable of conductive materials. 4.Please counterclockwise circumvolve the“V-ADJ”rotary switch to the maximum before turning on the test instrument.Before starting a test,please double-check and set the correct test voltage.Incorrect voltage settings may result in damage to the equipment under test or inaccurate test results. 5.Before presetting all functions,please reset the instrument.Please do not connect the test port and test wire when doing the test.Please do not connect the HV output port with the shield box or GND wire to avoid instrument damage. 6.Please turn off the power when accidents take place.Please examine and repair the device when the indicator or annunciator is out of order. 7.When the tester is in the test conditions,the test line,the test probes,the output end,and the test objects are all under high pressure;do not touch!Please make sure that all non-operators are kept away from the test area and observe the necessary safety distance regulations.This prevents injury to uninvolved persons from accidental exposure to high voltages. 8.Please operate carefully to avoid hazards when taking the remote test.Please wear insulation gloves,and stand on an insulation mat(not included).The operator can not wear clothes with metal decoration or wear metal accessories.

• 【Premium Materials】The withstand voltage tester is mainly made of premium iron with a painting process, which is sturdy, not easy to deform, wear-resistant, rust-resistant, and has a long service life.
• 【Adjustable Voltage and Timing Function】The insulation resistance testing tool has a built-in adjustable voltage function (0~5KV ±5%+3 Digits), which can easily cope with a variety of voltage testing requirements, and improve the flexibility and applicability of testing. It can be timed within 0~999s to ensure the accuracy of the test time and meet different test requirements.
• 【Protection Guard】The digital hi-pot tester has ground protection to enhance safety and stability during testing. The high-voltage output is equipped with eye-catching warning signs and indicators, effectively reminding the operator to pay attention to safety and preventing accidents.
• 【Easy to Operate】The digital voltage tester's intuitive operator panel design and bright LED digital tube make it easy to operate, and even novices can get started quickly. The green start button design is simple and quick to operate, enhancing work efficiency and reducing human error.
• 【Application】This hi-pot tester is applicable to components: diodes, transistors, high-voltage silicon stacks, various electronic transformers, connectors, high-voltage electrical appliances, etc.; household appliances: TV, refrigerator, air conditioner, washing machine, electric blanket, charger, etc.;instruments and meters: oscilloscopes, signal generators, DC power supplies, switching power supplies, and other types of complete machines; lighting appliances: road lights, stage lights, handheld lights, etc.; wire and cable: high-voltage lines, cables, cables, etc.
