Dual-Channel Picture-In-Picture Video Mixer With BNC Video Inputs/Output

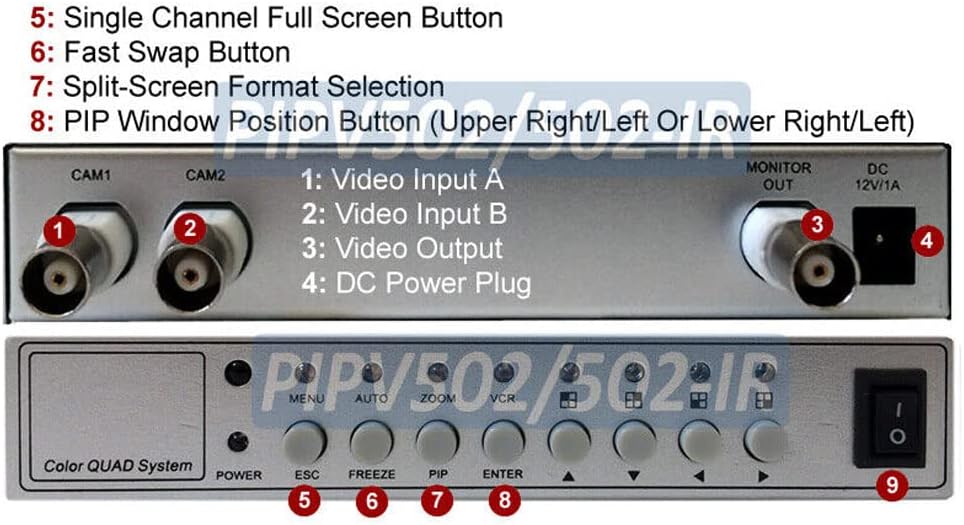

2-Channel Picture-In-Picture BNC Video Mixer With IR Remote This low-cost PIP video generator provides users with 2 video feeds displayed on one screen for monitoring/recording purpose. The Picture-In-Picture split screen style and PIP position can be controlled by using the supplied IR remote controller or push buttons on the front panel. Dual-Channel Frame Synchronizer This PIP screen processor system is a real-time dual-channel frame synchronizer. Both mixed video inputs are synchronized accurately and displayed simultaneously for smooth and sharp pictures. 2-Channel Split Screen Display Both video input channels can be presented in the following 13 matrix screen modes:Single-channel full screenPIP window screen on upper-left cornerPIP window screen on upper-right cornerPIP window screen on lower-left cornerPIP window screen on lower-right cornerHorizontal equal-split screen with top/bottom video windowsVertical equal-split screen with left/right video windowsPicture-by-picture screenQuad screen windowFast Swap Between Main/PIP Channel Main video screen and PIP screen can be exchanged instantly by simply pressing the swap button on the front panel or IR remote. This hotkey function is designed to provide fast switching between the main channel and the sub video channel.IR Remote Control This PIP video controller can also be controlled via using the supplied IR remote for ease of operation at distance.Last Memory The last-minute PIP screen mode will be displayed right away after power cycling or power outage.Daisy Chain Setup This PIP generator can be used standalone or cascaded together to process more video inputs or combined with other mixers or A/V switches.

• Professional picture-in-picture video generator with advanced video processing.
• Both video input channels can be presented in 13 matrix screen modes.
• Selectable PIP mode for 2 channels or full-screen mode for each individual video channel.
• Fast video input swap between main video channel and the PIP channel via IR remote or manual push button.
• Easy installation and fast setup.
• Real-time dual-channel output with sharp and clear picture quality.
• Featured with dual-channel frame synchronizer for re-generating all sync signals from inputs with smooth video output.
• The current screen mode will be memorized after the power-off. No need to select the desired screen mode again after the power-on.
• Multiple PIP units can be daisy chain connected together to process more video inputs or combined with other video mixers or A/V switches to form a large display system.
• Supports all NTSC and PAL video systems.
