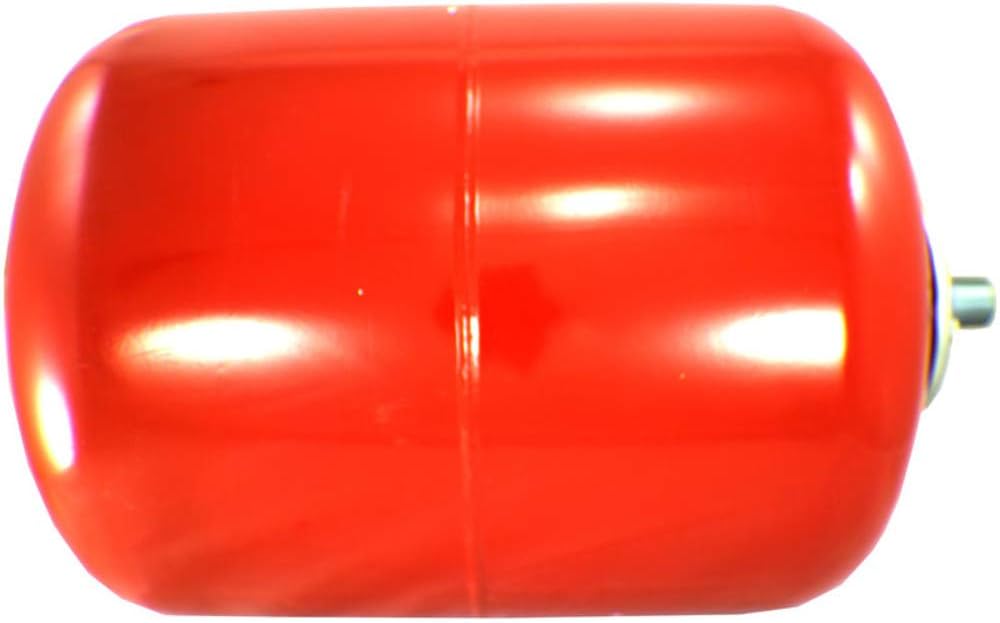

Duda Energy ExpTank-050VL-S 50 L/13.2 gallon Red Expansion Tank for Solar Water Heater Systems Thermal Pressure Protection

Expansion tanks are essential for solar water heater systems. The Red expansion tank is used for relieving pressure build-up in the closed loop system. This helps keep the pressure consistent and relieve pressure from the piping as the working fluid increases in temperature. Should the solar system go into overheat mode and shut down the circulation pump, the expansion tank is essential for preventing the pressure valve from blowing out the working fluid. The Red Duda Solar expansion tank is fitted with a special high temperature EPDM membrane made in Italy which can withstand the high temperatures of the solar systems. The size of the expansion tank needed depends on the total amount of fluid used in the closed loop (maximum possible volume). Some data regarding common fluid volumes in the solar systems is in the chart below. As an example, a standard 300 liter solar system has a 30 tube collector, 100 feet of 1/2" stainless steel tubing and a 300 liter tank (25m coil) for a total of ~7 liters of fluid volume, requiring at least an 8 Liter expansion tank.

• Capacity: 50 liter/13.2 gallon connection: 1 inch NPT pre-charge pressure: 2 bar/29 psi
• Membrane Type: special high temperature EPDM (made in Italy), max fluid temperature: 130°c (266°f)
• Color: red, max pressure: 10 bar (145 psi), tank material: deep draw cold steel
• Membrane certifications: NSF51, hygienic certified, approved by EU and USA institutions
• Flange & connections material: St37, galvanized Carbon steel
