DX 2 Antenna Splitter Charger Black 2dl2wsb (B)

Specifications: ■ Usage band: 10-3,224MHz 2K4K8K broadcast compatible ■ Input: 3-layer shielded 2C coaxial cable with L-shape plug 2m ■ Output: 3 shielded 2C coaxial cable with F type fittings 0.5m ■ Power transmission function: All terminals are conductive ■ Construction: Synthetic resin case, internal die-cast case ■ External dimensions: 1.3 x 1.7 x 0.7 inches (32 x 44 x 19 mm) (main un■ Weight: 0.11kg ■ Color: Black 【Description】 ■ All terminal 2 splitter with input and output cables. Split TV signal into 2 ■ Supports 2K4K8K (~3224MHz) It can also be used on traditional 2K broadcast TVs. ■ Input side L-type plug 2C cable with 2m Output side 2C cable with F plug 0.5m ■ Uses triple shielding low-loss ultra-fine cable to eliminate outside noise. ■ The plug is gold-plated and shielded construction. Prevents contact failure and eliminates external noise. ■ Body/cable color, black type. ■ Can also be used with cable TVs. Product inquiries Elecom General Information Center TEL. 0570-084-465 FAX. 0570-050-012 Reception Time / 10:00 - 19:00 24/7

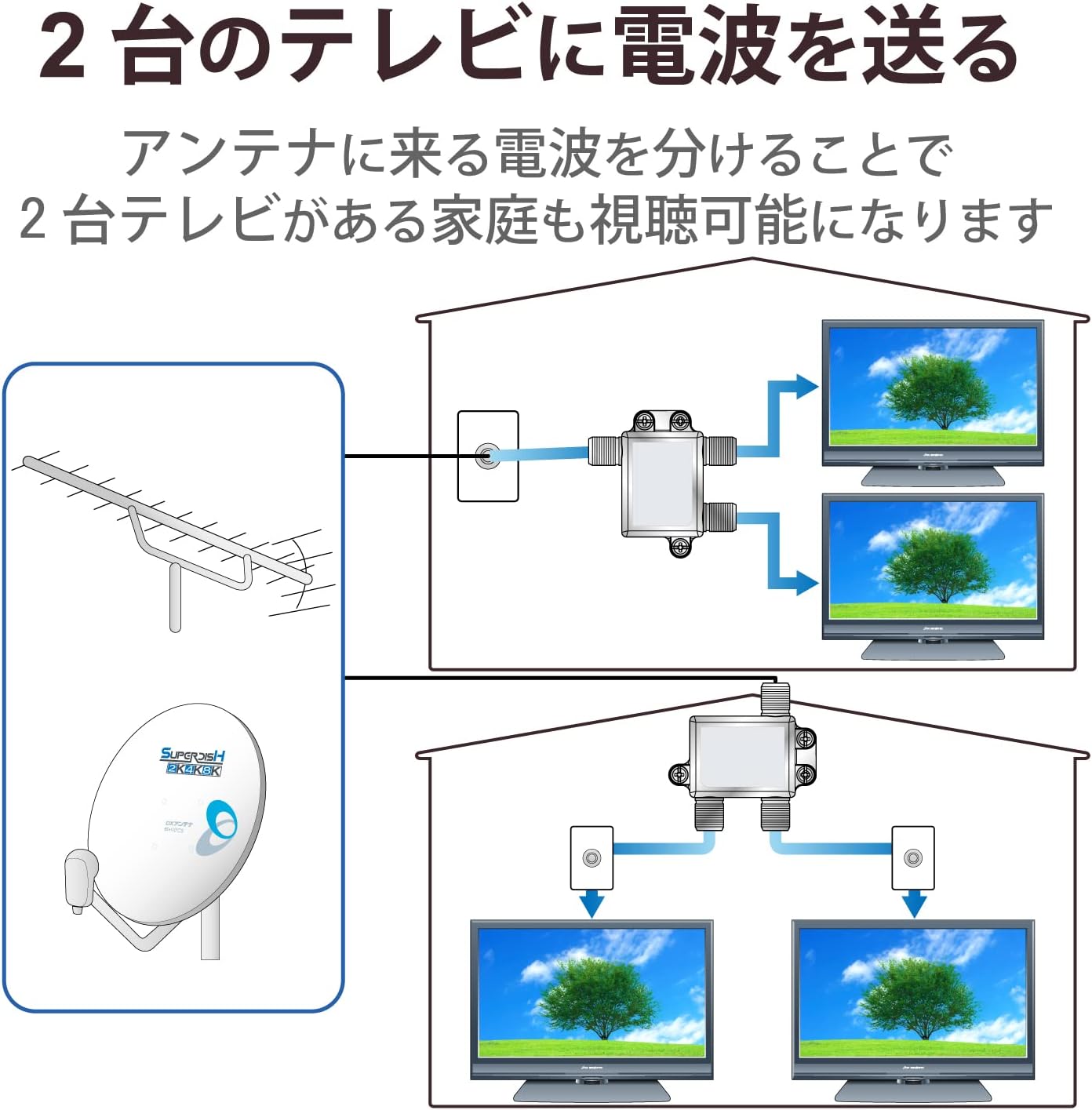

• All terminal 2 splitter with input and output cables. Split TV signal into 2
• Supports 2K4K8K (~3224MHz) It can also be used on traditional 2K broadcast TVs
• 2C cable with 2m L plug in input side. Output side 2C cable with F plug 0.5m

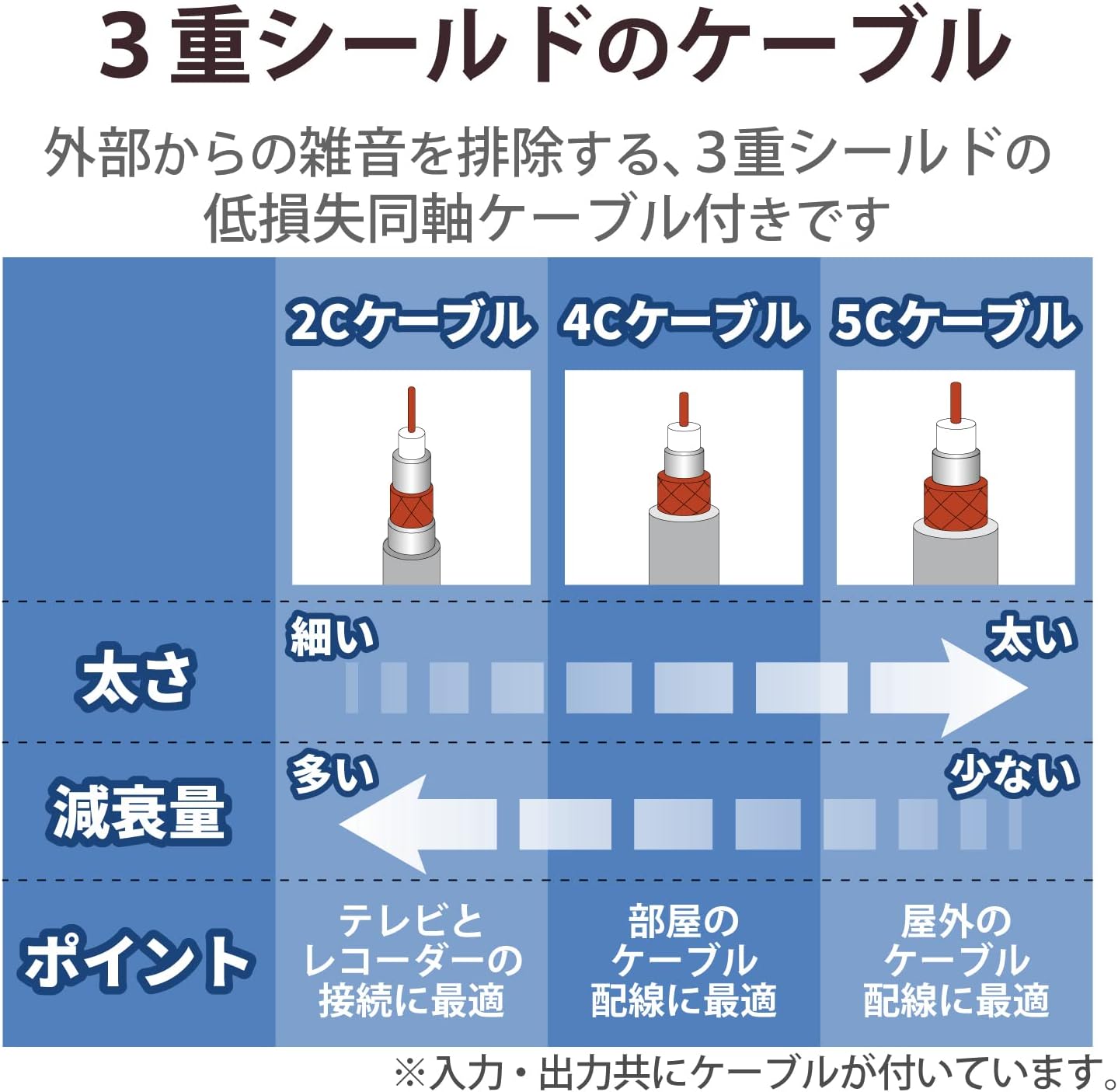

• Triple shielded low-loss ultra-fine cable to eliminate outside noise
• Gold-plated plug construction Prevents contact failure and eliminates external noise
