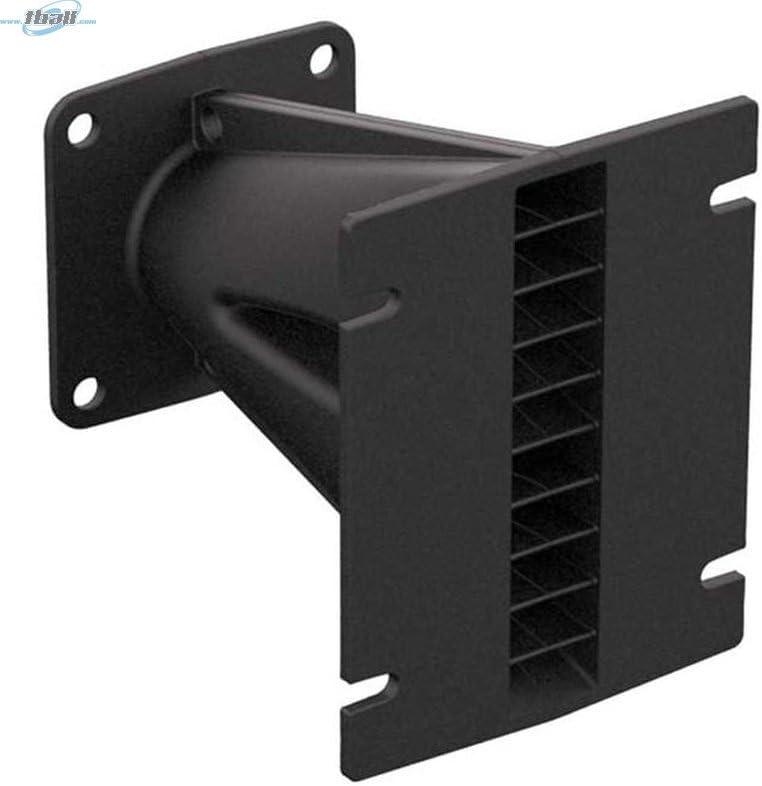

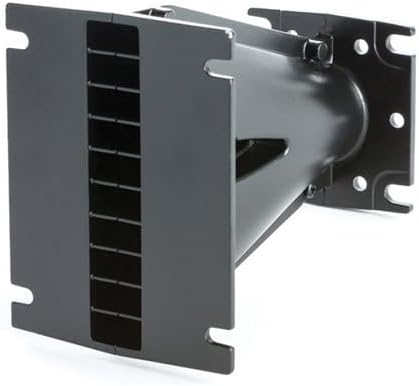

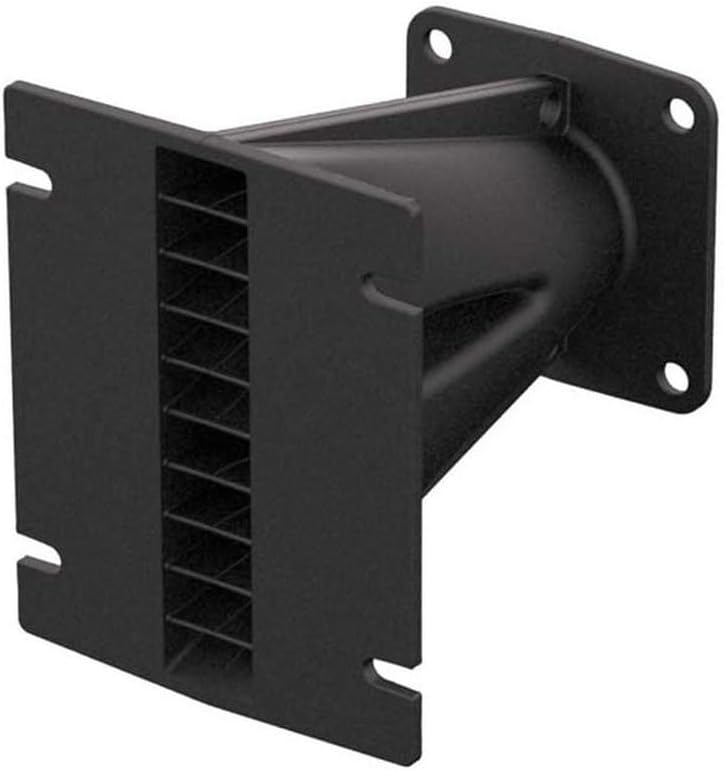

Eighteen Sound XG10.1 Line Array Aluminium Horns Wave Guide for 1-inch Compression Driver Die-Cast Aluminum Construction

"The XG10 is a 1.0 inch throat entry line-array waveguide. The specific transmission line acoustical design minimizes internal reflections and acoustical losses, while throat shape has been optimized for lowering air distortion. The XG10 has been optimized for obtaining a 10° vertical dispertion angle, while the horizontal coverage angle could vary from80° to 120° depending on the specific cabinet design. The waveguide has been developed to obtain optimum performances when it will coupled with 1.0 inch exit Eighteen Sound high frequency compression drivers. || KEYFEATURES || 1.0-inch entry line-array source || 10Degrees vertical coverage angle || Transmission line acoustical design minimizes internal reflections and acoustical losses || Throat shape optimized for lowering air distortion || Compact size for high array ability || Die-cast aluminum construction || SPECIFICATIONS || Throat Diameter 25,4 mm (1.0 in) || Horizontal Coverage (-6dB) 100° nominal || Vertical Coverage (-6 dB) 10° nominal || Usable Frequency Range Above 1200 Hz || Sensitivity 111 dB || Frequency Range 1000 Hz ÷ 18KHz || Material (1) Die-cast aluminum || Mounting information Flange Height 101 mm (3.97 in) || Mouth Width 87 mm (3.42 in) || Depth 130 mm (5.11 in) || Flange Mounting 4 screws ø M5 || Gross weight 1,0 Kg (2.21 lb) || Net weight 0,4 kg (0,88 lb) || General :: Product type : Wave guide || Brand : Eighteen Sound || Product code || Information || Manufacturer sensitivity : 111 dB || Bandwidth : 1000÷18000 Hz || Datas :: || Weight : 0.4 kg || Dispersion : 100° x 10° || Entry dimension : 1.0 inch || "

• "KEYFEATURES 1.0-inch entry line-array source || 10Degrees verticalcoverage angle || Transmission line acoustical designminimizesinternal reflections and acoustical losses || Throat shape optimized forlowering air distortion || Compact size for high arrayability || Die-cast aluminumconstruction || "

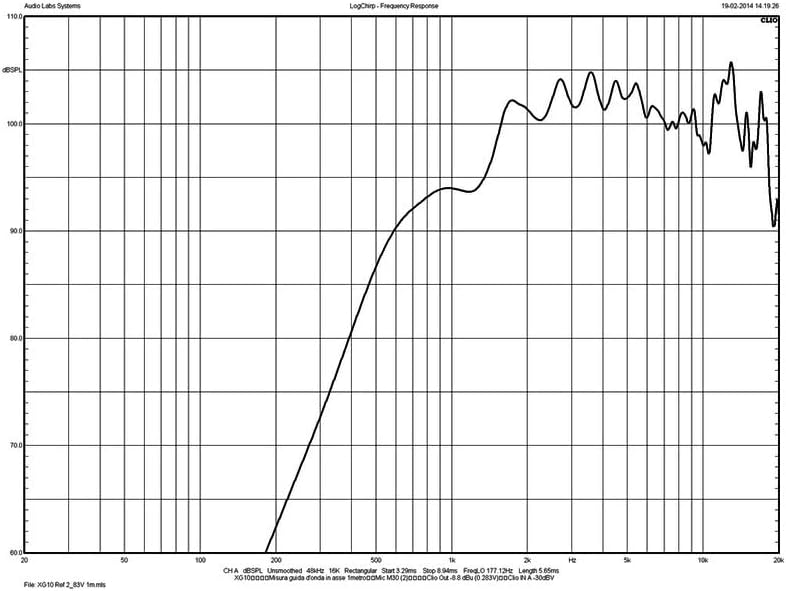

• SPECIFICATIONS :: Throat Diameter 25,4 mm (1.0 in) || Horizontal Coverage (-6dB) 100° nominal || Vertical Coverage (-6 dB) 10° nominal || Usable Frequency Range Above 1200 Hz || Sensitivity 111 dB || Frequency Range 1000 Hz ÷ 18KHz || Material (1) Die-cast aluminum ||

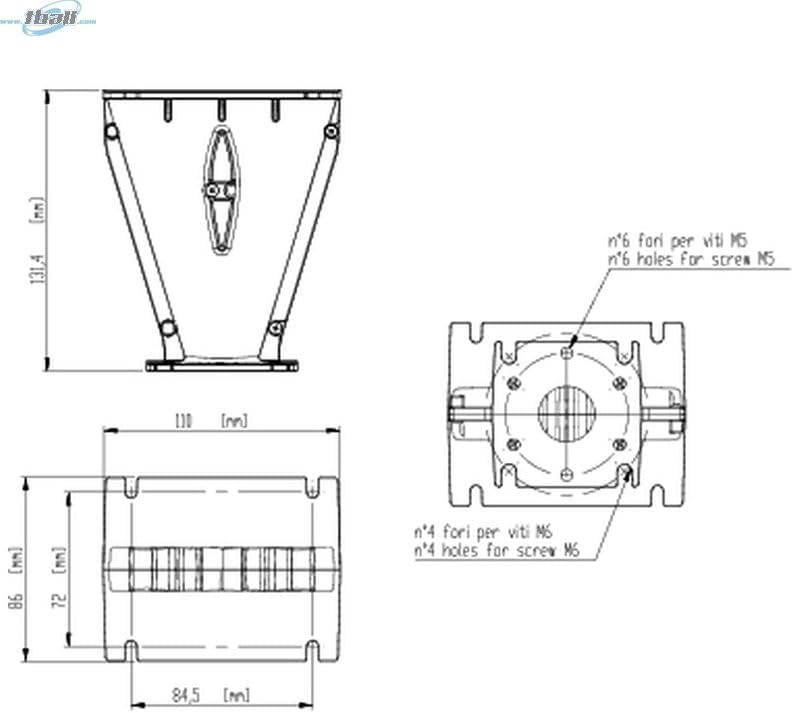

• Mounting information Flange Height 101 mm (3.97 in) || Mouth Width 87 mm (3.42 in) || Depth 130 mm (5.11 in) || Flange Mounting 4 screws ø M5 || Gross weight 1,0 Kg (2.21 lb) || Net weight 0,4 kg (0,88 lb) ||

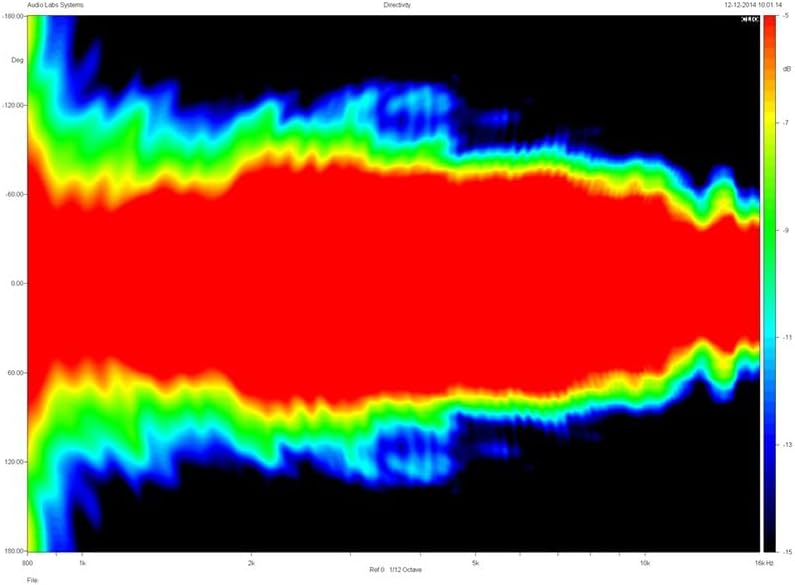

• General :: Product type : Wave guide || Brand : Eighteen Sound || Product code || Informations || Manufacturer sensitivity : 111 dB || Bandwidth : 1000÷18000 Hz || Datas :: || Weight : 0.4 kg || Dispersion : 100° x 10° || Entry dimension : 1.0 inch ||
• The XG10 is a 1.0 inch throat entry line-array waveguide. The specific transmission line acoustical design minimizes internal reflections and acoustical losses, while throat shape has been optimized for lowering air distortion. The XG10 has been optimized for obtaining a 10° vertical dispertion angle, while the horizontal coverage angle could vary from80° to 120° depending on the specific cabinet design. The waveguide has been developed to obtain optimum performances
