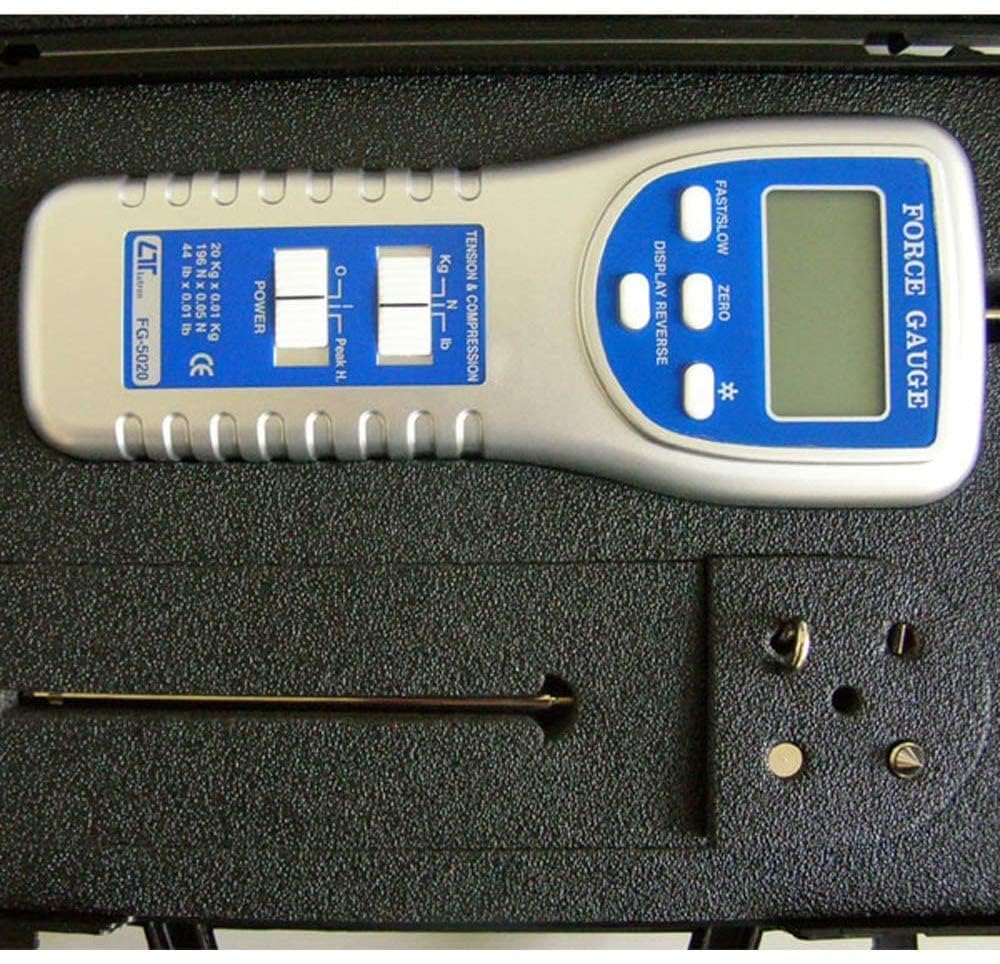

Electronic Digital Force Gauge (Range: 20.00 Kg/44.10 LB/196.10 Newton) for Tension Spring | Digital Force Gauge | Bearing Torque Along with Factory Calibration Certificate Model: FG-5020

Features: Large LCD display with back light | 20 Kg, wide capacity, high resolution, high accuracy High Repeatability | 3 kind display unit : g, oz, Newton | Tension & compression capability | Peak hold ( Max. load ) can be held in display during make tension or compression measurement | Zero button can operate both for normal measuring & the " peak hold " operation | Full capacity zero (tare) control capability | Fast/Slow response time push button | Positive or reverse display direction select | Full line accessories ( adapters ) are included | Hand held & stand mounted gauges are available | Low power consumption gives long battery life | Build in low battery indicator | Microprocessor circuit & exclusive load cell transducer | Over load protection | RS-232 computer interface | Built-in DC 9V power adapter input socket

• Measuring Range: 20.00 Kg/44.10 LB/196.10 Newton; Resolution: 0.01 Kg/0.01 LB/0.05Newton | Min. Display: 0.02 Kg/0.07 LB/0.3 Newton | Accuracy: ± (0.5 % + 2 digits), within 23± 5 |
• Fast Update Time: Approx. 0.2 second; Slow Update Time: Approx. 0.6 second | Over Range Indicator: Display show when in over range status | Data Output: RS-232 serial computer interface |
• Overload Capacity: Max. 30 kg | Full Scale Deflection: Approx. 0.4 mm max | Zero/tare Control: Max. full capacity | Circuit: Exclusive microprocessor LSI-circuit | Power Supply: 6 x 1.5 V AA (UM-3) size battery | Power Consumption: Approx. DC 28 mA | Transducer: Exclusive load cell |
• Operating Temperature: 0 to 50℃ (32 to 122℉) | Operating Humidity: Less than 80% RH | Dimensions: 215 x 90 x 45 mm ( 8.5 x 3.5 x 1.8 inch ) | Weight: 650 g Approx | Mounting Holes: Main instrument with mounting holes are provided on the back case, easy stand mounting.
• Supply Scope: 1 Unit of FG-5020 Digital Force Gauge, Flat-Head Adapter, Hook Adapter, Cone Head adapter, Chisel Head Adapter, 120mm Extension Rod, Instruction Manual and Factory Calibration Certificate, Carrying Case | Applications: Bearing Torque, Torsen Spring, Tension Spring, Burst Testing of Packaging Materials, Switch Activation Force Testing, Closure torque Testing, Compression Spring, Tablet Crush, Wire Terminal, Peel Testing.
