Eujgoov 12V 200mm Stroke Linear Actuator 1500N Heavy Duty Electric Motion Actuator for Sofa Bed Lifting System

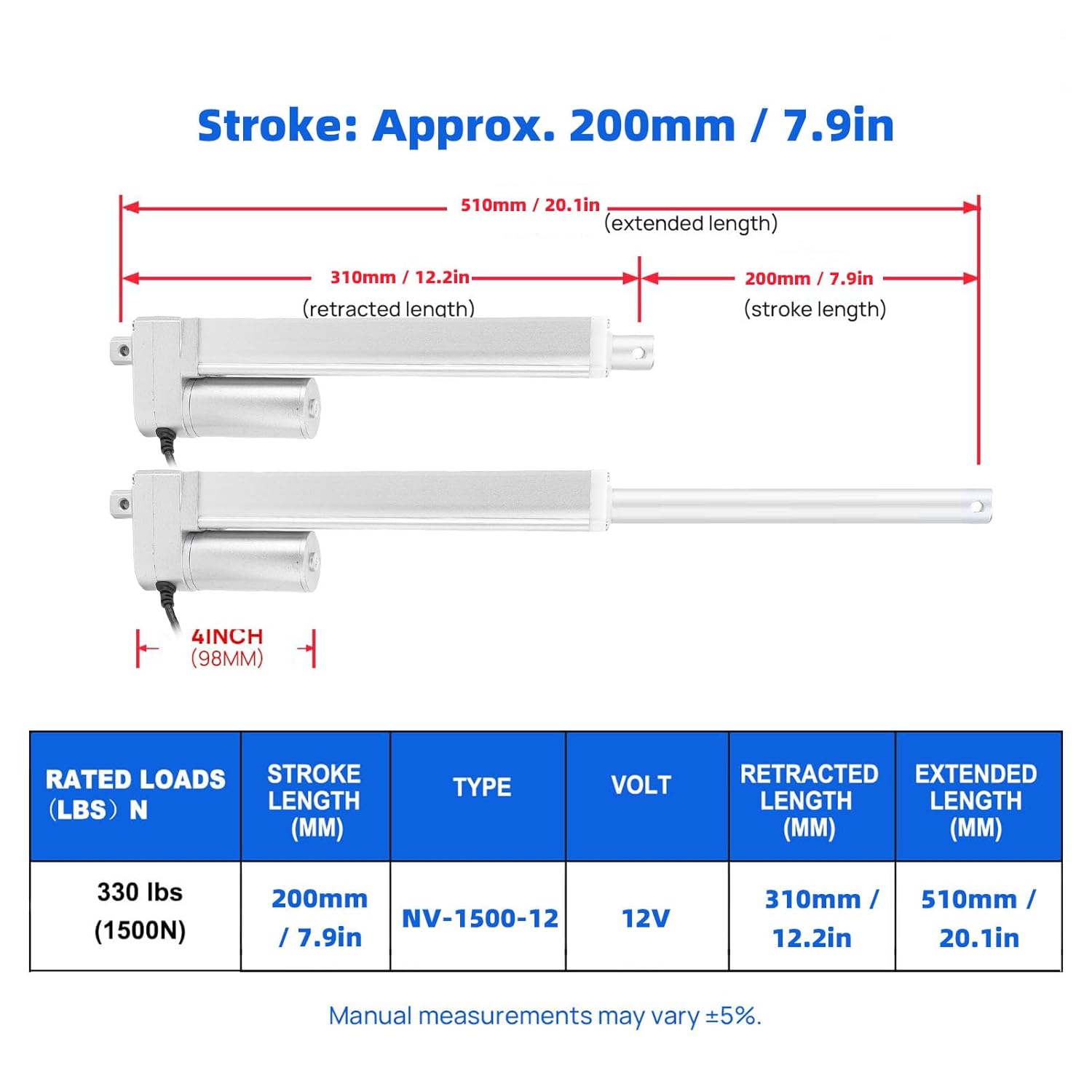

Specification: Item Type: Linear Actuator Product Material: Aluminum Alloy Maximum Push Pull Force: 1500N (330LB) Standard Stroke: Approx. 200mm / 7.9in Hole Distance When Fully Retracted: Approx. 310mm / 12.2in (Minimum Installation Size) Hole Distance When Fully Extended: Approx. 510mm / 20.1in No Load Speed: 2.5MM/s Ambient Temperature: -20℃ to +60℃ Standard Protective Level: IP54 Features: Built in Stroke Switch; Low Noise Design, less than 40dB Description: This linear actuator is an electric drive device that converts the rotational motion of an electric motor into the linear reciprocating motion of a actuator. It is suitable for use as an actuator in various simple or complex process flows to achieve remote control, centralized control or automatic control. It is suitable for electric beds, electric sofas, electric display stand lifting rods, industrial electric lifting system, camera stands, projectors, and wedding system. Working principle: After the motor is reduced by gears, it drives a pair of screw nuts, converting the rotational motion of the motor into linear motion. The push rod action is completed by the forward and reverse rotation of the motor. Complex actions such as rotation and shaking can be accomplished through various mechanisms like levers, joysticks or connecting rods. The stroke can be increased or extended by changing the length of the lever arm. PackageList: 1 x Linear Actuator

• Heavy Duty Construction: Composed of alloy steel shaft and metal gears, it can push or pull objects weighing up to 330 lbs. The forward and reverse movements of the actuator are controlled via a controller (not included)
• Durable and Weather Resistant Design: This linear actuator features an aluminum alloy housing, making it robust and long lasting. With an IP54 protective rating, it is dust proof, water proof, and rustproof, making it suitable for outdoor use
• Quiet Operation with Upgraded Motor: This electric linear actuator adopts upgraded motor design, producing low noise levels of 40dB, ensuring stable and quiet movement while providing strong self locking force and durability
• Built-In Safety Features: The actuator is equipped with built in limit switches that automatically cut off the power when fully extended or retracted. The safe lock allows for travel locating at any position, ensuring dependable use
• Comprehensive Protection System: This electric linear actuator is equipped with over current guard, overload guard, over voltage guard, over discharge guard, short circuit guard, and shock prevention guard

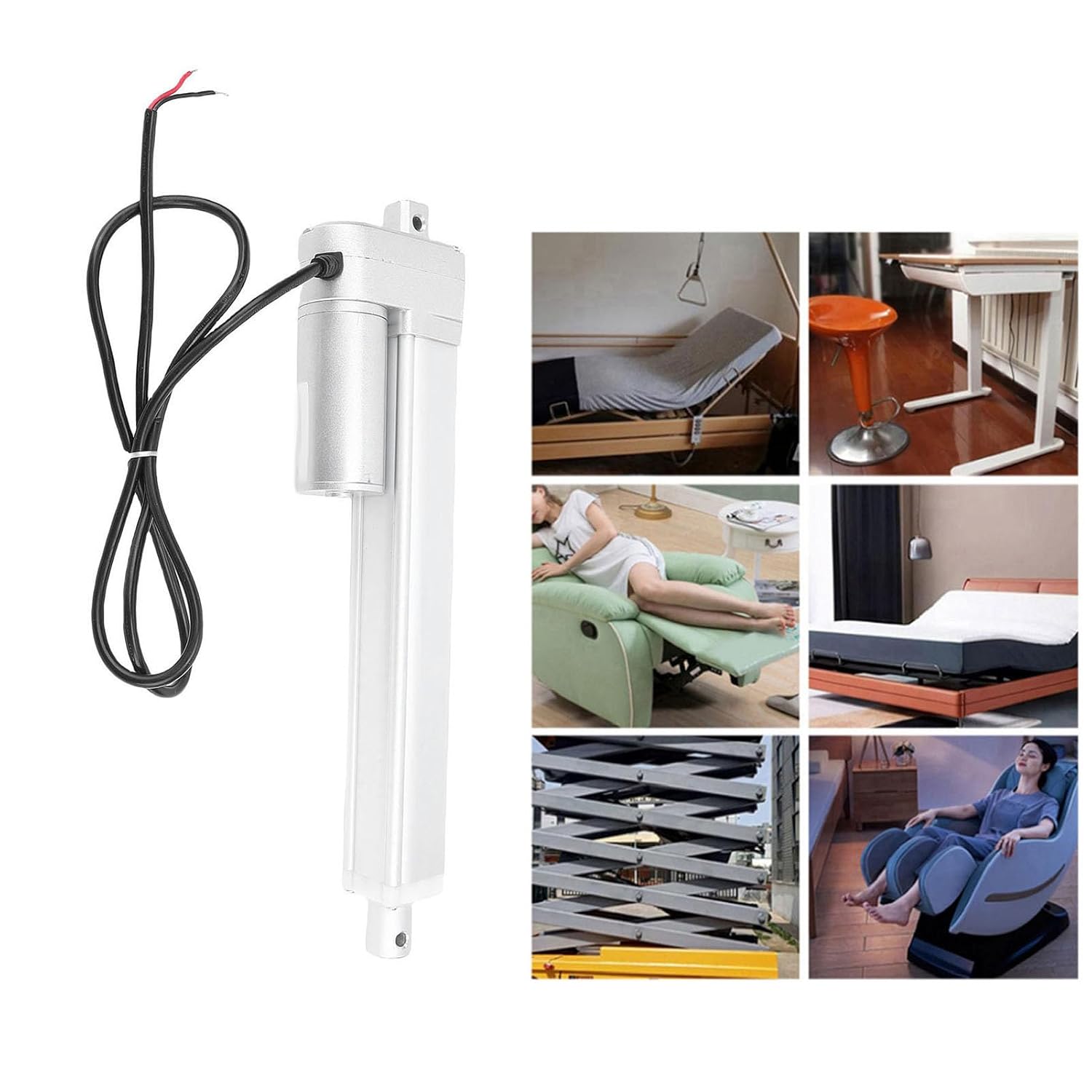

• Versatile Application Range: Suitable for electric beds, electric sofas, electric display stand lifting rods, industrial electric lifting systems, camera stands, projectors, and wedding systems with 200mm stroke length and 2.5mm/s no load speed
