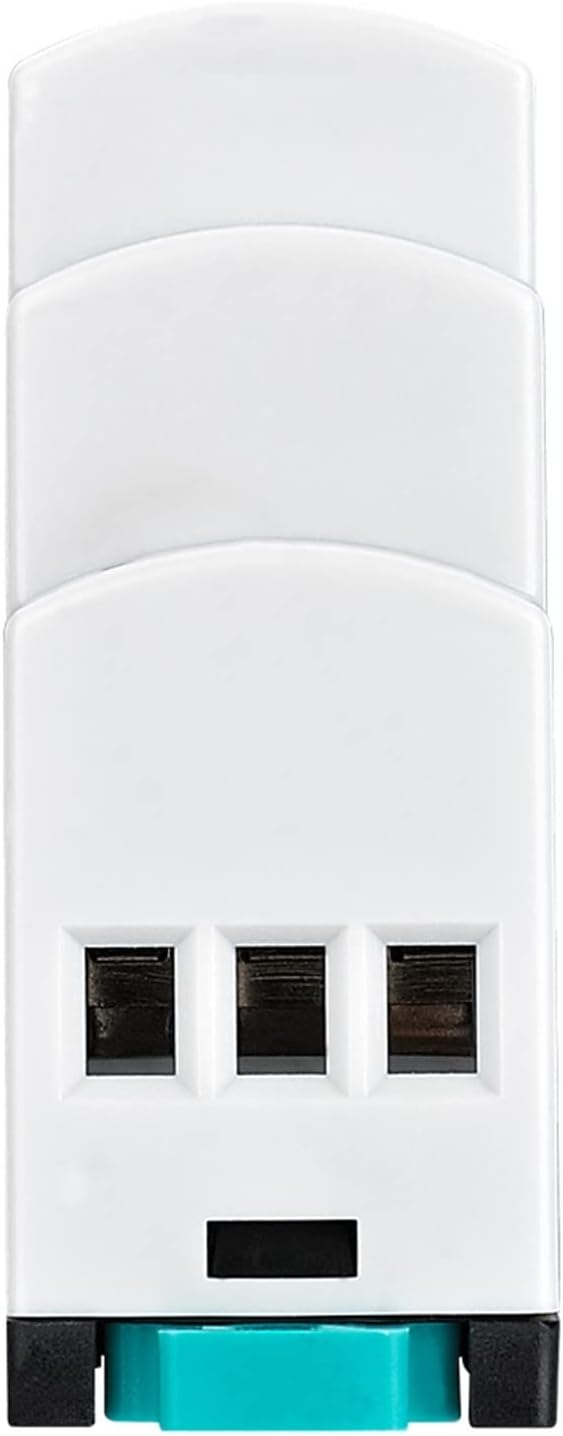

FKV-12 3 * 380VAC Non-Neutual Three-Phase Phase Failure, Asymmetry Relay

relayGeneralFKV-12 phase failure relays are designed to avoid any failure of three phase motors caused from network.Usage and Working PrincipleMake the connections of the device in accordance with connection scheme.When power is on and phases in normal values, relay pulls and relay led is switched on. In this case, contact out is (NO)3. Any of the phases increases or decreases than normal values, relay releases and led switches off. In this case contact out is (NC)1 .MaintenanceSwitch off the device and release from connections. Clean the trunk of device with a swab. Don't use any conductor or chemicalmight damage the device. Make sure device works after cleaningWarningsPlease use the device according to the manual.Don't use the device in wet.Include a switch and circuit breaker in the assembly.Put the switch and circuit breaker nearby the device, operator can reach easily.Mark the switch and circuit breaker as releasing connection for device.SpecificationsOperating Voltage(Un)....: 3 x 380V AC Operating Frequency.......: 50/60 Hz.<;;6VAOperating Temperature..: -20°C.....+55°CAsymmetry...........: ±%40Display..................: On led & Out ledConnection Type..........: Terminal connectionContact....................:5A/250V AC (Resistive Load)Cable Diameter.................: 1,5mm²Weight................................: Max. 110gr.Mounting....................: Assembled on the din rail<;;2000meterDimensionsConnection diagram
