H/D VGA AV Controller Board with 6.5 inch 640x480 800nits G065VN01 V2 Reisitive Touch Sensor LCD Screen

LCD Controller Board: Input Power Adapter: 12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: H/D VGA AVReversing: Support Automatically Switch To AV2 When Connector ACC to 12VOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 91mm x 66mm x 12mm6.5" G065VN01 V2 640X480 LCD With Resistive Touch Sensor:Display Mode TN, Normally White, TransmissiveResolution 640RGB)×480Outline Size 153 × 118×11.2 (H×V×D)mmDisplay Area 132.48× 99.36 (H×V)mmBrightness 800 cd/m²Contrast Ratio 600:1Viewing Angle 80/80/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface 20 pins LVDS (1 ch, 6/8-bit) , ConnectorBacklight WLEDInput Voltage 3.3V (Typ.)Packing list :1× LCD Controller Board VS-TY2662-V11× 6.5inch G065VN01 V2 640X480 LCD With Resistive Touch Panel1× LVDS Cable1x Backlight board1× Keyboard With Cable

• 【 G065VN01 V2 LCD Screen 】800 nits high brightness display with 640x480 resolution,Outline Size 153 × 118×11.2 (H×V×D)mm,Display Area 132.48× 99.36 (H×V)mm,Viewing Angle 80/80/70/70 ,Signal Interface 20 pins LVDS (1 ch, 6/8-bit) , Connector

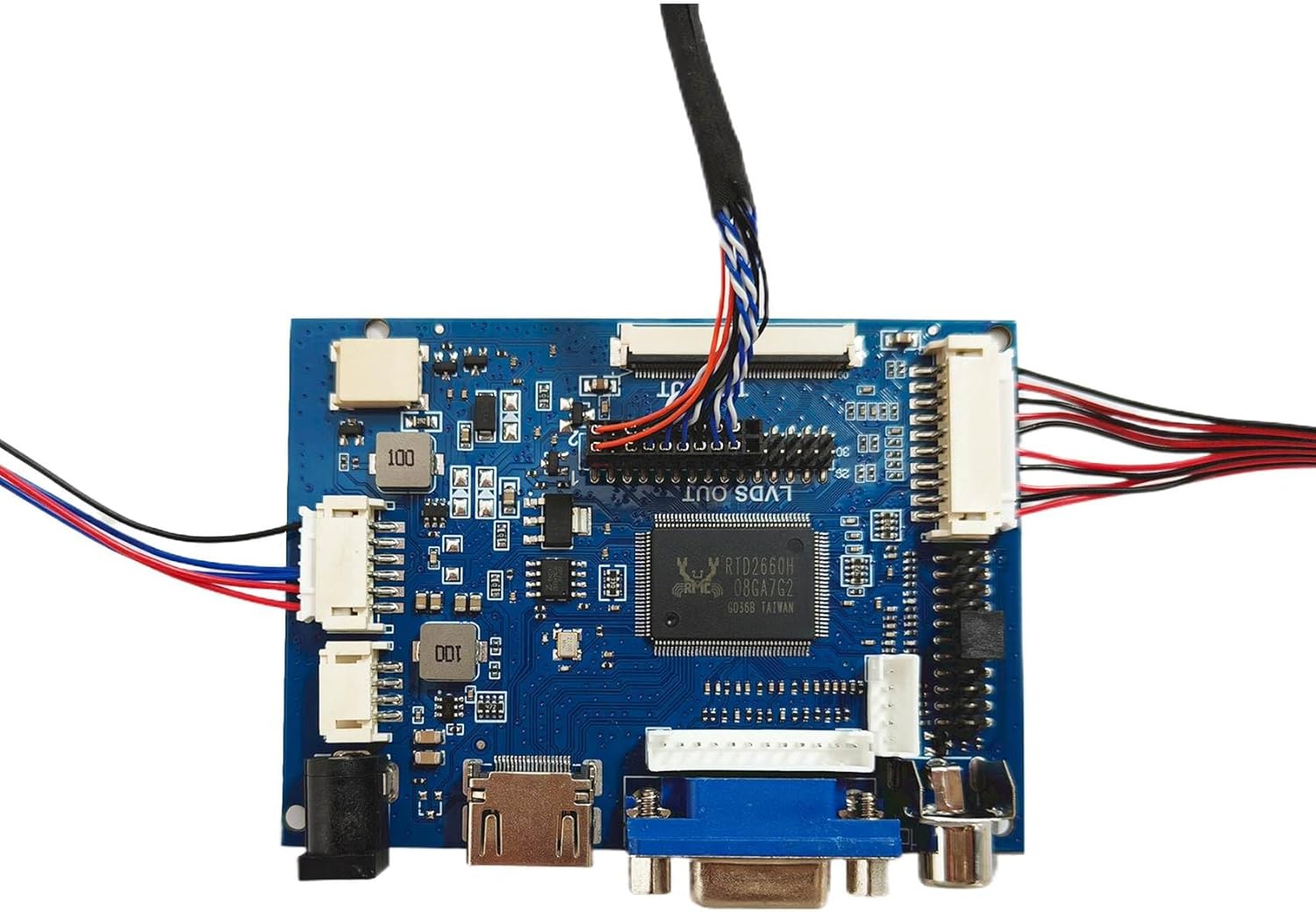

• 【LCD Controller Board】 Video input: H/D VGA AV ,Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V，Please use in insulated environment.
• 【Input Power Supply】12V DC 2A, port size :5.5x2.1mm,Pls prepare by yourself.
• 【Touch Panel 】Dimension Size: 155mm x 117mm,Display Area: 132.48mm x 99.36mm,FPC connector: 4pin 1.25mm pitch bottom contact, Interface USB 1.1 & 2.0
• 【Plug and play】Connecting the cables and port as link picture details ,power on ,enter into signal ,the screen can work well .If touch driver or calibration needed ,just Amz message us .
