Henkion OTDR Fiber Optic Tester 1310/1550nm 34/32dB Auto/Expert Fiber Test Event Map LS OPM OLS Cable Test Network Tools 5.4" IPS Touch Screen 1920x1152 Resolution WiFi 8 Styles of Connectors
4.6 (104 items)
Limited Time SaleUntil the end
16
50
46
$359.99 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $599.99
Product details
| Management number | 211306869 | Release Date | 2026/04/04 | List Price | $240.00 | Model Number | 211306869 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【RSO-65 Intelligent OTDR measurement】OTDR fiber optical tester provides wavelength of 1310/1550nm and dynamic range of 34/32dB,the max test distance 150km.For auto range mode:can one click start test,only select the wavelength and test time,quickly perform the test.For parameters setting mode:Testing after setting parameters distance scope,pulse width,duration of measurement etc.Curvest/ map are displayed simultaneously.Pls note:This mode only can detect optical signal,doesn't support live test.
- 【Curve Analysis & Shortest EDZ ADZ & Data Storage】The OTDR fiber tester can analyzes the curve automatially,touch screen zoom or move curves operation.The tested results are displayed in the form of a list.Event list clearly reflects the type of event,distance,loss,decay,reflection. Shortest event dead zone (1.6m) and attenuation dead zone (8m). Support automatic or manual save the most of 4 traces simultaneousiy,creat trace reports to the storage path.SOR standard file format PDF/EXCEL.
- 【 OPM LS OLS Tools&WIFI】5.4 inch IPS touch screen OTDR tester,1920x1152 resolution.OPM--It is used for optical power testing and fiber link loss relative measurement. LS--To test multi-mode and single mode fibers bending and breakage,test range 8KM (26246fts).OLS--used to test the insertion loss of optical passive devices.Built-in Wifi,creat wifi hotspot,wifi analyze.Type:Class 2;Power<1mW,Wavelength:650nm

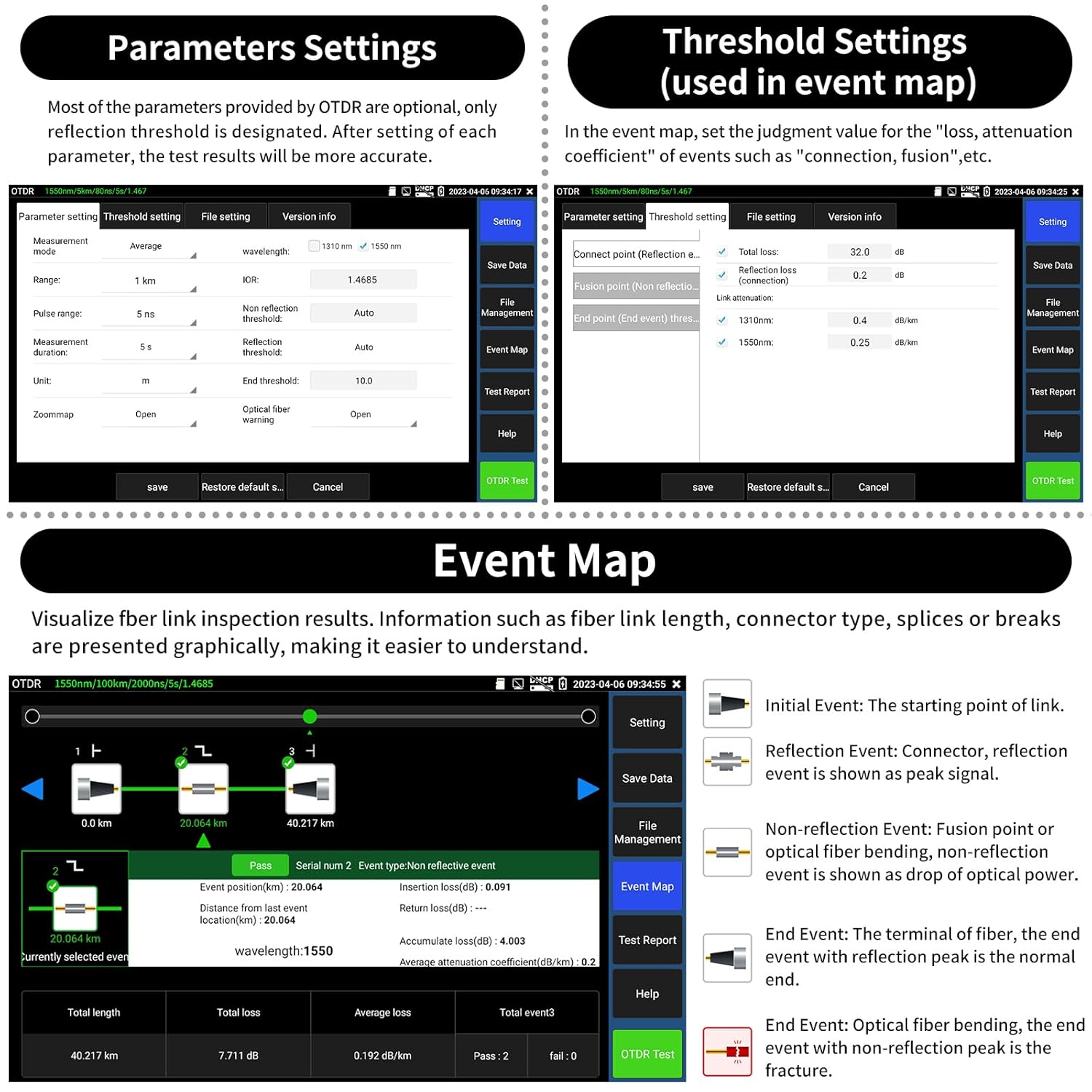

- 【Event map&Cable Tester&Network tool】Event map can one key automatic test,and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically.UTP cable test.RJ45 TDR cable test.Cable tracer can quickly find out the BNC cable,network cable and telephone cable from the mess cables.Non-contact voltage detection,PD power test.Network test tools trace route,link monitor,DHCP server,port flashing,ping test.
- 【RSO-65 Series】 Android 10.0 operator system, 1.2GHz(4core )/1GB(DDR)/8GB(EMMC). 1x 10/100/1000Mbps RJ45 Gigabit Ethernet ports. Henkion OTDR fiber tester series include RSO-4000 series, RSO-5000 series, RSO-50 series, RSO-65 series,RSO-73 series,RSO-85 series. Different models support different functions.
| Color | Orange |
|---|---|
| Model | RSO-65 |
| Brand Name | Henkion |
| Style Name | RSO-65 1310/1550nm 34/32dB |
| Manufacturer | Rsrteng |
| Power Source | Powered |
| Specification Met | Class 2 |
| Included Components | 8 Style of Fiber Optic Adapters |
