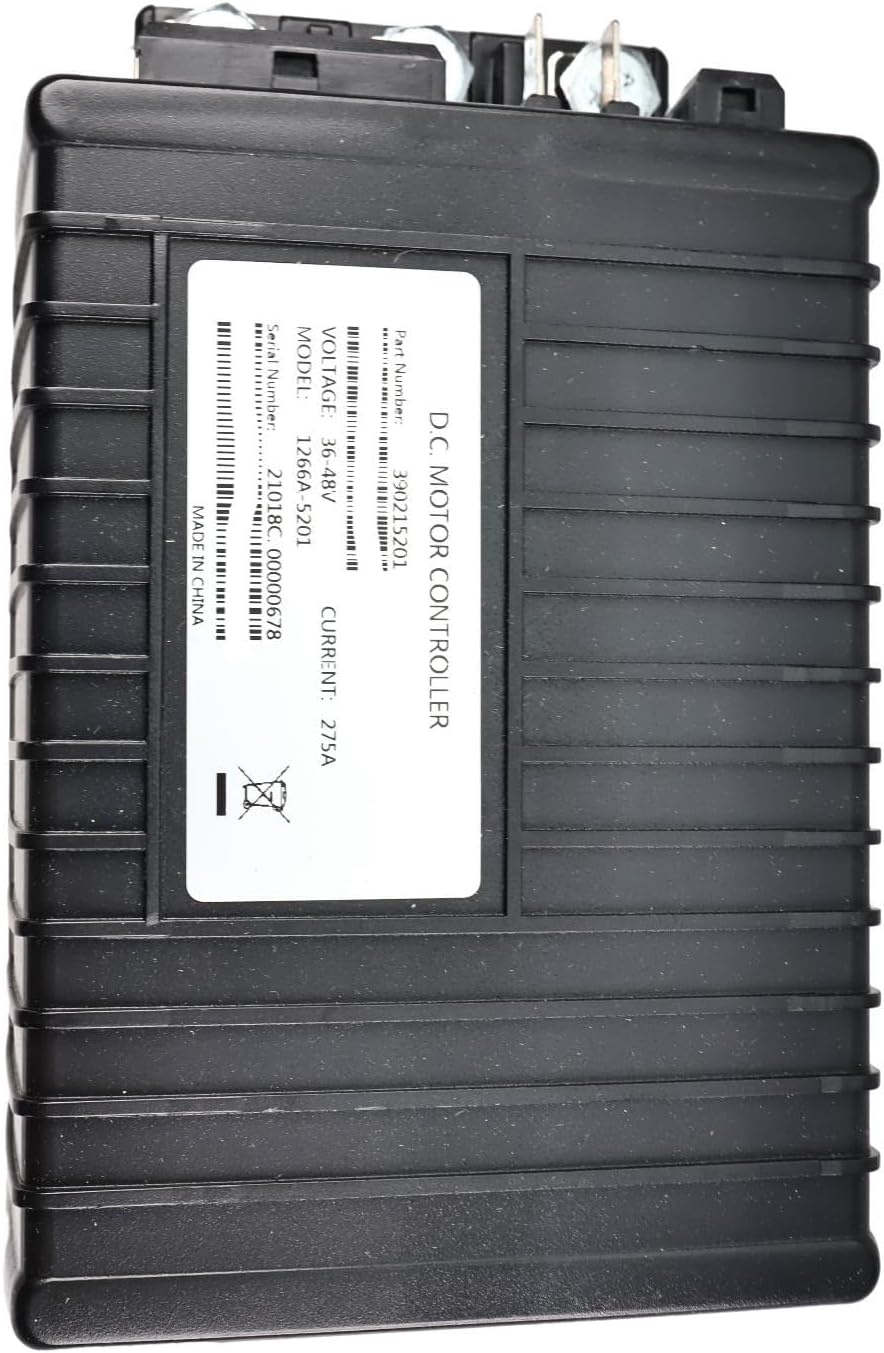

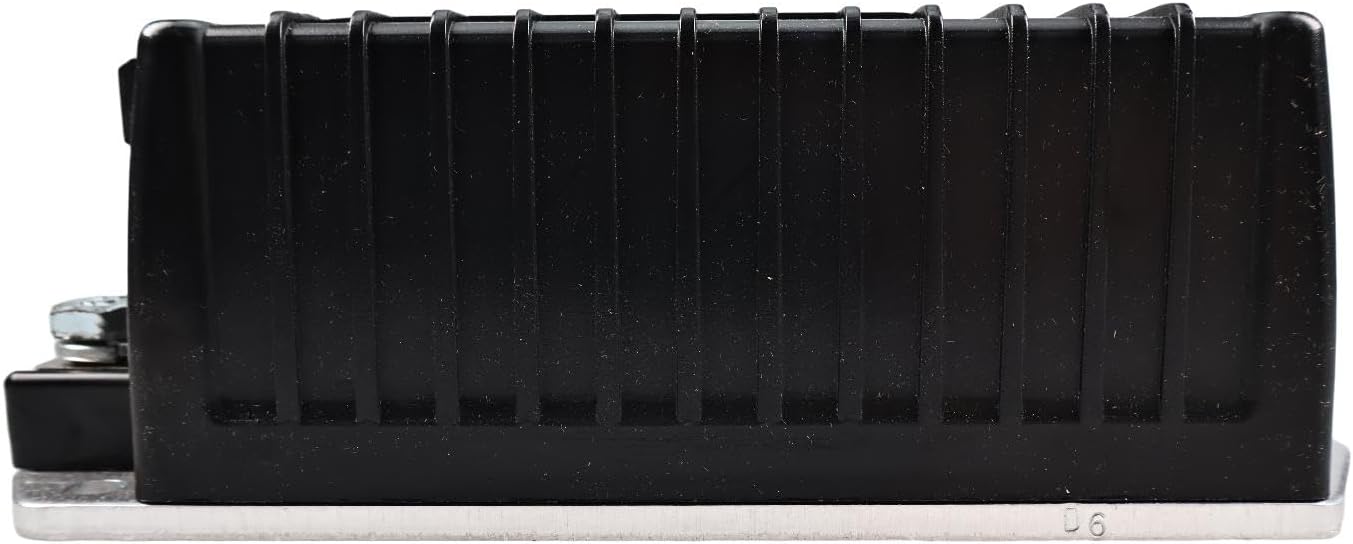

Holdwell Club Car Controller 1266-5201 Replacement compatible with Curtis PMC SepEx Controller

The buyer should confirm with the seller the battery system voltage, current rating and the throttle type (0-5kΩ, 5k-0Ω or 0 – 5V). By default, we will deliver the controller with setting: 48V / 275A / 0-5kΩ. compatible with the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS Model 1266 SepEx Motor Controller Manual (PDF compatible withmat) becompatible withe making your purchase. Curtis 1266 controllers are separately excited motor speed controllers designed compatible with use in a variety of transport vehicles. These programmable controllers are simple to install, efficient, and cost effective. Typical applications include golf carts and small utility vehicles. The 1266 controller offers smooth, silent, cost effective control of motor speed and torque. The speed sensor input allows superior closed-loop control compatible with regulating vehicle speed. Unique braking parameters allow simple, intuitive deceleration tuning. A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors. CURTIS Model 1266 SepEx Motor Controller Manual (PDF compatible withmat) Nominal input voltage: 36 – 48 V PWM operating frequency: 16 kHz Electrical isolation to heatsink: 500 V ac (minimum) Package environmental rating: IP5X A 4-pin low power connector is provided compatible with an optional programmer. A complete handheld programmer kit, including the appropriate connecting cable with mating connector, can be ordered from our shop: Curtis Model 1313-4401 Handhold Programmer.

• Reference part number: 1266-5201 1266A-5201
• 48V 275A 0-5kΩ
