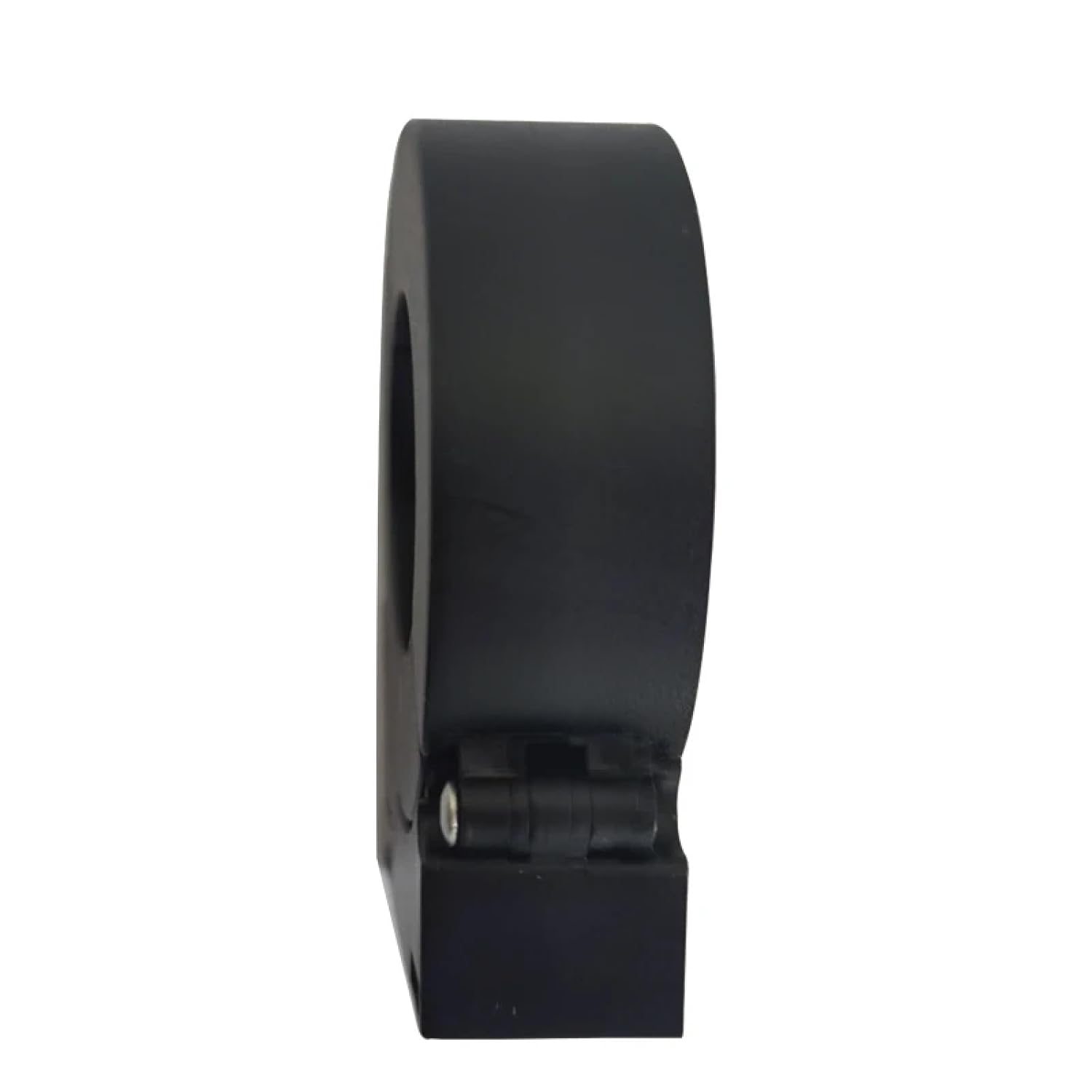

HSTS023R Hall Effect Split Core Current Sensor, ±50A to ±600A Input, 2.5V ±0.625V Output, 1% Accuracy, 5V Supply (100A)

The HSTS023R is a Hall effect split core current sensor designed for precise and reliable current monitoring across a wide range of applications. Its split core design allows for easy installation around existing conductors without requiring a system shutdown, saving time and minimizing disruption. The sensor supports a broad measurable input range from ±50A to ±600A, making it highly versatile for various electrical systems. It delivers a stable output of 2.5V ±0.625V with 1% accuracy, ensuring dependable readings for critical monitoring tasks. Powered by a single 5V supply, the HSTS023R is straightforward to integrate into existing setups. Hall effect sensing technology enables non-intrusive measurement with excellent linearity, reducing interference and improving overall performance. The compact construction makes it suitable for installations where space is limited. CE certified and single-phase compatible, this sensor is a practical choice for engineers and technicians seeking accurate, non-invasive current measurement in industrial, commercial, or electronic control applications.

• SPLIT CORE DESIGN: Enables easy installation around existing conductors without requiring a system shutdown or power interruption.
• WIDE CURRENT RANGE: Measures input currents from ±50A up to ±600A, making it versatile for a broad range of electrical monitoring applications.
• HIGH ACCURACY OUTPUT: Delivers a precise 2.5V ±0.625V analog output signal with 1% accuracy for reliable and consistent current monitoring.
• HALL EFFECT TECHNOLOGY: Utilizes non-intrusive Hall effect sensing for excellent linearity and accurate measurement without direct electrical contact.
• SIMPLE POWER SUPPLY: Operates on a single +5V supply voltage, allowing for straightforward integration into a wide variety of systems and circuits.
