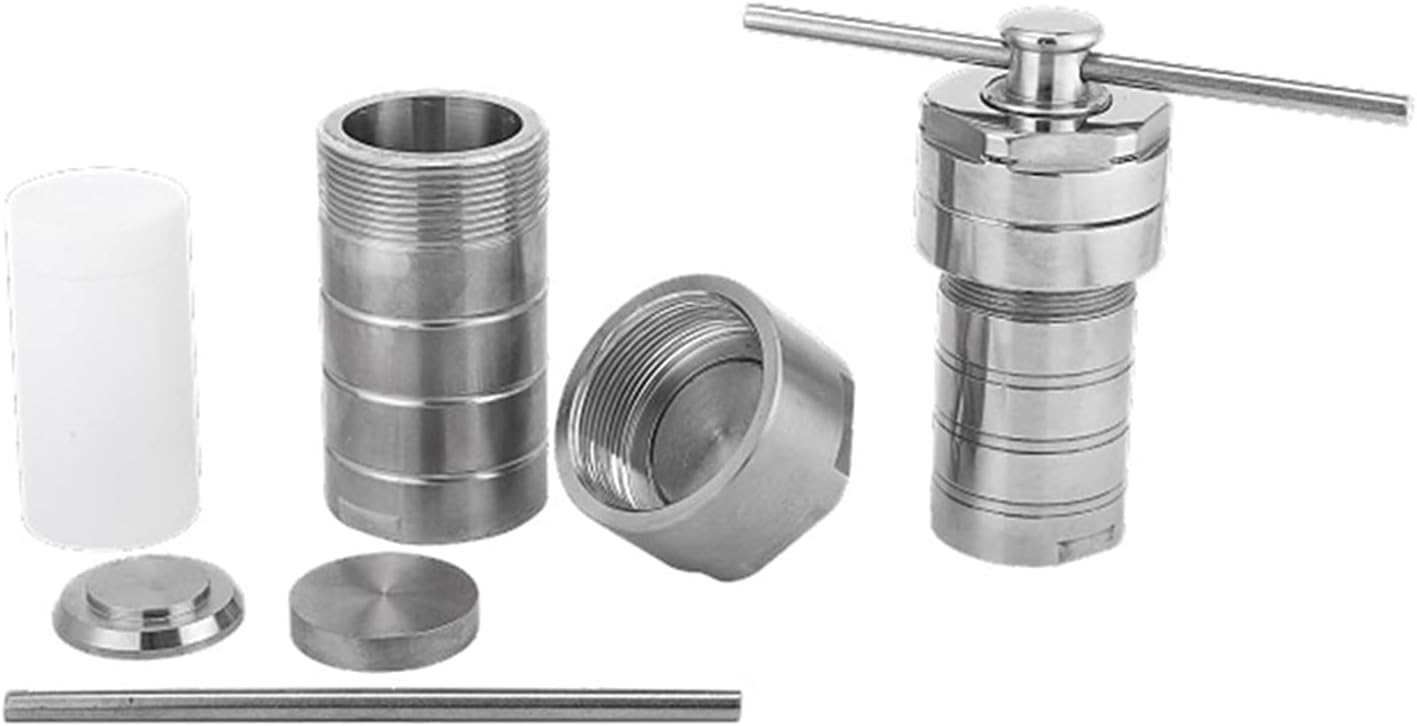

Hydrothermal Autoclave Reactor Vessel Kettle With PTFE Chamber Synthesis 50ml,High Precision(150ml)

Technique Data:(1) Operating temperature: 220°(2) Working pressure: 3MPa (gauge)(3) Heating, cooling rate: 5 c / min(4) specification 25ml,50ml,100ml.(150ml,200 ml or others customized according to users needs.)Packing list：Sold by setFeature:The hydrothermal synthesis reactor using high-quality stainless steel processing. Kettle kettle lid body and sealed with durable, reliable cable seal structure, the sealing effect long-term stability without leakage.The hydrothermal synthesis reactor with external heating, to reduce the volume and more favorable reaction in the same reactor operating temperature (such as multiple reactor placed in an oven heated).200ml hydrothermal reactor introduction material:The kettle body is made of high-quality stainless steel, which is sealed by a circular groove. The manual spiral is strong. It has good sealing performance, high safety factor, low consumption of acid solvent and easy to use!200ml hydrothermal reactor introduces product features:1. High temperature resistance: use temperature -200 ~ +300 °C;2. Low temperature resistance: -196 ° C can be maintained at 5%;3. Good corrosion resistance, no harmful substances spillage, reduce pollution and safe use.4. After heating and boosting, the sample which is difficult to dissolve under normal conditions and the sample containing volatile elements can be quickly and non-destructively dissolved.5. Beautiful appearance, reasonable structure, simple operation, shorten analysis time and reliable data.

• 【Flanged PTFE lining】--This is a upgrade of the lining structure based on the original version. The cover of the lining will be pressed by the stainless steel shell, and through the tightly sealed port, the sealing performance will not be affected by the process difference of the bottom gasket.
• 【Max 240C and 6MPa】--The vessel is made of special grade PTFE material, the highest temperature is 240 degrees Celsius, the pressure is 6 MPa. Most samples can be digested completely between 80 and 140℃. Although the test temperature of our hydrothermal kettle can reach 240℃, it is still not recommended for users to use the temperature exceeding the limit.
• 【Ensure Safety】--Reactors that are more than 50ml all with safe explosion-proof pressure relief hole at the shell and upper gasket, compared with ordinary reactors, it can release pressure faster when overpressure occurs.
• 【Good Material and Reasonable Price】--The hydrothermal synthesis reactor using high-quality non-magnetic 304 stainless steel. PTFE lining can bear high temperature and high pressure, corrosion resistance, almost insoluble in all solvents, physical inert.
• 【Keep Strong Structure】--Like all reactors, the mortise and tenon structure is retained. The middle round tenon of the stainless steel shell can be tightened by the booster rod to further ensure the tightness.
