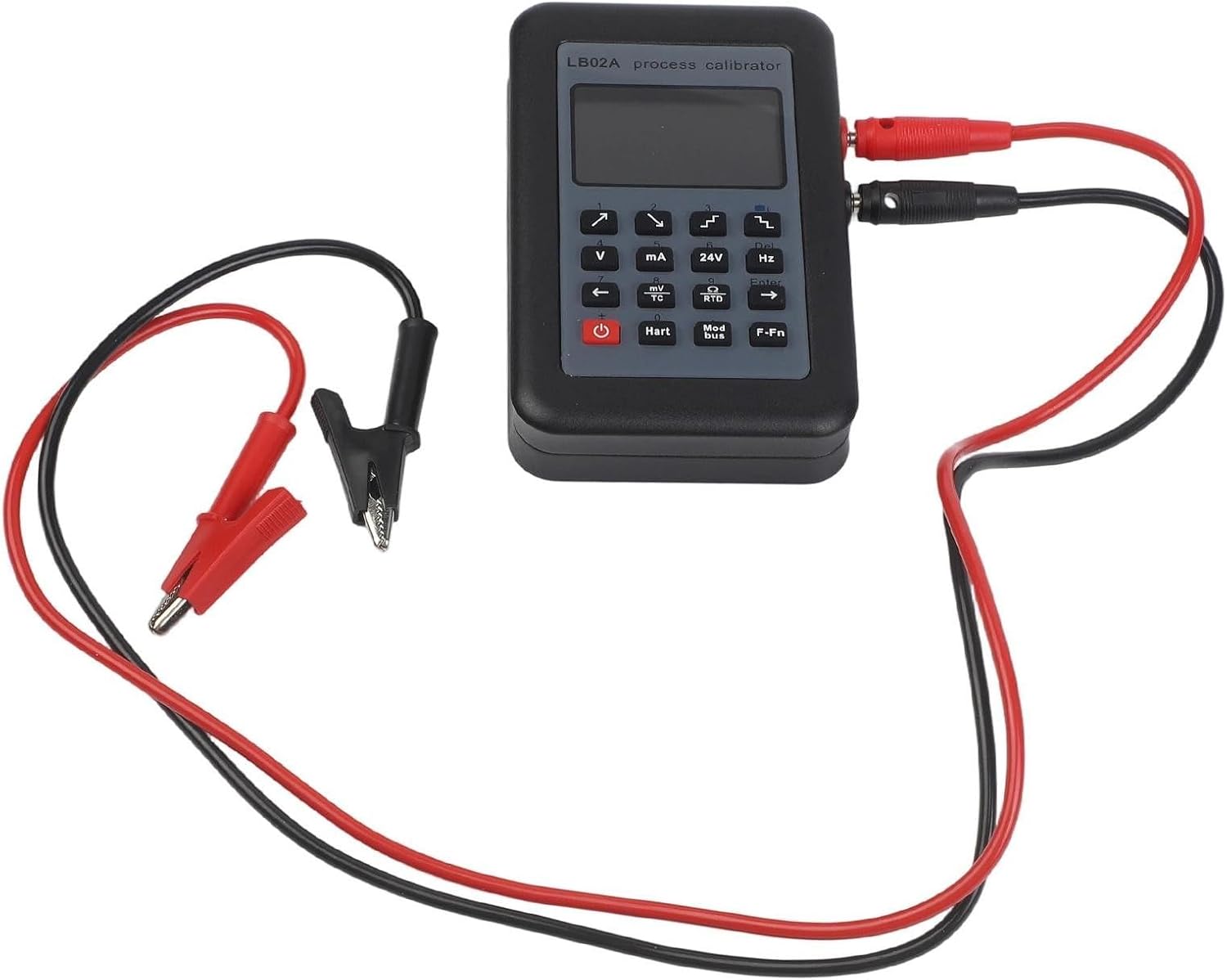

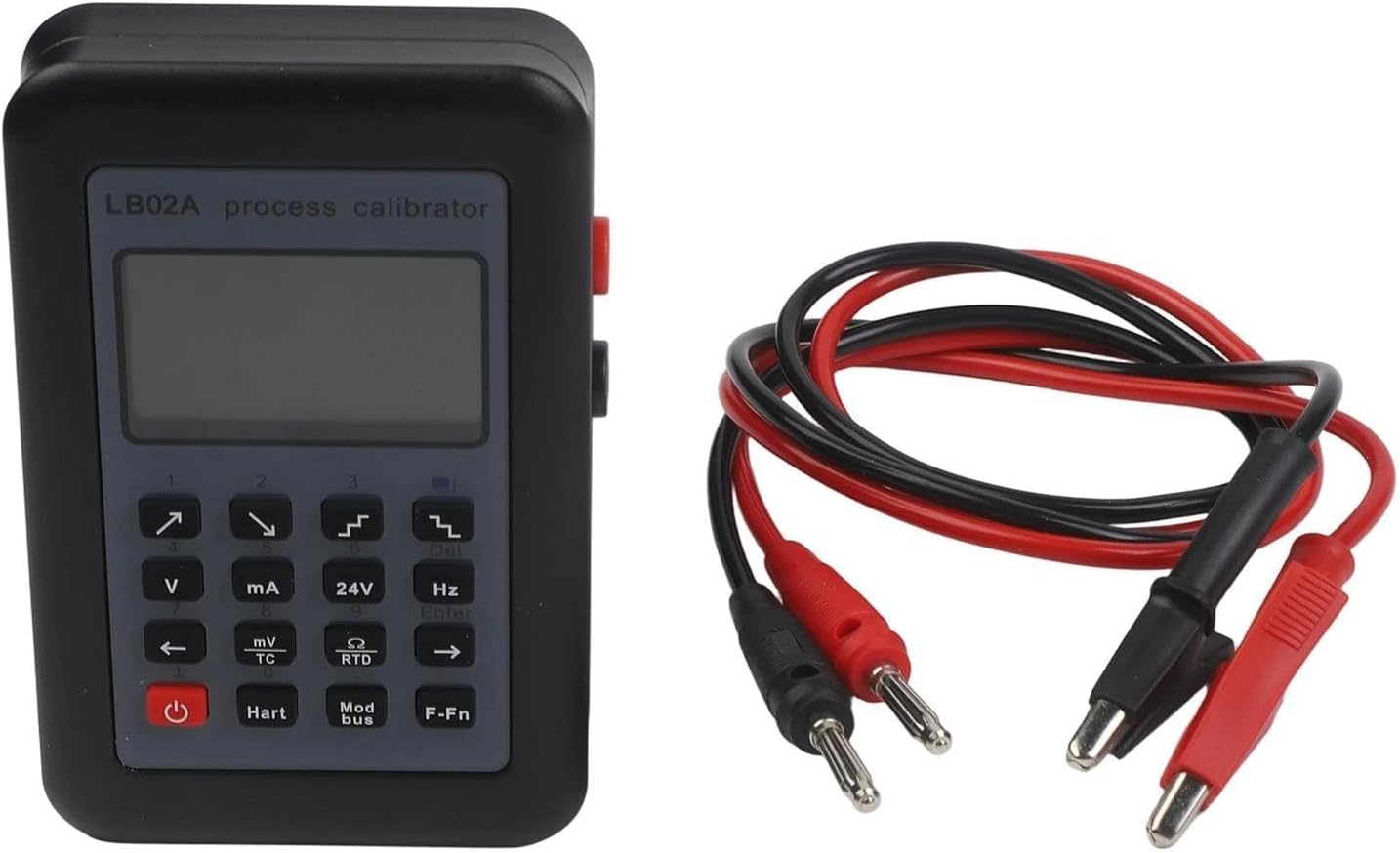

LB02A Process Calibrator 4.8 x 3.1 x 1.1 inch for Frequency, PT100, TC, mV, mA, 4-20mA, 0-10V | Signal Generator for RTD Thermocouple for Hart Support

Features:* A disposable fuse prevents instrument damage due to operational errors.* In addition to standard signal input and output functions, it also supports resistance, Pt100, Cu50 for RTD, eight types of thermocouples, and frequency signal input and output, and can output and measure negative temperatures, making it a powerful instrument* The for resistance outputs have reduced sensitivity to external excitation current. This improves output and measurement accuracy, and supports both constant current and non-constant current resistance measurements, expanding the instrument's applications.* All functions are switched using an internal electronic switch.* Keys for input and output in V, mV, mA, Ω, and Hz provide easy operation.* Two plug-in terminals and a clear, large segment LCD display.* Built-in high-capacity lithium polymer battery for enhanced safety.Specifications:Part Name: Signal GeneratorMaterial: ABS, MetalColor: As shownSize: 122 * 80 * 27mmOutput Signals: (see below)1. Voltage (0-11V)2. mV (0-100mV)3. Current (0-24mA)4. Resistance (20-400Ω)5. Frequency (100-10kHz)6. Thermocouple (EKBRSTTJN)7. Thermistor (Pt100Cu50)Measurement Signals: (see below)1. Voltage (0-±30V)2. mV (0-±150mV)3. Current (0-±30mA)4. Resistance (0-999Ω)5. Frequency (0-10kHz)6. Thermocouple (EKBRSTTJN) S T J N)7. Thermistor (Pt100 Cu50)Package Contents:1 x Signal Generator1 x Test1 x USB Data Cable1 x Storage Bag

• 【Versatile Signal Generation】: LB02A Process Calibrator delivers voltage, mV, mA, resistance, frequency, thermocouple and thermistor outputs, covering 0-11V, 0-100mV, 0-24mA, 20-400Ω, and 100-10kHz, meeting diverse field testing and calibration needs.
• 【Wide Measurement Capability】: Supports measurement of voltage ±30V, mV ±150mV, current ±30mA, resistance up to 999Ω, frequency up to 10kHz, plus multiple thermocouple types and options like Pt100 and Cu50 for accurate diagnostics.
• 【Enhanced Accuracy Design】: for PT100 TC mV mA 4-20mA 0-10V Debug functions include reduced sensitivity to external excitation current and both constant/non-constant current resistance measurement modes, insuring reliable performance in complex environments.
• 【User-Friendly Operation】: Internal electronic switch toggles all functions; dedicated keys for V, mV, mA, Ω, and Hz make setup simple. Large segment LCD and plug-in terminals improve readability and ease of connection during LB02A Signal Source Calibration tasks.

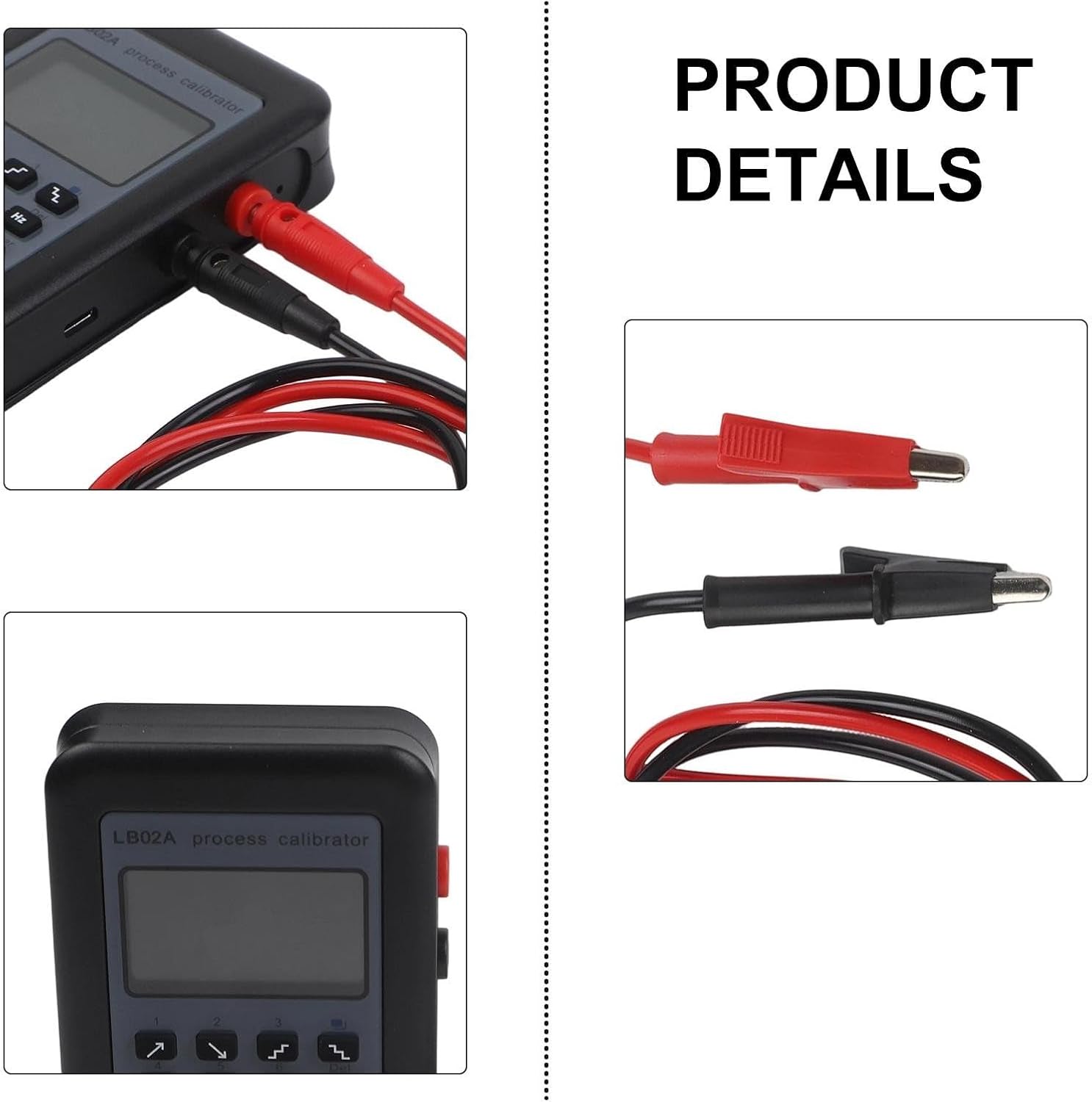

• 【Portable & Safe Power】: Built-in high-capacity lithium polymer battery offers long lasting operation with enhanced safety, making this Signal Generator Thermocouple unit perfect for HART and 4-20mA field work, shipped with test leads, USB cable, and storage bag.
