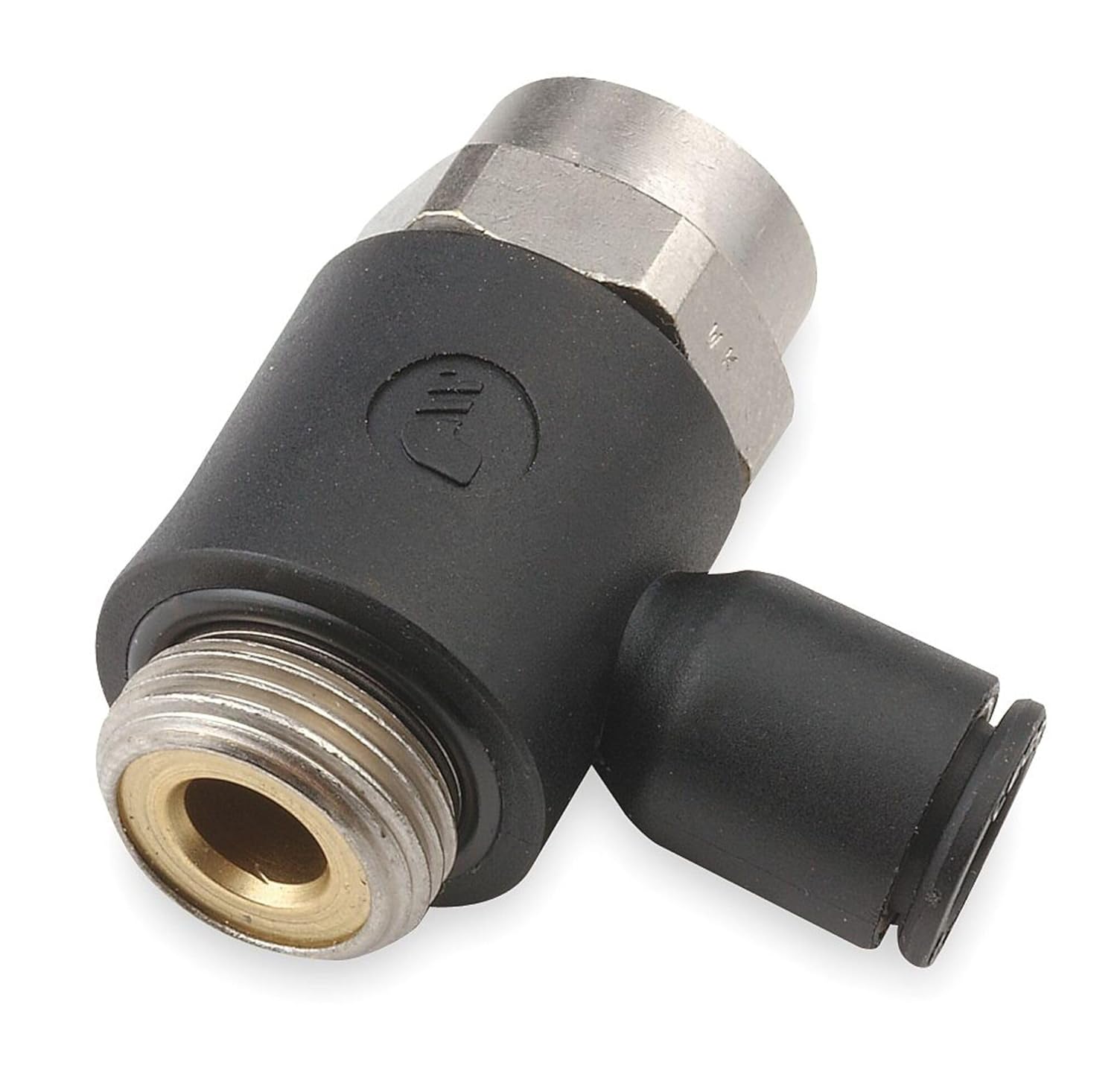

Legris 7010 56 20 Nylon Air Flow Control Valve, 90 Degree Elbow, Meter-Out, Slotted Screw, 1/4" Tube OD x #10 UNF Male

This Parker Legris 7010 series flow control valve is housed in a banjo-style body with a 90-degree angle and is suitable for use in metering outlet air flow in pneumatic applications. A recessed slotted screw is used to adjust air flow on the outlet side. The nylon banjo body is impact-resistant, the nickel-plated brass threaded fitting is corrosion-resistant, and the nitrile butadiene rubber (NBR) O-ring is resistant to oil and chemicals. The banjo body has a female push-to-connect tubing end and the housed nickel-plated fitting has a male Unified National Fine (UNF) threaded end with a sealing O-ring. It has a maximum operating pressure of 145 pounds per square inch (psi) and a working temperature range of 32 to 158 degrees F. The valve complies with the Council of the European Union 2006/42/EC directive and the Pressure Equipment Directive (PED) 97/23/EC standards for safety and complies with Reduction of Hazardous Substances (RoHS) regulations. This air flow control valve is suitable for use in pneumatic applications such as in laboratories, food and beverage processing, and paint and printing industries.Flow control valves manage the flow of air, water, or other fluids between pipes, tubes, or hoses. They have two ports and adjustment screws to restrict or direct flow through the valves. The adjustment moves a disc toward or away from the center of the valve to act as a plug to restrict or open the flow path, depending on screw adjustments. Control valves sometimes include either a ball cone (which utilizes a spring-loaded ball seated against a cone-shaped interior surface to block the flow) or a swing check valve (which has a movable disc on a hinge to block reverse flow). Flow control valves are used in various applications, including machine tools, airplane and truck controls, and automated production lines.Parker Hannifin manufactures electromechanical, hydraulic, and pneumatic motion technologies and systems for liquid handling, filtration, sealing and shielding, climate control, process control, and aerospace applications. The company, founded in 1918, is headquartered in Cleveland, OH.

• Flow control valve for connecting tubing to a female threaded connection at a 90-degree angle
• Male UNF threaded connection with O-ring on one end and push-to-connect female receiver on the other
• Slotted adjustment screw for outlet-side air flow control
• Nylon banjo-style body for resistance to impact and nickel-plated brass threaded fitting for resistance to corrosion
• Maximum operating pressure of 145 psi
