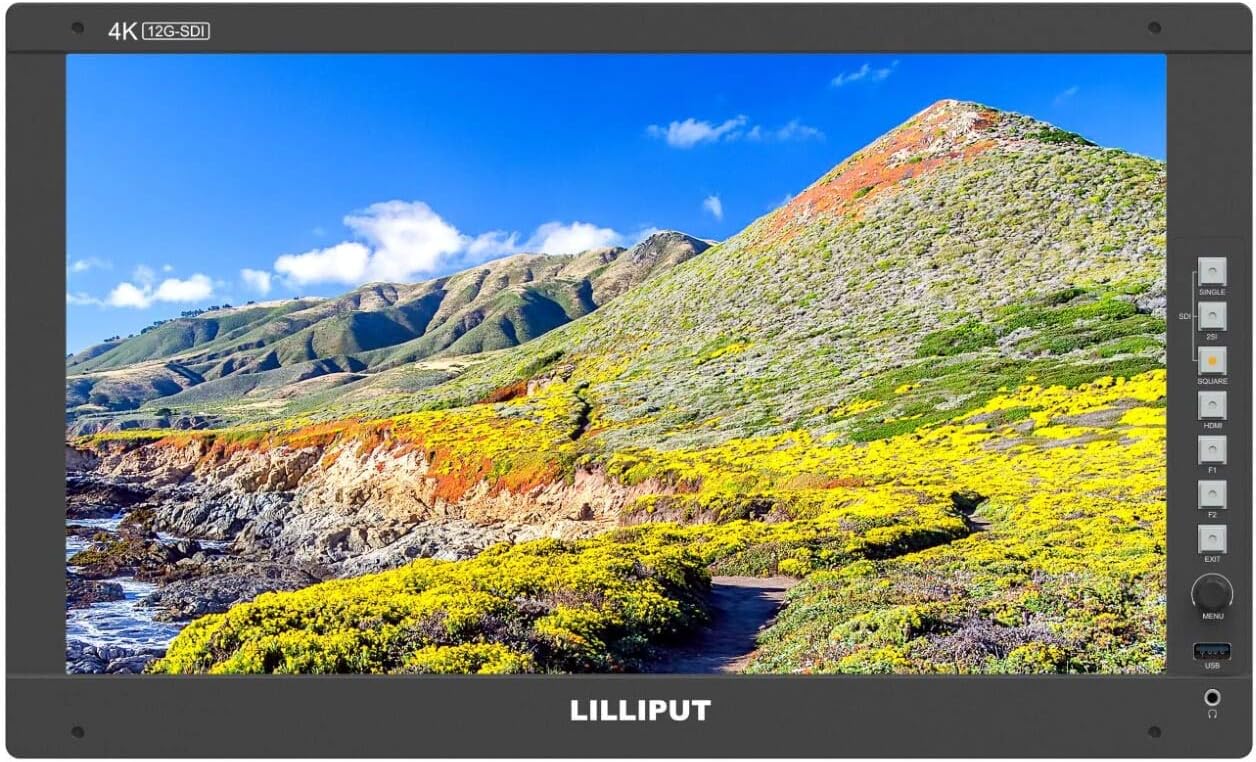

LILLIPUT 17.3" Q17 FHD PRO SDI Filmmaking Monitor 3D Lut HDR Waveform/Vector/Histogram/4 Bar Display/Audio Vector/Level Meter with Gold mount and 19" rack mount ears by VIVITEQ
4.9 (41 items)
Limited Time Sale$1,139.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209182511 | Release Date | 2026/03/29 | List Price | $759.60 | Model Number | 209182511 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

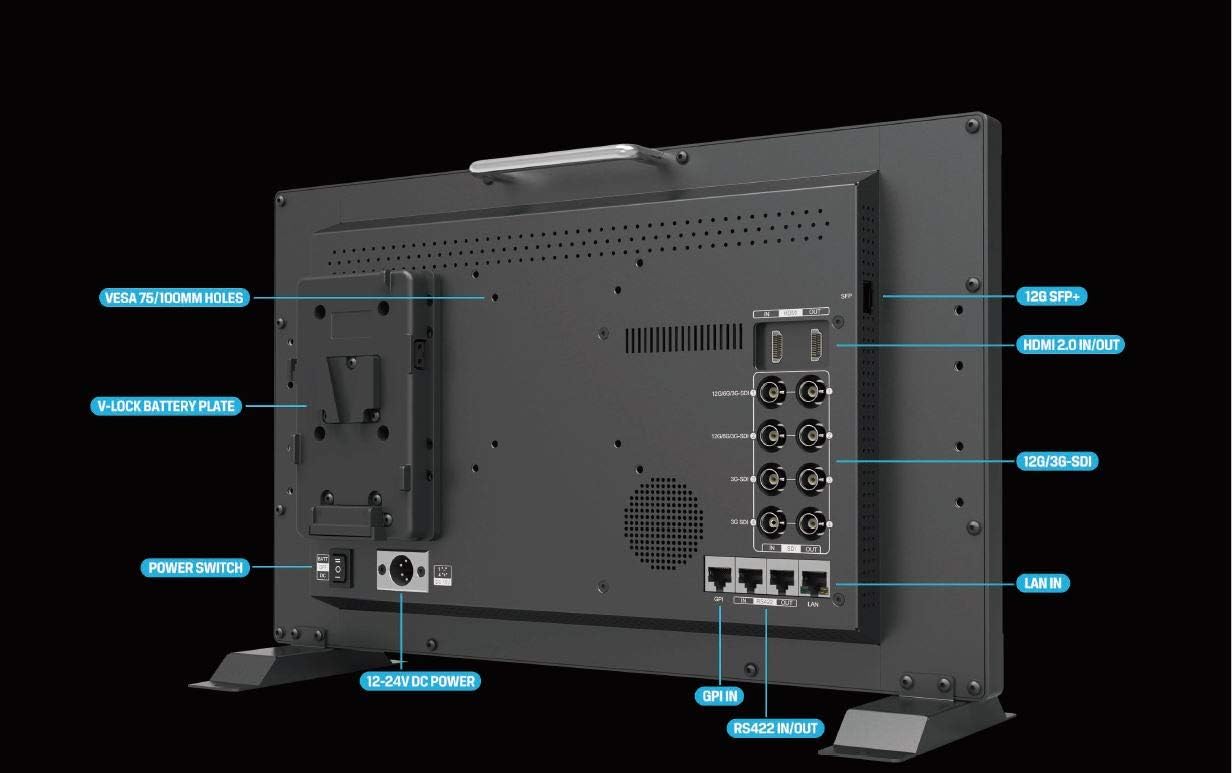

LILLIPUT 17.3" Q17 FHD PRO SDI Filmmaking Monitor 3D Lut HDR Waveform/Vector/Histogram/4 Bar Display/Audio Vector/Level Meter Main Features Support standard 12G-SDI input interface (x2), 3G-SDI input interface (x2), and support Single-Link, Dual-Link and Quad-Link signals. Support HDMI 2.0/1.4 inputs and loop outputs. support SFP optical Connector input, optical module for optional. Loop output signals support up to 3840x2160 23.98/24/25/29.97/30/50/59.94/60p and 4096x2160 23.98/24/25/29.97/30/47.95/48/50/59.94/60p. Monitor control via LAN, GPI, RS422. Customized Menu Knob. Support customized various waveform mode: Waveform/Vector/Histogram/4 Bar Display/Audio Vector/Level Meter. HDR (High Dynamic Range) display supporting ST 2084 and Hybrid Log Gamma. Gamma selection: 1.8-2.8. Custom 3D LUT file load through USB. Wide color space supporting SMPTE-C, Rec709, EBU, and Native. Color Space/ HDR/Gamma /Camera Log comparison with original (side by side). Color Temperature: 3200K/5500K/6500K/7500K/9300K/User. False Color: Default/Spectrum/ARRI/RED. Aspect Marker (16:9/1.85:1/2.35:1/4:3/2.0X/2.0X MAG/Grid/User). Aspect (Full/16:9/1.85:1/2.35:1/4:3/3:2/2.0X/2.0X MAG). Audio: supporting Audio Phase and Level Meter, HDMI supporting 8 channels, and SDI supporting 16 channels. Time Code: LTC/VITC. UMD display : White/Red/Green/Blue/Yellow/Cyan/Magenta text color for optional. Color Bar Mode: Rec601/Rec709/BT2020. Check Field: Red/Green/Blue/Mono. Zoom at any position and at a different scales. Peaking (Red/Green/Blue/White/Black). Tally (Red/Green/Yellow). Product Parameters Panel Size 17.3" Resolution 1920×1080 The luminance of white 300 cd/M2 Contrast Ratio 1200:1. Viewing Angle 170 /170 Deg (H/V) Input Connector 12G-SDI*2, 3G-SDI*2, HDMI 2.0, GPI, RS422, LAN, USB Output Connector 12G-SDI*2, 3G-SDI*2, HDMI 2.0, RS422, Earphone jack Power RequirementsDC 12-24V Power Consumpt
- LILLIPUT 17.3" Q17 FHD PRO SDI Filmmaking Monitor 3D Lut HDR Waveform/Vector/Histogram/4 Bar Display/Audio Vector/Level Meter
- What's in the package: 1.Gimbal Bracket 2.Acylic Screen Protector 3.Suitecase(Black) 4. USB Drive Disk 5. Mount plate Bracket 6. Gold mount plate 7.15V DC adapter 8. Desktop Bracket 9.19" rackmount ears Bracket
| Brand | LILLIPUT |
|---|---|
| Voltage | 12 Volts |
| Brightness | 300 cd/m2 |
| Model Name | Q17 |
| Resolution | 4K DCI 2160p, 4K UHD 2160p |
| Screen Size | 17.3 Inches |
| Aspect Ratio | 16:9 |
| Display Type | LCD |
| Manufacturer | LILLIPUT |
| Model Number | Q17 |
| Refresh Rate | 60 Hz |
| Adaptive Sync | FreeSync |
| Mounting Type | Desk Mount |
| Screen Finish | Glossy |
| Viewing Angle | 170 Degrees |
| Contrast Ratio | 1200:1 |
| Total Usb Ports | 1 |
| Has Color Screen | Yes |
| Native Resolution | 1920x1080 |
| Display Technology | LCD |
| Total USB 30 Ports | 1 |
| Additional Features | 3D, High Dynamic Range |
| Hardware Connectivity | HDMI, USB |
| Connectivity Technology | HDMI, USB |
| Specific Uses For Product | Film/Video Production |
| Display Resolution Maximum | 3840 x 2160, 4096 x 2160 |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 2 |
| Picture Quality Enhancement Technology | [HDR] |
