Mean Well DDR-120A-48 100.8W DIN Rail Type DC-DC Converter DDR-120A 48V 2.1A
4.7 (34 items)
Limited Time Sale$40.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209118157 | Release Date | 2026/03/29 | List Price | $27.20 | Model Number | 209118157 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DDR-120 series is a 120W DIN Rail type DC-DC converter with main features including DlN rail-type easy installatiorultra slim width (32mm),2:1 wide input voltage , fanless design,-40~+70℃ wide operating temperature,4KVdcIo isolation,150% peak load, adjustable output voltage and full protective functions. This series of models has various input options:9~18V/16.8~33.6V/33.6~67.2V/67.2~154V and variousoutput options:12V/24V/48V and can be used for industrial & railway control, security control, communicationsystem and other fields.Suitable applications include DC buck/boost regulator, increasing system insulation leveand voltage drop compensation along cable...etc.
- Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
- Width only 32mm
- 2:1 wide input range
- -40~+70℃ wide working temperature
- 150% peak load capability
- DC output adjustable
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15

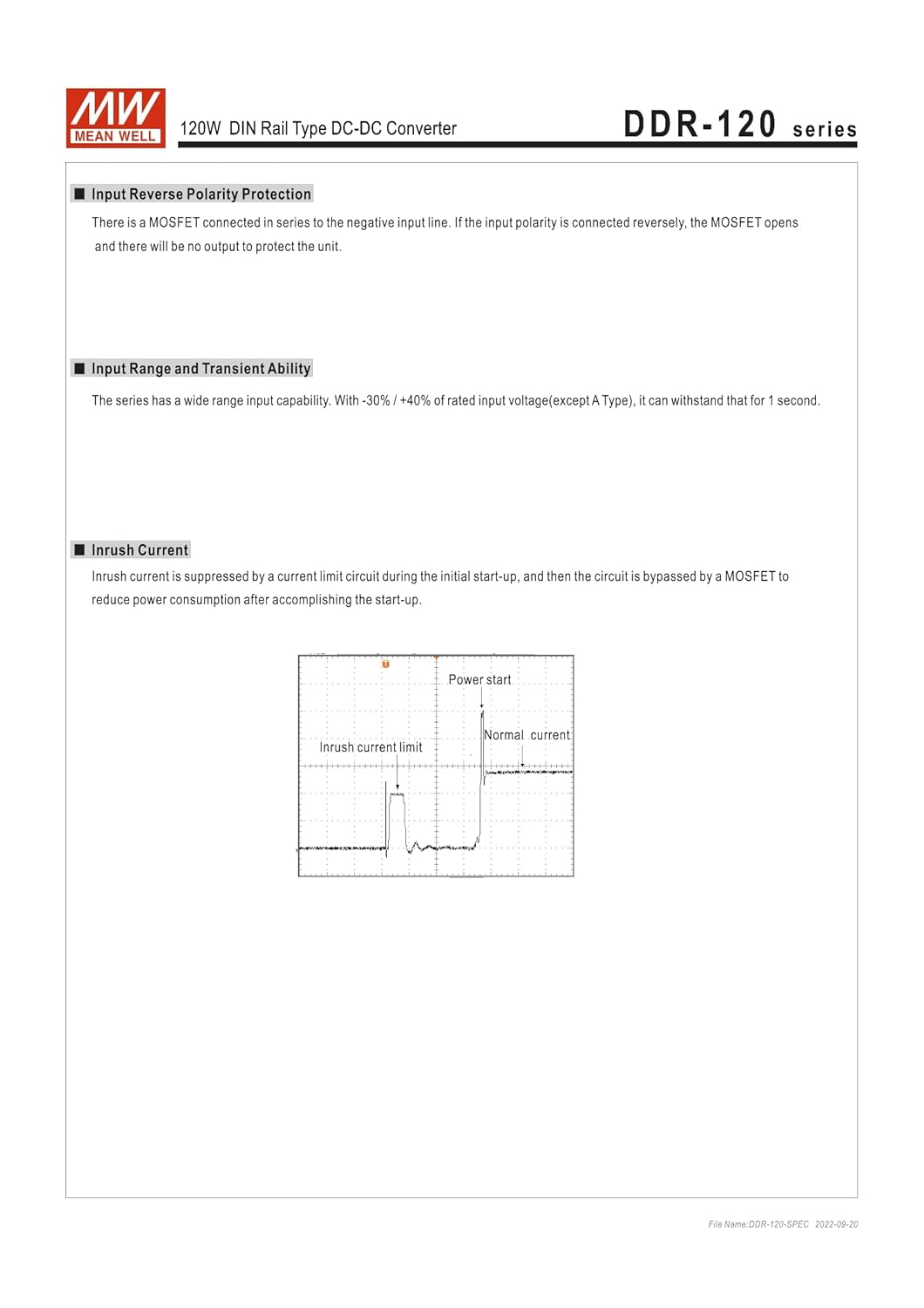

- Protections: Short circuit / Overload / Over voltage / lnput reverse polarity / Input under voltage protection
- 4KVdc l/O isolation(Reinforced isolation)
| Model | DDR-120A-48 |
|---|---|
| Brand Name | MEAN WELL |
| Part Number | DDR-120A-48 |
| Manufacturer | MEAN MELL |
| Power Source | Corded Electric |
| Mounting Type | Rail Mount |
| Current Rating | 2.1 Amps |
| Minimum Frequency | 50 Hz |
| Included Components | NO |
