Mean Well HLG-240H-24 240W 24V DC Switching Power Supply/LED Driver - Dual Mode CV + CC Output
4.0 (99 items)
Limited Time SaleUntil the end
04
01
33
$75.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $125.00
Product details
| Management number | 211769816 | Release Date | 2026/04/04 | List Price | $50.00 | Model Number | 211769816 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

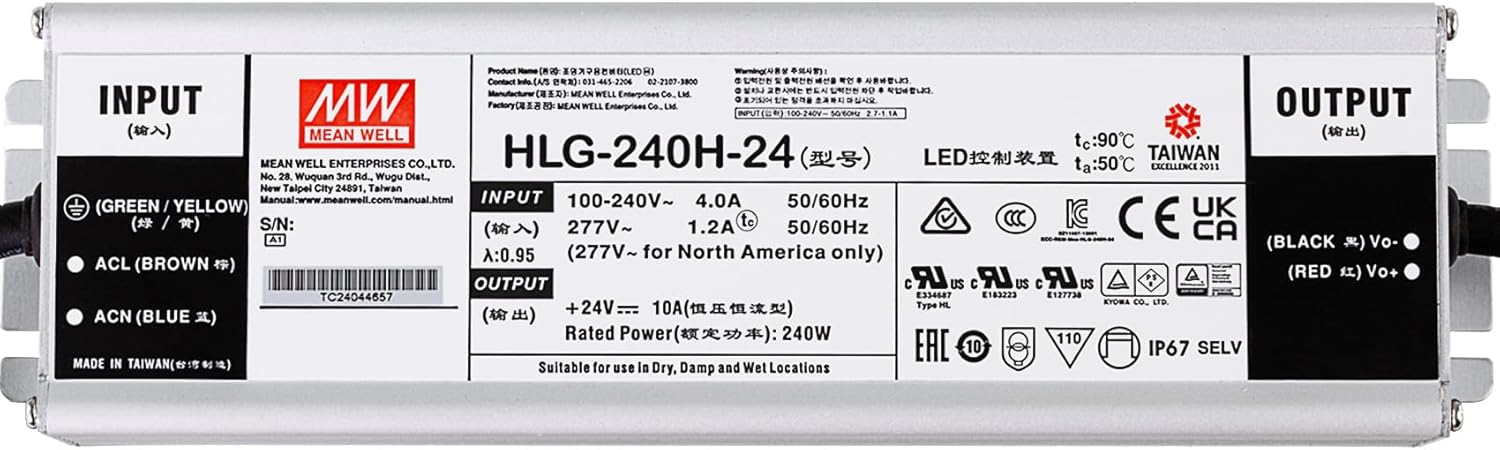

- Mean Well HLG-240H-24 240W Constant Voltage AC/DC LED Driver is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output.
- Operates from 90- 305VAC and offers models with different rated voltages ranging between 12V and 54V. Thanks to the high efficiency of up to 93.5%, with the fan-less design, the entire series is able to operate for -40℃ - +90℃ case temperature under free air convection.
- IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, to provide optimal design flexibility for LED lighting systems.
- Input Voltage: 90 - 305Vac / Output Voltage (CV mode): 24Vdc / Output Max Current (CV Mode): 10 Amps / Output Current (CC Mode): 10 Amps / Constant Current Operating Range: 12-24Vdc / Max Power: 240W

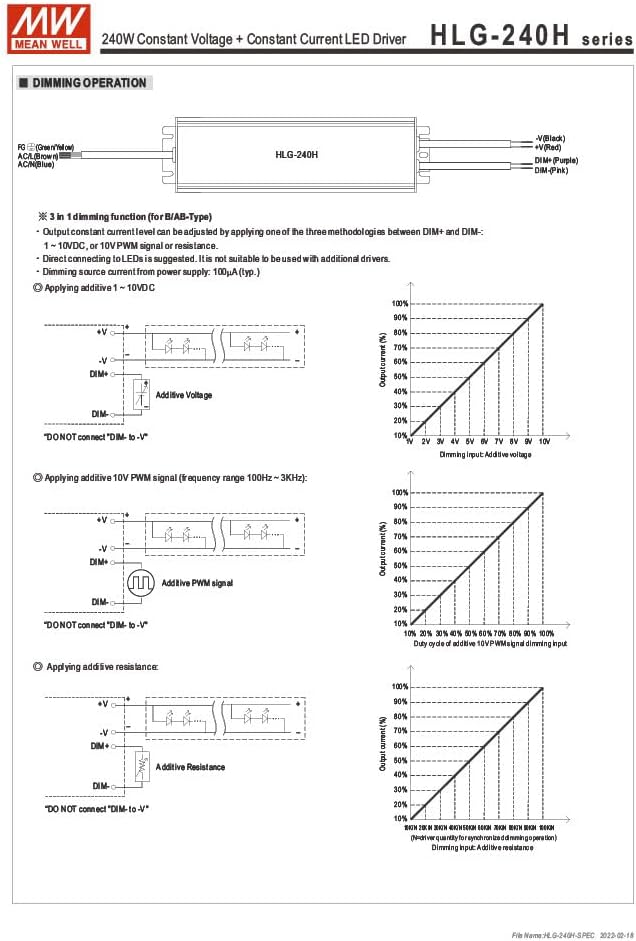

- Typical Lifetime approx. 6200 hours / Function Options - Output adjustable via potentiometer; 3 in 1 dimming / Certification UL 62368-1, UL1012 approval
| Model | HLG-240H-24 |
|---|---|
| Brand Name | SIRS-E |
| Item Weight | 2.7 Pounds |
| Part Number | HLG-240H-24 |
| Manufacturer | SIRS-E |
| Power Source | Corded Electric |
| Mounting Type | Surface Mount |
| Current Rating | 10 Amps |
| Specification Met | [Yes] |
| Item Dimensions D x W x H | 9.88"D x 2.67"W x 1.52"H |
