Micro 45mm DC 10.8V-16.8V 11.1V 12V 14.4V 14.8V 90W BLDC High Speed Brushless Motor Fan with Drive for Vacuum Cleaner

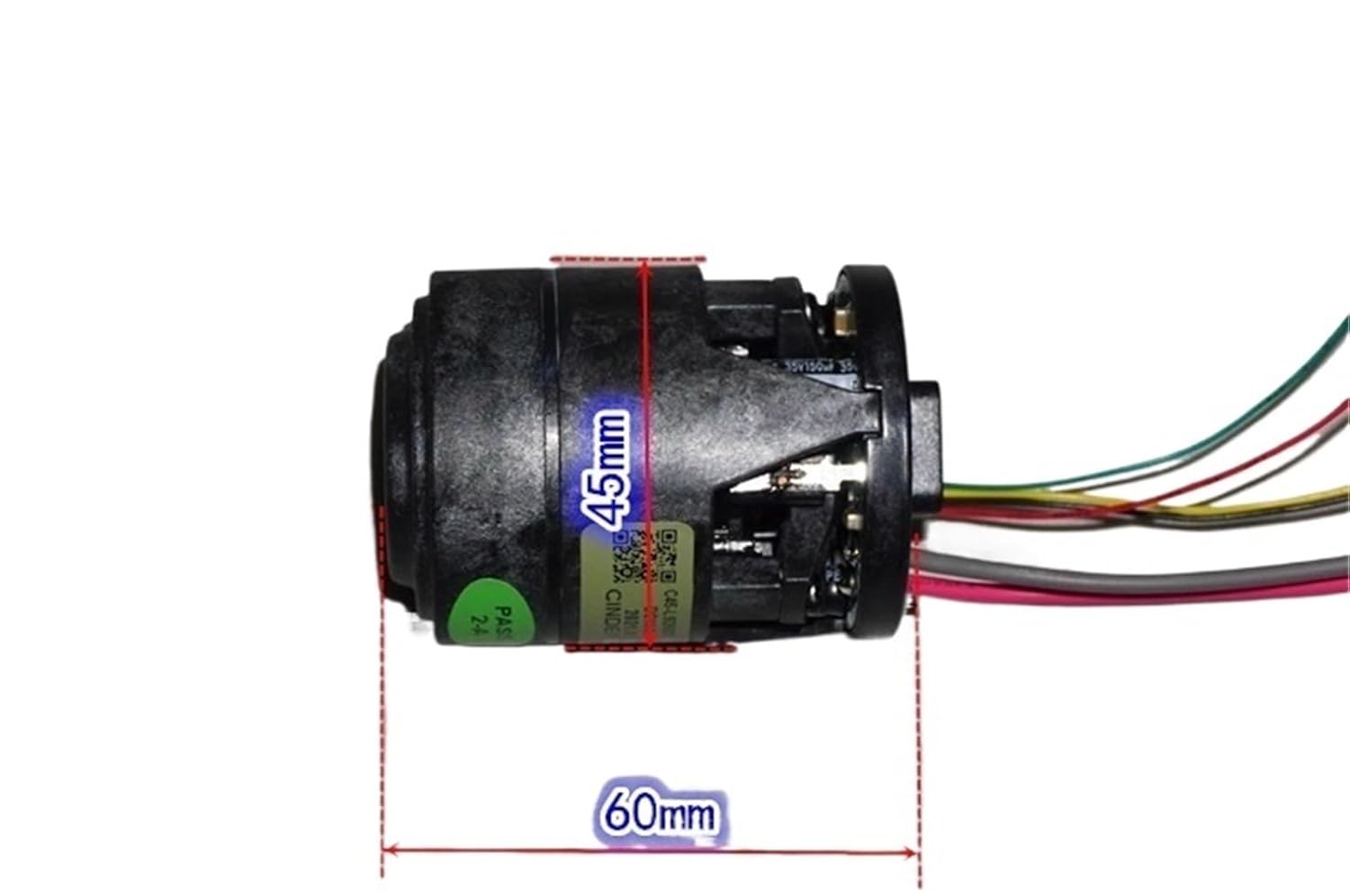

MotorsMotor casing label DC: 14.4V 90W(can be used between DC: 9.0V and 20V) The driver has limited output 90WViolent high-power vacuum cleaner brushless motor, please pay attention to safety when using!Please check if the protective casing of the fan is securely fastened when powered on,Do not open the metal casing of the fan!! To prevent being cut by high-speed blades!!!Product Description of 45mm Three-Phase Brushless Turbine Vacuum BlowerCore ParametersSpecification: Brand-new stock high-speed model, approximately 45mm in diameter, weighing about 110 gramsVoltage & Power Rated at 144V 90W supporting a wide voltage range of 8520V; 75W at 8.5V, stable at 90W when voltage is above 10V, with an adjustable power range of 8-90WIf you want run the highest speed directlycan connect PWM wire to the positive pole.If you need Speed Regulation: Supports 18kHz PWM signal for stepless speed adjustment;Drive Configuration: Built-in brushless drive circuit; a speed control board needs to be purchased separately; wiring definitions are shown in the introduction picturePerformanceSuction Power: At maximum power, it can suck and lift a 450g heavy object, with strong suctionCurrent Test Results:8.5V: Maximum current 8.8A (75W)12V: Maximum current 7.6A (90W)14V: Maximum current 6.45A (90W)20V: Maximum current 4.4A (90W)Power Supply RecommendationsIt is recommended to use a supporting power supply with a current of about 10A, or power tools' power-type 18650 lithium batteries, aerospace model power batteries, etc., which are compatible with the wide-voltage feature.This blower combines advantages of high power, wide voltage adaptability, and flexible speed regulation, making it suitable for portable devices requiring strong suction or DIY scenarios.==========Hign-concerned Chemical : NoneOutput Power : 74.6-735(include735) : not clearModel Number : Brushless Motor FanContinuous Current(A) : 6AConstruction : Permanent MagnetProtect Feature : Totally EnclosedType : Micro MotorCommutation : BrushlessEfficiency : IE 1Origin : Mainland Certification : ,Use : Home Appliance
