Mini FPV DVR Module, Rechargeable Portable Audio Video DVR Recorder for RC FPV Car Boat, NTSC PAL Switchable, Support 32GB TF Card

Capture Your Flight, Analyze Your RaceThe Mini FPV DVR Module is the ultimate companion for RC enthusiasts. This Mini FPV DVR Module allows you to record your FPV feed directly, an essential tool for capturing race footage or recording the “last known location” in case of a crash.Rugged and LightweightAbandoning cheap plastic, this Mini FPV DVR Module features a precision-machined CNC Aluminum Alloy shell, which not only provides superior protection against crashes but also acts as a heat sink to keep the electronics cool. Its featherlight weight (24.5g) makes it ideal for micro and mini quads.Seamless IntegrationWith minimal latency and a quick 3-second system startup, you won’t miss the action. The Mini FPV DVR Module connects effortlessly between your FPV camera and video transmitter (VTX) or can be used on the ground station side.Technical SpecificationsVideo Input/Output: NTSC/PAL (Switchable); Impedance: 75Ω TypResolution: VGA (640480) / D1 (720480) / HD (1280*720)Frame Rate: 30 FramesVideo Format: AVI (MJPEG compression)Audio: ON/OFF Selectable via MenuStorage: Supports TF Card up to 32GB (Card not included)Battery: Built-in 3.7V / 400mAh Li-PoWorking Time: Approx. 1.5 - 2 HoursCharging: 5V DC via Micro USB (500mA Max)Menu Languages: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian, Korean.Dimensions: 53mm x 33mm x 9mmOperating Temp: -10~60℃Interface Guide:AV In: 3.5mm jack (Connect to Camera/Receiver)AV Out: 3.5mm jack (Connect to VTX/Monitor for Playback)Charging: Micro USB PortPackage Includes1 x FPV Mini DVR Module2 x AV Cables1 x Hook and Loop Fastener for Mounting1 x Storage Box(Memory Card Not included)

• HIGH-QUALITY RECORDING & PLAYBACK: Mini FPV DVR Module supports switchable NTSC/PAL video input/output to match your existing FPV camera gear; records in AVI format with selectable resolutions: HD (1280720), D1 (720480), or VGA (640*480) at 30 frames per second; features a built-in video encoder/decoder, allowing for immediate playback via CVBS output

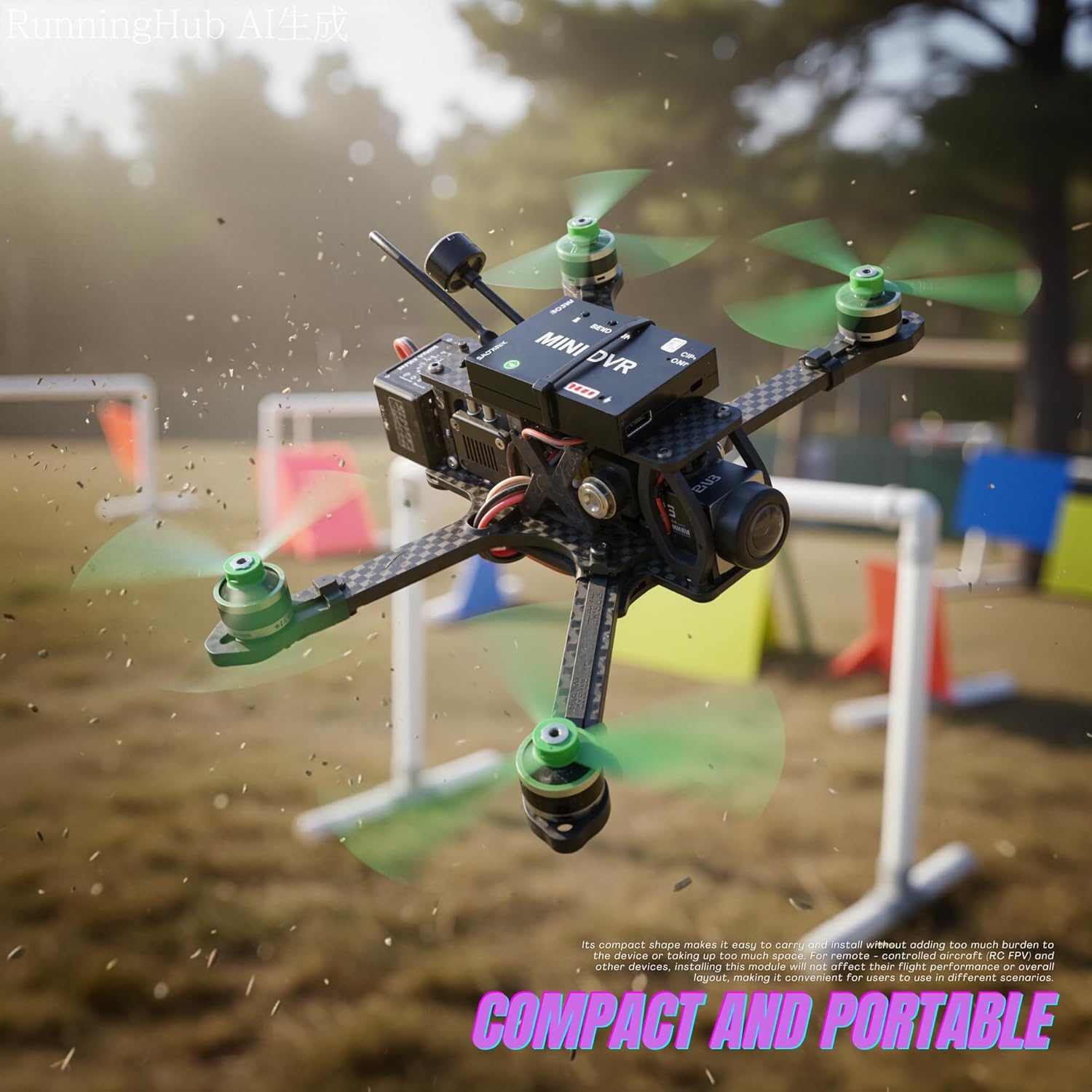

• ULTRA-COMPACT & DURABLE CNC BUILD: Mini FPV DVR Module encased in a premium aluminum alloy shell is capable of excellent heat dissipation and shielding, measuring just 53x33x9mm and weighing only 24.5g, perfect for weight-sensitive FPV and RC without affecting flight performance or balance

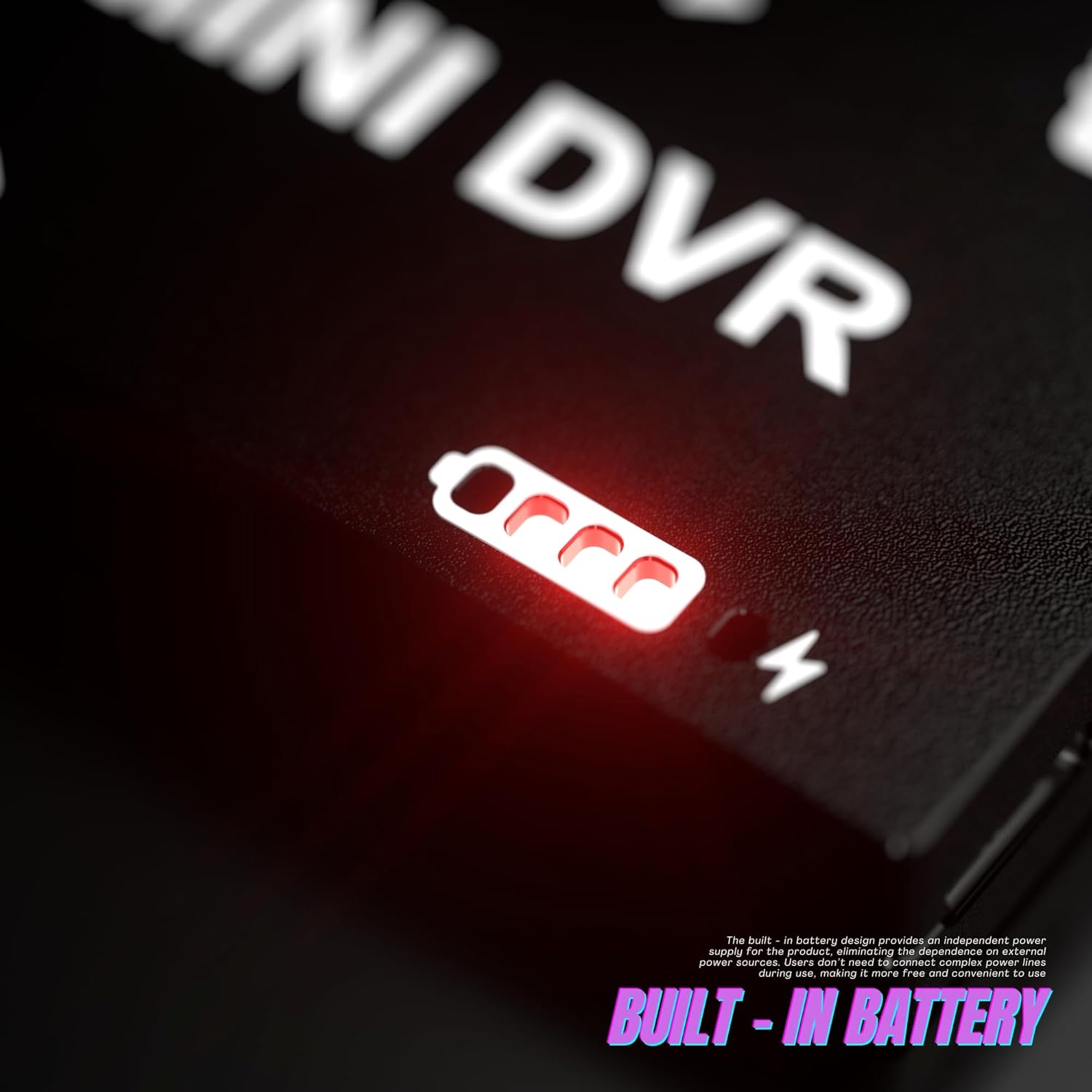

• LONG BATTERY LIFE & LOW POWER: Equipped with a 3.7V 400mAh Li-Po battery, providing 1.5 to 2 hours of continuous recording time, Mini FPV DVR Module is energy-efficient with a low working current of 200mA, with a high-accuracy 4-level battery power indicator to keep you informed of real-time status
• VERSATILE FEATURES: Mini FPV DVR Module offers a user-friendly interface with 11 menu languages (English, French, German, Spanish, etc.), and supports Loop Recording (10/20/30 min intervals) and Audio Recording (On/Off selectable)
• EASY SETUP & STORAGE: Designed for plug-and-play use with a standard 3.5mm AV jack for audio/video input and output, Mini FPV DVR Module supports TF/MicroSD cards up to 32GB (not included), and it comes in a durable storage box for safe transport
