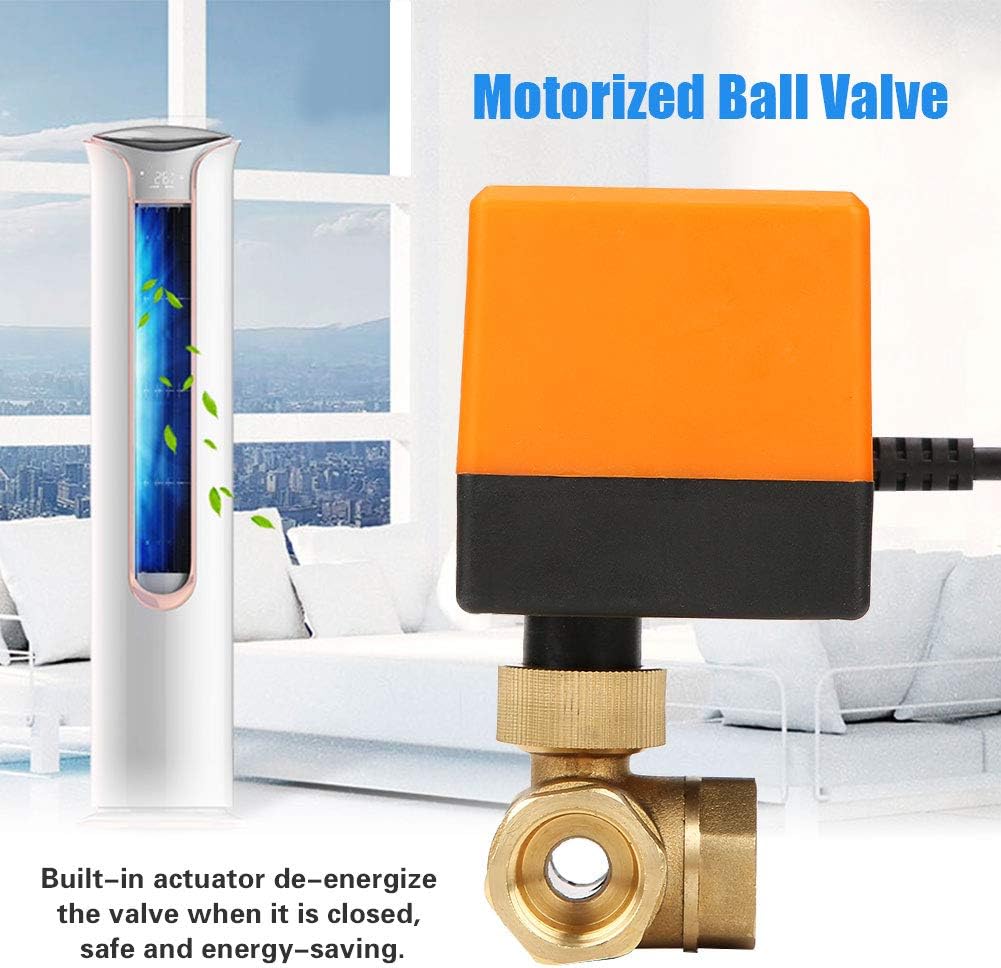

Motorized 3 Way DC 12V Brass Ball Valve - G1/2 DN15 Thread Connection, Control Switch
4.7 (76 items)
Limited Time Sale$14.35 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211105255 | Release Date | 2026/04/04 | List Price | $9.56 | Model Number | 211105255 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Sealing Material: Special RubberDriver Base Material: Die-Cast AluminumDriver Cover Material: Flame Retardant ABS Engineering PlasticsDriver Motor: Hysteresis Synchronous MotorPower Consumption: 7.5VAValve Body Pressure: 1.6MpaAllowable Pressure: 0.13MpaApplicable Medium: Cold Water, Hot WaterApplicable Medium Temperature: 2-95Applicable Environment Temperature: 0-60Open Time: About 10 secondsClose Time: About 5 secondsValve Connection Mode: G1/2Weight: Approx. 517g / 18.2ozHeight: Approx. 12cm / 4.7inDiameter: Approx. 2cm / 0.8in Package List:1 x Motorized Ball ValveInstallation and Commissioning:1. Before the installation must carefully read the instructions, cut off the power and must be installed by professionals.2. direction must be the same as the direction of the arrow on the valve body.3. The valve body must be located the fan water tray, to ensure that the drip drop into the water tray.4. Valve body and driver must be installed in the vertical direction ±60° range, it should have at least 30mm space . 5. The building must maintain enough maintenance space, and must be installed in the maintenance that repairing person can reach. 6. Two and more than two of the electric valve can not be parallel, if the need for parallel relays to be separated.Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
- ★★★【High Quality】: The motorized ball valve is made of high quality brass, the ball valve is and reliable, the valve rod is 304 stainless steel material.
- ★★★【Ensure Safety】: Built-in actuator de-energize the valve when it is closed, and energy-saving.Accurate structure, tight close, no leakage.
- ★★★【Easy to Use】: The product little external space and can be installed on the wall.
- ★★★【Widely Applicable】: Mainly used for the fan coil and water control system of air conditioner.
- ★★★【Specification】: Size: Approx. 7 x 6.3cm / 2.8 x 2.5in; Model: DN15 3 Wire 2 Control; Valve Connection Mode: G1/2; Driver Operating Voltage:DC12V; Power Consumption: ≤7.5VA.
| UPC | 707300366194 |
|---|---|
| Size | 7 x 6.3 cm |
| Brand Name | Yanmis |
| Unit Count | 1.0 Count |
| Valve Type | Ball Valve |
| Thread Size | G1/2 |
| Thread Type | G1/2 |
| Manufacturer | Yanmis |
| Model Number | Yanmistpav8ok2mz |
| Material Type | Brass |
| Connector Type | Threaded |
| Exterior Finish | Abs,Aluminum,Rubber,Stainless Steel |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Ports | 2 |
| Maximum Pressure | 1600000 Pascal |
| Inlet Connection Size | 0.5 Inches |
| Inlet Connection Type | G Half |
| Outlet Connection Size | 0.5 Inches |
| Outlet Connection Type | G1/2 inch |
