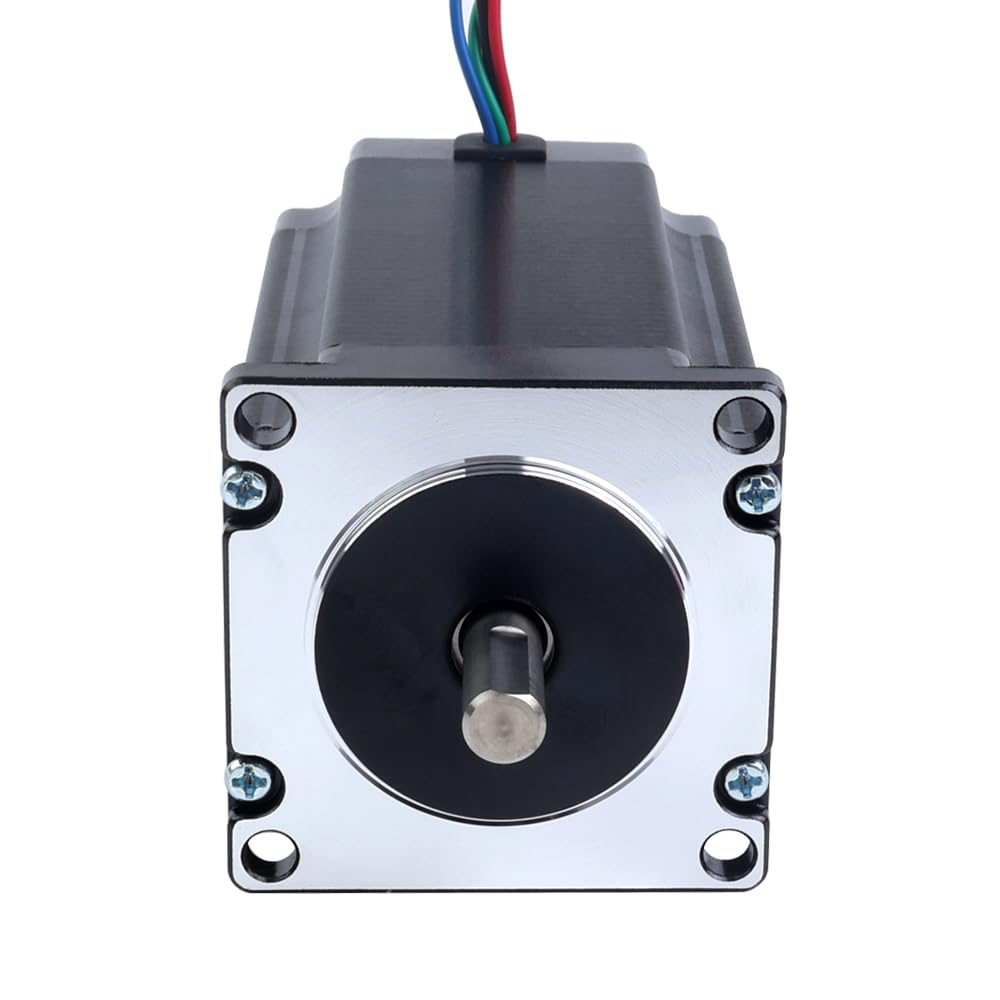

Nema 23 Stepper Motor 8mm Shaft Bipolar 3Nm 5A 57x57x100mm 4 Wires CNC 3D Printer
4.0 (48 items)
Limited Time Sale$20.10 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211760210 | Release Date | 2026/04/04 | List Price | $13.40 | Model Number | 211760210 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The NEMA 23 stepper motor has a rated current of 5.0A and a holding torque of 3.0Nm(424.83oz.in). With a step angle of 1.8 degrees and dimensions of 57x57x100mm, this 4-wire motor is ideal for precise positioning in various automation applications, offering reliable performance and robust torque output in a compact form factor. Electrical Specification Manufacturer Part Number: 23HS39-5004S Motor Type: Bipolar Stepper Step Angle: 1.8deg Holding Torque: 3.00Nm(424.83oz.in) Rated Current/Phase:5.0A Phase Resistance: 0.6ohms±10% Inductance: 2.8mH±20%(1KHz) Insulation Class: B 130°C[266°F] Physical Specification Frame Size: 57 x 57mm Body Length: 100mm Shaft Diameter: φ8mm Shaft Length: 21mm D-cut Length: 15mm Number of Cables: 4 Cable Length: 400mm Connection A+: Black, A-: Green, B+: Red, B-Blue
- Nema 23 Stepper Motor with φ8mm Shaft
- Holding Torque:3.00Nm(424.83oz.in), 24-48 VDC
- Rated Current/phase: 5.0A & Phase Resistance: 0.6ohms
- This nema 23 stepper motor is widely used in 3D printing machines, engraving machines, medical equipment, robots, automation equipment, household appliances.
| Brand Name | MybotOnline |
|---|---|
| Item Weight | 1.55 Kilograms |
| Manufacturer | OSM Technology Co., Limited |
