OV5640 USB Camera Module 5MP Fixed Focus 160 Degree Camera for Win XP Win7 Win8 Vista Mac Linux Android 4.0 Jetson Nano with Flash Microphone Support OTG Standard UVC Protocol Driver-Free
4.6 (54 items)
Limited Time Sale$19.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212169133 | Release Date | 2026/04/06 | List Price | $13.20 | Model Number | 212169133 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

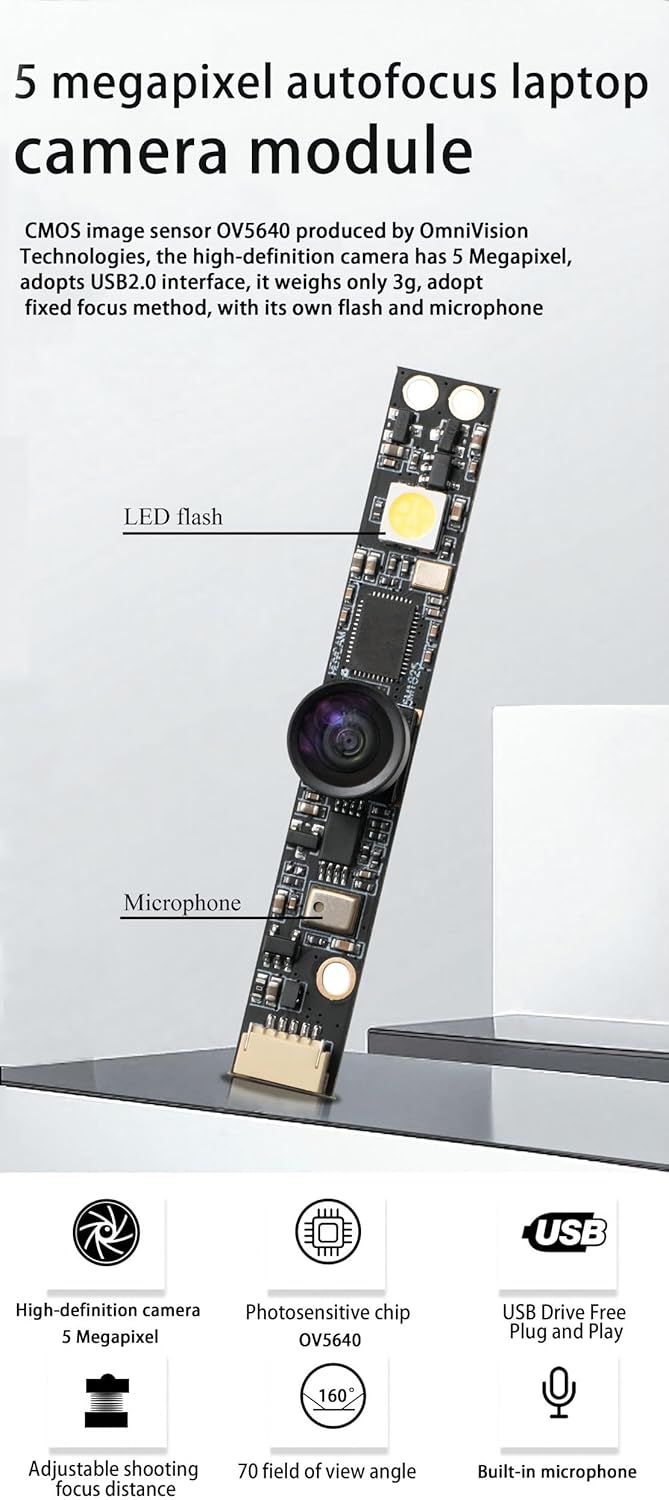

Overview: This mini usb camera module adopts the CMOS image sensor OV5640 produced by OmniVision Technologies. The HD camera has 5 Megapixel, onboard USB2.0 interface. It weighs only 3g, adopting fixed focus method, with its own flash and microphone, supporting Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0/Jetson Nano operating system. Specifications: Size: 62mm(Length)*9mm(Width)*10.7mm(High)±0.3mm Temperature (Operation): -30℃～70℃ Temperature(Stable Image): 0℃～50℃ Assembly Technique: SMT(ROSH) Focus: Fixed Object Distance: 30cm-infinity Resolution: 600LW/PH(Center) Interface: USB 2.0 Power Supply: USB bus power Supply Voltage: DC 5V±5% Maximum Power Consumption : 840mW Operating System Request: Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0/Jetson Nano Sensor: OV5640(1/4") Sensor Package: CSP, Bare Die Maximum resolution: 2592*1944 Sensitivity: 600mv/(lux-sec) Pixel Size: 1.4µm * 1.4µm Maximum Image Transfer Rate: MJPEG 1280x720 30FPS /YUY2 1280x720 12FPS MJPEG 1280x960 15FPS /YUY2 1280x960 5FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 6FPS MJPEG 1920x1080 30FPS /YUY2 1920x1080 6FPS MJPEG 2048x1536 15FPS /YUY2 2048x1536 2FPS MJPEG 2592x1944 15FPS /YUY2 2592x1944 2FPS S/N Ratio: 36db Max Dynamic Range: 68db Shutter type: Electronic rolling shutter AGC/AEC/Whiter Balance: Auto Output Formats: YUY2/MJPEG Microphone: Support Lens Construction: 2G2P F/No: 2.0 EFL: 1.66mm FOV: 160° TV Distortion: <8.5% Relative Illumination(Sensor): 70% IR Filter: 650±10nm Package: Anti-electrostatic tray Package Contents: 1.OV5640-U5M-160 (fixed focus) x1 2.USB to HX1.25-5P connecting cable x1
- The mini camera board is on-board CMOS image sensor OV5640, having ISP (image signal processing) functions
- This OV5640 fixed focus camera module is onboard USB2.0 interface directly plug and play, supports OTG protocol, standard UVC protocol, built-in Flashmicrophone
- This ov5640 camera module adopts high-definition 160° wide angle camera, 5 Megapixel fixed focus, 2592 x 1944 maximum resolution
- The HD USB camera module supports Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0/Jetson Nano operating systems, which can be customized and is highly compatible
- This OV5640 fixed focus camera module is only 3 grams. Small size is suitable for various industrial products and facecam
| Brand | xicoolee |
|---|---|
| Color | black |
| Autofocus | No |
| Flash Type | Internal |
| Focus Type | Fixed Focus |
| File Format | JPEG, MJPEG |
| Sensor Type | CMOS |
| Camera Flash | Built-In |
| Manufacturer | XICOOLEE |
| Optical Zoom | 1 x |
| Aperture Modes | fixed |
| Maximum Aperture | 2 f |
| Light Sensitivity | 100-400 |
| Compatible Devices | Various devices supporting UVC protocol |
| Hardware Interface | USB |
| Maximum Focal Length | 1.66 Millimeters |
| Video Capture Format | MJPEG |
| Warranty Description | 1 year |
| Exposure Control Type | Automatic |
| Maximum Shutter Speed | 1/4000 seconds |
| Connectivity Technology | USB |
| Flash Modes Description | Automatic |
| Photo Sensor Resolution | 5.1 MP |
| Focal Length Description | 1.66mm |
| Video Capture Resolution | 2K |
| Continuous shooting speed | 30 FPS |
| Effective Still Resolution | 5 MP |
