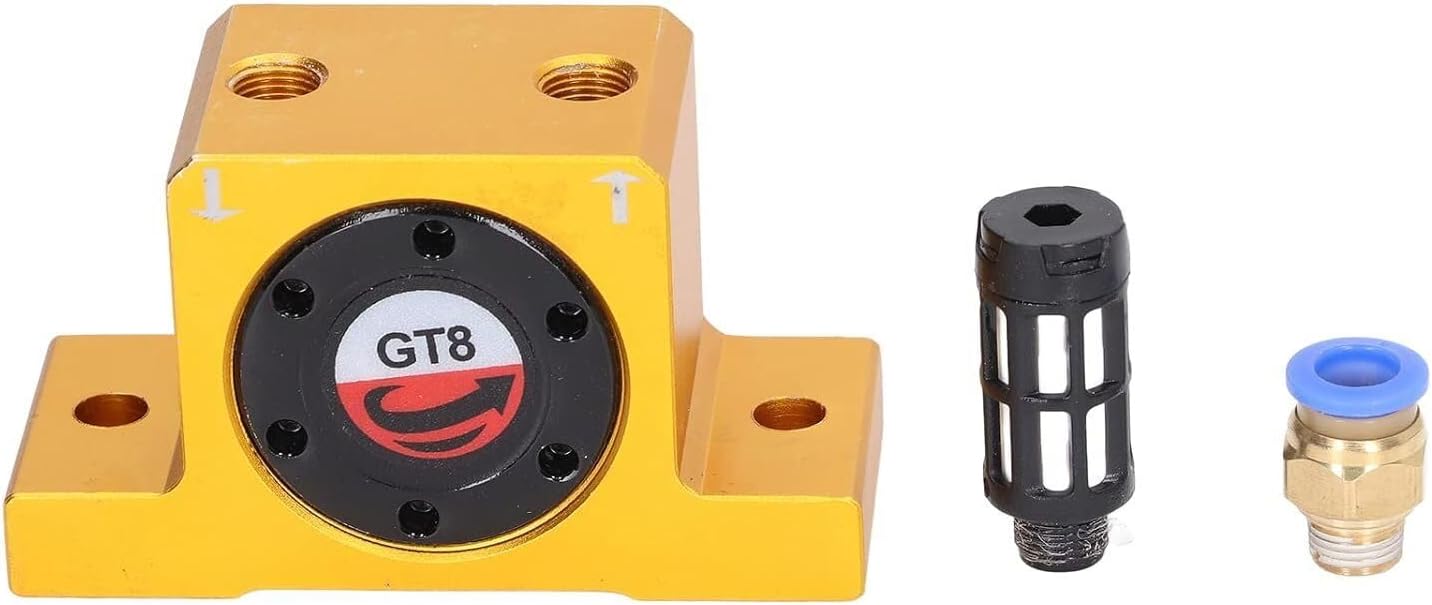

Pneumatic Vibrator Power, Industrial Turbine Vibrators with Silencer,Thread Air Turbine Vibrator, Aluminum Alloy Air Turbine,GT- Series wheel type vibrator GT-8/10/13/16/20/25/32 (GT-32)

Industrial Pneumatic Compressed Air Power Turbine Wheel Type vibrator ,Pneumatic Turbine Vibrators, Aluminum Alloy Turbine Pneumatic Vibrator ,GT- Series A high speed range and eccentric working moments are combined in these Vibrators to produce a powerful vibration. The pneumatic turbine vibrators body is made from an extruded stove enamelled aluminium section and the hard coated end plates enables the vibrator to be used in the food and pharmaceutical industries. Turbine type pneumatic vibrator is widely used in material conveying, vibration screening, hopper vibration and other industries. Feature: 1.Turbine type pneumatic vibrator 2.No lubrication only clean air is required 3.Compact size, Low noise 60~75dBA Design: The vibration is produced by the centrifugal force of the positive and negative unbalance Moments in the rotor,the rotor is supported on two heavy duty, pre lubricated, matched Shielded ball bearings, A special long life grease ensures a long working life. The inner and outer raceways of the bearings are designed so that the bearings can be easily Replace using only a pin-wrench.The end plates are fitted with right-and-left-hand threads and self-locking. Product Parameters: Type: Turbine type vibrator Model: GT- Series (GT-8/10/13/16/20/25/32) Material: Aluminum Alloy Surface Treatment Process: Spraying Plastics Color: Yellow Noise Level Range: 60-75db Maximum Service Temperature: 120℃ Vibration Power: 1400N-3730N Using Air Pressure: 0.2MPa-0.6MPa Nominal Frequency: 5800-9700 Cycles Per Minute Package Included: 1 x Pneumatic Industrial Turbine Vibrator

• ✔️High-Speed, Powerful Vibration: Our Pneumatic Vibrator Power unit combines a high-speed range with eccentric working moments to deliver a robust and powerful vibration. This makes it highly effective for various industrial applications.
• ✔️Wide Application: Suitable for material transport, vibration screening, hopper vibration, to help fill the packaging, casting sand mold vibration, widely used in food, medicine, chemicals, pesticides, feed, ceramics, glass, cement, fuel and other powder processing industry
• ✔️ Powerful and Whisper-Quiet Operation: Engineered for a super sound-off experience, our industrial turbine Vibrators within an ultra-low noise range of 60-75 decibels (db). Despite its powerful performance, it maintains a remarkably quiet operation, providing a conducive and comfortable work environment.
• ✔️ Compact and Efficient Design: With a compact size, this pneumatic vibrator power unit is designed for ease of installation and versatile application. Its efficient design allows it to deliver powerful vibrations while maintaining a compact footprint.
• ✔️ Easy Maintenance: This turbine-type pneumatic vibrator requires no lubrication; only clean air is needed for efficient operation. This feature simplifies maintenance, making it a hassle-free and cost-effective solution for your industrial needs.
