RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
4.6 (65 items)
Limited Time SaleUntil the end
13
23
25
$317.40 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $529.00
Product details
| Management number | 210157145 | Release Date | 2026/04/02 | List Price | $211.60 | Model Number | 210157145 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ✅【CNC 4th axis】Product Model: 5M-H100-4-130A(B); Chuck type: K11-130mm 3-jaw centring chuck; Centre height: 100MM; Total height: 165MM; Through-hole diameter: 30MM; Angle: 0.45 degree/step; Deceleration ratio: 4:1 (synchronous belt deceleration mode); Synchronous belt: 5M-450 (width 15MM).
- ✅【K11-130mm three-jaw centring chucks】Maximum input torque: 100N.m; Limit speed: 3000r/min; Maximum static clamping force: 17KN; Positive jaw clamp: 3-40mm; ; Positive jaw support: 40-130mm; Reverse Jaw Clamp: 40-120mm; Mounting screw: M8.

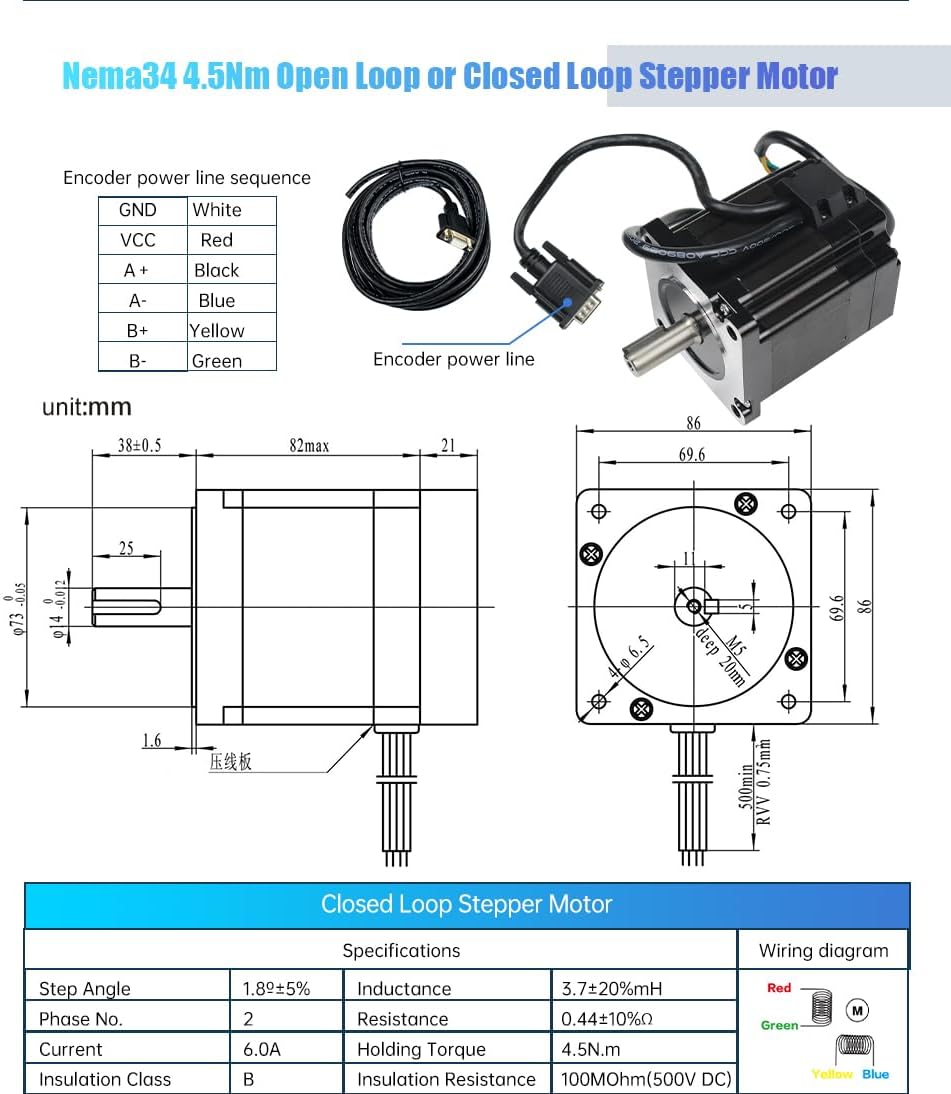

- ✅【4.5N.m Closed Loop Servo Motor】Size:86x86x82mm; Current :6.0A; Phase:2; Step Angle(degrees):1.8 degree; Lead wire:4pcs; Holding Torque:450Ncm; Resistance:0.44±10%Ω; Inductance:3.7±20%mH; Insulation resistance:100MOhm(500V DC); Insulation Class:B.
- ✅【2HHS86 Servo Motor Driver 】Voltage range: AC24-70V or DC30-100V; Peak current :Peak 8.0A; Logic input current:7-20mA; Frequency:0-200KHz; Encoder lines:1000; Insulation resistance:>=500MΩ; Operating temprature:0~50℃; Virbration:5.9m/s2Max.
- ✅【Features】High tensile strength, local secondary hardening, surface fine grinding, rust and corrosion prevention; Dust-proof design, streamlined structure, easy maintenance; Use a variety of machinery and equipment, high clamping force, repeatable centring accuracy.
| Brand Name | RATTMMOTOR |
|---|---|
| Item Weight | 15.77 Kilograms |
| Manufacturer | RATTMMOTOR |
| Model Number | K11-130MM-4.5NM |
| Power Source | Corded Electric |
| Included Components | K11-130mm Chuck Dividing Head+4.5N.m Closed Loop Servo Motor+2HSS86 Driver |
| Manufacturer Part Number | K11-130NNEMA34-HU |
