rc Drone with Camera GHF411AIO F4 Flight Controller AIO Betaflight OSD 2-4S BLHELI_S 20A / 30A ESC Brushless for 3-5'' Mini RC Drone Quadcopter 30A KSX3826
4.7 (46 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 213546459 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213546459 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

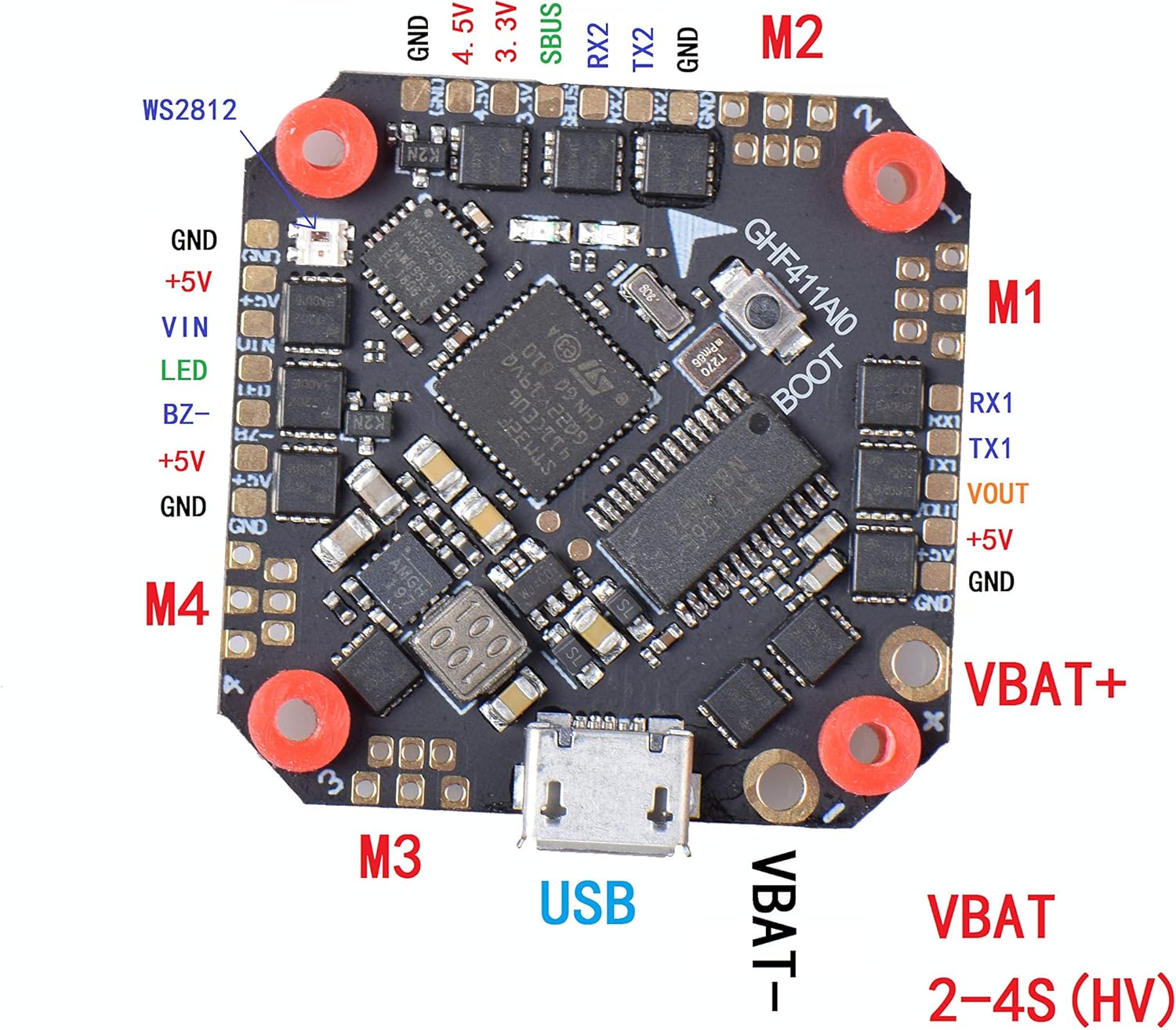

Description:Name: Flight Controller Flight control parameters CPU: STM32F411CEU6 (100MHZ) Six axes: MPU6000 (SPI connection) Size: 32.5 * 32.5mm (25.5mm mounting hole) Firmware version: Betaflight MATEKF411 (MK41) OSD: Built-in BetaFlight OSD (OSD chip: AT7456E) Receiver: Support Frsky XM / XM + receiver / Futaba receiver / Flysky receiver / TBS Crossfire receiver / DSMX receiver Supports WS2812 and other programmable LEDs Built-in current sensor Weight: 6.3gESC parameters Support BLheli / BLHELI_S Supports PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 Input voltage: 2S-4S Lipo Continuous current: 20A / 30A (two models are optional) Firmware: BLHELI_S Motor connector: 1.25mm pin headerPackage list:1*toothpick GHF411AIO 2-4S brushless flight controller2*power cable + (30A with XT60, 20A with XT30)4*shock-absorbing rubber shock absorbers4*motor pluggable pin baseNote: Please make sure the model matches your device before purchasing.
- Can handle 20A / 30A4 continuous current.
- With 4 motor pluggable pins, not pre-welded by default, best suited for your self-assembly needs.
- Compatible with 120X, 130X and 140X motors.
- The USB port is mounted on the side, you have more installation possibilities.
- All welded ports are on the edge of the flight controller, which makes it easy to solder.
| Color | 30a Ksx3826 |
|---|---|
| Material | Rubber |
| Brand Name | Thboxes |
| Part Number | DB305FC593C84E1C |
| Manufacturer | Thboxes |
