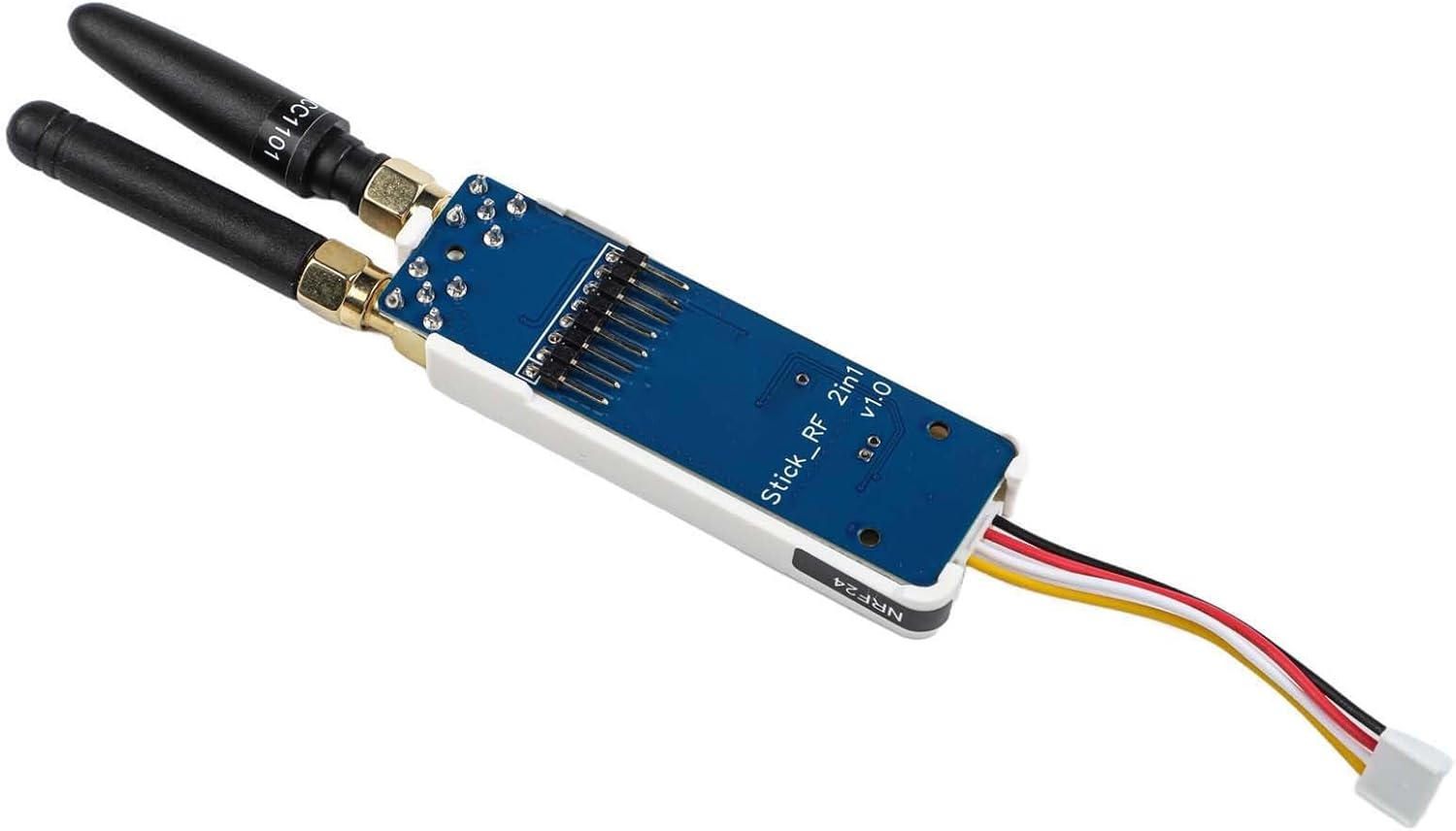

RichVibe IoT Module 2-in-1 RF CC1101 NRF24 for M5Stack StickC PLUS2 with Switch Antenna Grove Cable(with shell)

Features:for M5Stack for StickC Plus 2 2-in-1 RF module with housing. Bruce firmware compatible. To use this board with the for StickC Plus 2, flash the Bruce firmware yourself.2-in-1 RF module, including the CC1101 and NRF24.for NRF24 module, implements the for NRF24 .CC1101 module implements SubGHz signal reception and transmission.This board includes a physical switch for switching between the two RF modules.Specifications:Part Name: for Compact IoT ModuleMaterial: As shownColor: As shownsize: As shownCompatible Products: for StickC PlusInstructions:1. Flash Bruce Firmware (First-Time Setup) To use this board with the for StickC Plus 2, please first flash the Bruce firmware. Follow the instructions to select the correct device (for StickC Plus v1.1/v2) and complete the flashing process.2. Hardware Connection:Connect the for RF board to the for for M5Stack for StickC Plus 2 using a for Grove cable or for GPIO for .The for GPIO pins are pre-configured and compatible with Bruce firmware.3. Switching Between Modules:The board includes a physical switch for switching between the two for RF modules.Package Contents:1 *module2 *antennas1 *for Groove cable

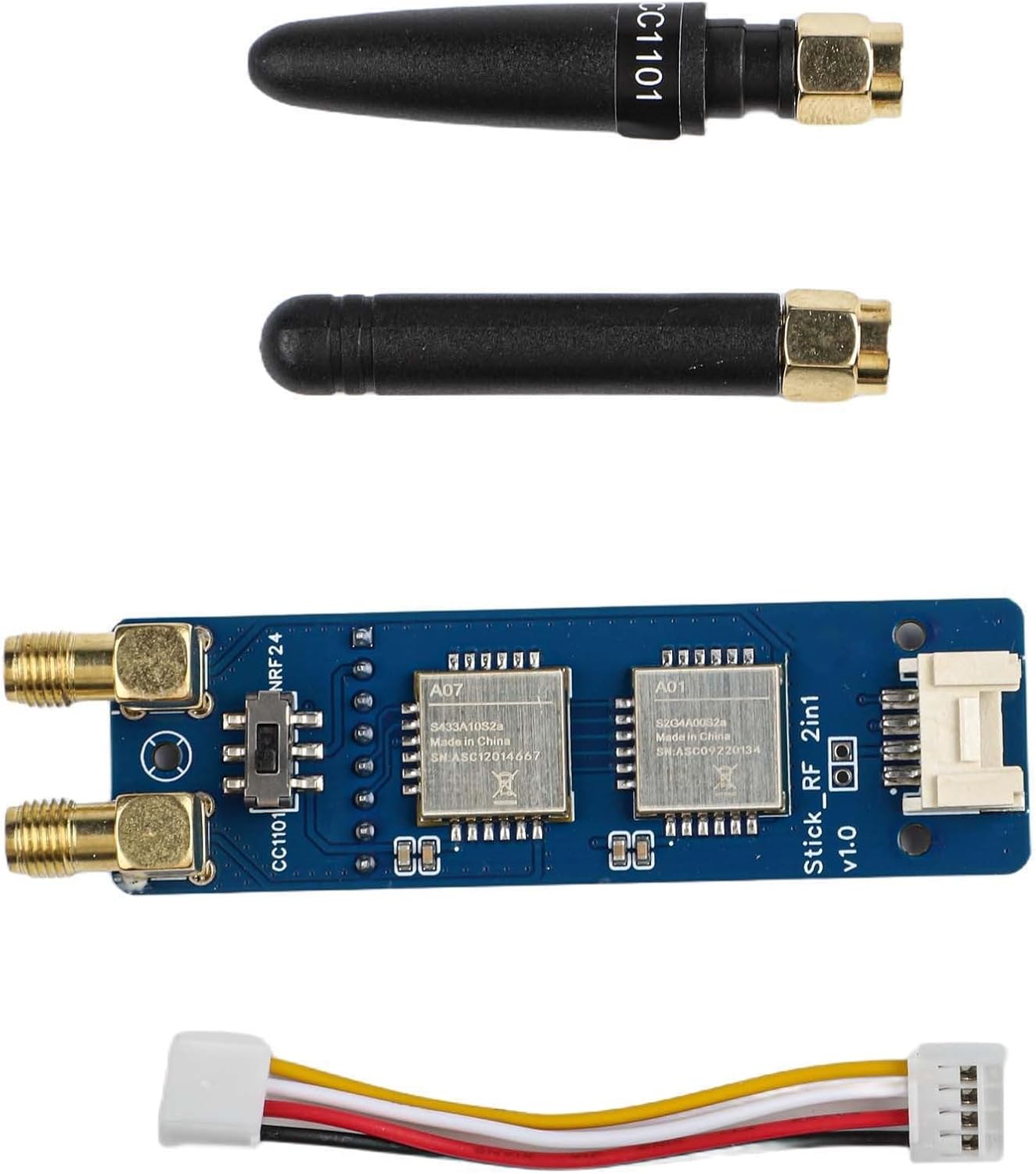

• [COMPLETE 2-IN-1 RF KIT] Package contains 1 Compact IoT Module, 2 antennas and 1 cable; dual-radio design combines CC1101 SubGHz transceiver and NRF24 radio to extend forPlus 2 wireless experimentation and prototyping.
• [SWITCHABLE DUAL RADIOS] Physical slide switch selects CC1101 or NRF24 hardware paths so you can change between SubGHz and 4GHz operation without rewiring.
• [PRECONFIGURED GPIO & CONNECTIVITY] Connect via forGrove cable or forGPIO ; forGPIO pins are preconfigured to match Bruce firmware pinout for reliable signal mapping.
• [COMPACT FORM FOR TESTING] Small footprint with two antenna ports makes this module for IoT development, RF learning, lab testing and field trials.
